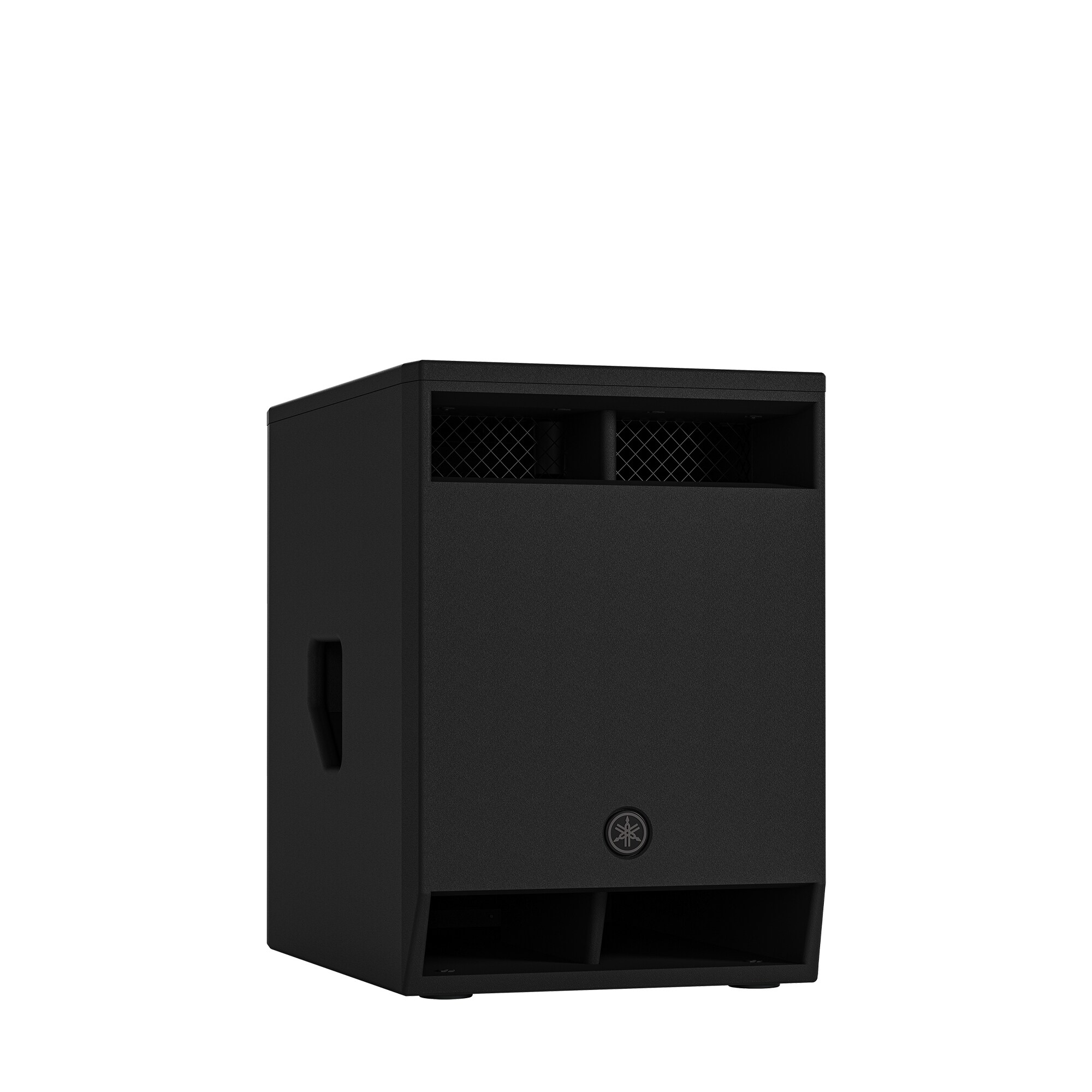

Yamaha CXS12 MK3

Passive subwoofer

12" passive subwoofer with band-pass construction for enhanced portability.
frequency response of 42 – 180 Hz, extended to 38 – 140 Hz.
power handling: 325 W RMS, 650 W program, 1300 W peak.
connectors: 2x SpeakON NL4MP for input/output.
dimensions: 400 × 567 × 570 mm; Weight: 32 kg.

898⁰⁹ €

Currently unavailable. Request details

Central warehouse: 0

Add to cart

4621 points of loyalty

Shipping free

Warranty 24 months

Returns 14 days

request details

Yamaha CXS12 MK3 Add to cart: 898⁰⁹ €

Yamaha CXS12 MKIII - 12" passive subwoofer with band-pass construction, designed for sound reinforcement applications where portability is important. It offers low-frequency extension through a band-pass design and is suitable for full-range systems. It can be easily integrated into mobile or fixed configurations.

Passive subwoofer, band-pass
Speaker: 12" woofer, 3" voice coil
Frequency response: 42 – 180 Hz (extended: 38 – 140 Hz)
Nominal impedance: 4 Ω
Sensitivity: 94 dB SPL (1W/1m)
Max SPL: 125 dB
Power: 325 W (RMS, noise) / 650 W (program) / 1300 W (peak)
Connectors: 2x SpeakON NL4MP (input/output)
Cabinet: plywood, polyurethane finish
Handles: 2 side
Mounting: flange Ø35 mm + M20 thread
Dimensions: 400 × 567 × 570 mm
Weight: 32 kg
Colour: black
