EUROLITE LED IP PAR 12x9W SCL Spot
Weather-resistant spot (IP65) with 12 x 7in1-LED and RGBA/CW/WW+UV colour mixing
- 12 powerful 9 W COB (chip-on-board) 7in1 SCL RGB/CW/WW/A/UV LEDs (homogeneous colour mix)
- Stepless colour mixing; adjustable colour change; adjustable fade; electronic dimmer
- Strobe effect
- Direct colour selection for 28 preset colours
- Operable in 3; 5; 7; 9; 13 CH mode
- Device is cooled by passive convection cooling
- Control via DMX; IR remote control; standalone
- Flicker-free
- With a beam angle of 15°
- With dual bracket
- LCD display
- Suitable for outdoor use
- Preprogrammed in Light´J; LED PC-Control 512; EASY SHOW 1; Light Captain; EASY SHOW 2; Easy Show 3
- Silent operation
- Power input and output for connecting up to 8 units
Package contents
- 1 x device, 1 x power cable, 1 x remote control, 1 x battery, 1 x user manual

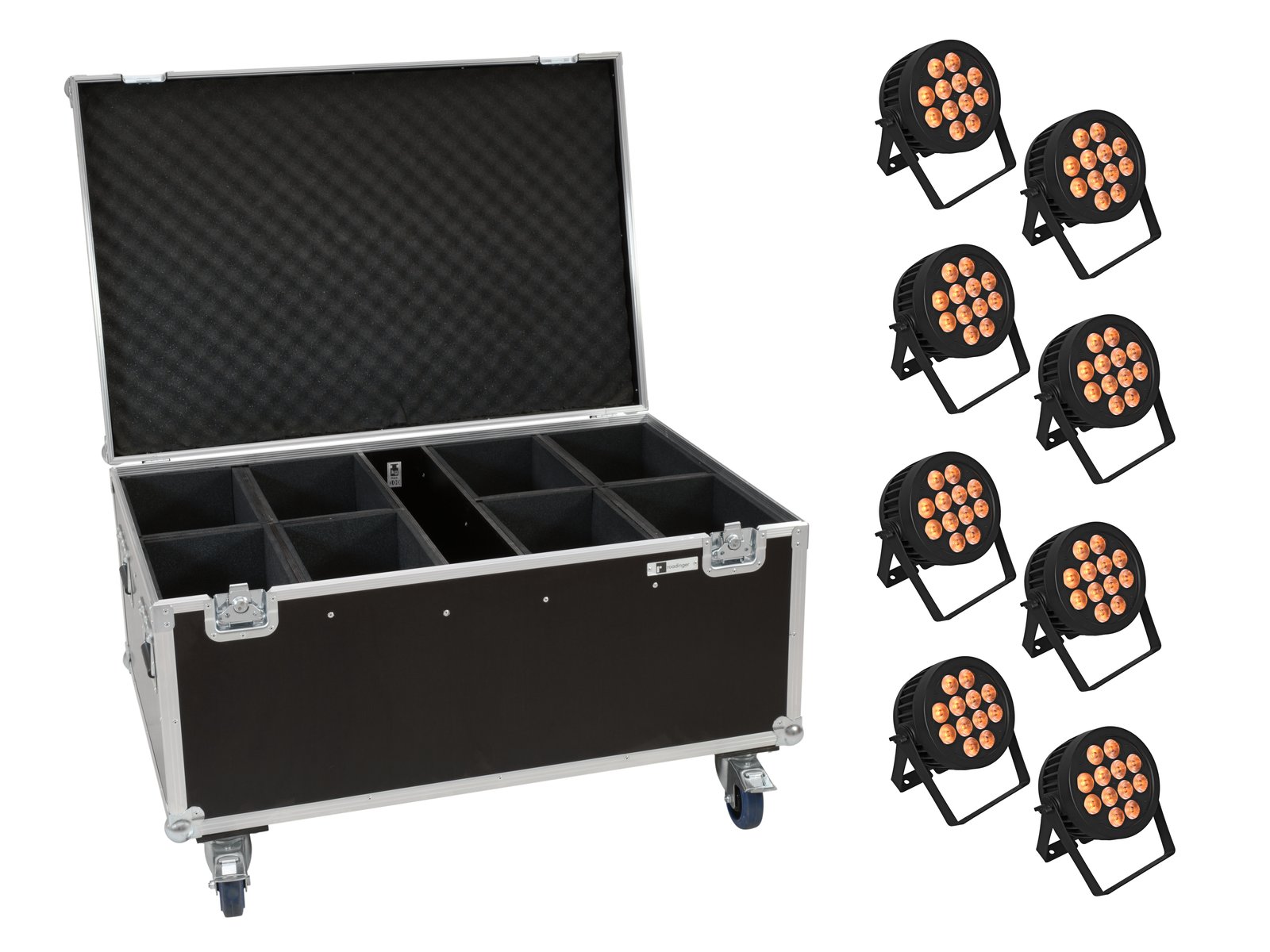

ROADINGER Flightcase 8x LED IP PAR 12x8W QCL/12x9 SQL Spot with wheels
Flightcase 8x LED IP PAR 12x8W QCL/12x9W SQL Spot with wheels
- High-quality workmanship with 9 mm birch multiplex,
- Interior with foam lining
- 25mm aluminium profile frames with rounded edges
- 4 chrome-plated case handles with hinges
- 2 chrome locks for overturning
- 2 high-quality butterfly locks
- 4 wheels with 2 locking brakes
- Branded hardware
- Made in Europe
Package contents
| Weight: | 70.00 kg |
| EUROLITE LED IP PAR 12x9W SCL Spot |
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 75 W |
| IP rating: | IP65 |
| Protection class: | Protection class I |
| Power connection: | Mains input via power cable with safety plug, IP T-Con (M) mounting version. |
| Output power: | IP T-Con (F) mounting version. |
| Lamp type: | LED lamp |
| LED: | 12 x 9 W COB (chip-on-board) 7in1 SCL RGB/CW/WW/A/UV (homogeneous colour mix) |
| Flash rate: | 0 - 20 Hz |
| DMX channels: | 3; 5; 7; 9; 13 |
| DMX input: | XLR (M) mounting version with 3 pins IP |
| DMX output: | XLR (F) mounting version with 3 pins IP |
| Cooling: | Passive convection cooling |
| Control: | DMX; IR remote control; standalone |
| Preprogrammed in: | Light'J; LED PC-Control 512; EASY SHOW 1; Light Captain; EASY SHOW 2; Easy Show 3 |
| Beam angle: | 15° |
| Beam angle (1/2 peak): | 15° |
| Beam angle (1/10 peak): | 29° |
| Case colour: | Black |
| Mounting system: | Dual bracket |
| Display type: | LCD display |
| Material: | Aluminium casting |
| Dimensions: | Width: 28.5 cm
Depth: 15.3 cm
Height: 31.35 cm |
| Weight: | 5.20 kg |
| Noise rating: | Class 0 (no noise) |
| Power cable |
| Cable construction: | 3 x 1.0 mm² H05RN-F |
| Cable length: | Approx. 1.2 m |
| Mounting bracket |
| Parts: | 2 Stk |
| Mounting hole diameter: | 3 x Ø11mm |
| Material: | Metal, 2.5 mm |
| Remote control |
| Battery: | 1 x 3.0 V CR2025 lithium manganese button cell built-in |
| Legal specifications |
| special product: | Not designed for household room lighting |
| Intended use: | Show effect lighting |
| ROADINGER Flightcase 8x LED IP PAR 12x8W QCL/12x9 SQL Spot with wheels |
| Maximum capacity: | 100 kg |
| Aluminium profile frames: | 25 mm |
| Case handles: | 4 pcs/piece |
| Stop hinge: | 2 pcs/piece |
| Lock: | Butterfly lock: 2 pcs/piece |
| Transport aid: | 4 x wheels with 2 locking brakes |
| Brand usage: | Branded hardware |
| Material: | Birch multiplex, 9 mm |
| Accessory compartment: | 10.5 cm x 63 cm x 33.5 cm |
| Device compartment: | 18.5 cm x 29 cm x 32.5 cm |
| Dimensions: | Width: 1 m
Depth: 67 cm
Height: 58 cm |
| Weight: | 28.40 kg |
