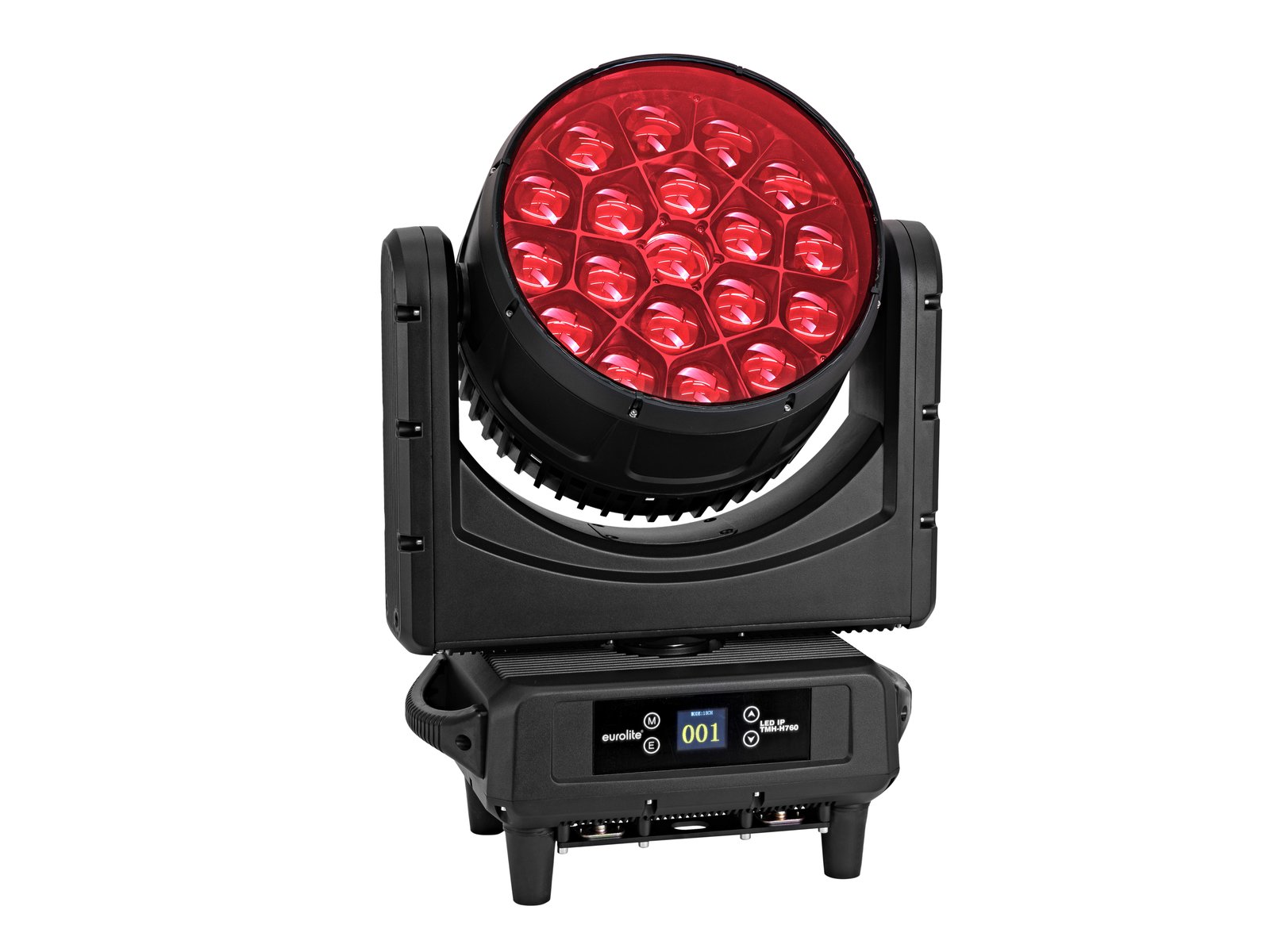

Eurolite LED IP TMH-H760 Beam/Wash/Flower effect

Washlight

19 powerful LEDs 40 W SMD 4in1 QCL RGBW (homogenous color mix)
LEDs controlled separately
positioning within 540° PAN, 210° TILT
auto position correction (feedback)
exact positioning (16 bit resolution)
zoom motor-driven rotating; lens rotation

1 957⁸⁴ €

Currently unavailable. Request details

Central warehouse: 0

Add to cart

Shipping free

Warranty 24 months

Returns 14 days

request details

Eurolite LED IP TMH-H760 Beam/Wash/Flower effect Add to cart: 1 957⁸⁴ €

Powerful weather-proof moving washlight with 19x 40W RGBW LEDs, rotating flower effect and pixel control

19 powerful LEDs 40 W SMD 4in1 QCL RGBW (homogenous color mix)
LEDs controlled separately
Positioning within 540° PAN, 210° TILT
Auto position correction (feedback)
Exact positioning (16 bit resolution)
Zoom motor-driven rotating; lens rotation
Flower effect; Strobe effect; Wash effect
With a beam angle of 2° - 30°
With bracket with hinged hooks
Multicolor LCD display
The device is cooled by temperature-controlled fan at the Head; cooling fan at the Base
For application areas such as: Stage; Rental
Application possibility: Standing; suspended
Color blend stepless; colors preset; pulse-width modulation
1 integrated show programs
Control via stand-alone; DMX; Master/slave function
Flicker-free
DMX fail mode (hold; null)
2 Rugged carrying handles
4 rubber feet
Mains input and output for power linking up to 3 units
Built with SEETRONIC connector
Suitable for outdoor use IP65
With pressure compensation membrane
Very quiet working noise

Package contents

1 x moving light, 1 x user manual, 1 x power cord, 1 x xLR cable

Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	780 W
IP classification:	IP65
Protection class:	Protection class I
Power connection:	Mains input via IP T-Con (M) power supply cord with safety plug
Cable construction:	3 x 1,5 mm² H07RN-F
Power output:	IP T-Con (F) mounting version
Fuse:	5 x 20 mm, T 8 A Fuse replaceable
Lamp type:	LED lamp
LED:	19 x 40 W SMD 4in1 QCL RGBW (homogenous color mix)
Max. TILT movement:	210° Exact positioning (16 bit resolution) Auto position correction (feedback)
Max. PAN movement:	540° Exact positioning (16 bit resolution) Auto position correction (feedback)
Flash rate:	1 - 20 Hz
Equipment:	Zoom motor-driven rotating; lens rotation
DMX channels:	18; 30; 94
DMX input:	3-pin XLR (M) mounting version IP 5-pin XLR (M) mounting version IP
DMX output:	3-pin XLR (F) mounting version IP 5-pin XLR (F) mounting version IP
Cooling:	2 x temperature-controlled fan at the Head 2 x cooling fan at the Base
Control:	Stand-alone; DMX; Master/slave function
Projection:	Flicker-free
DMX fail mode:	Hold; null
Beam angle:	2° - 30°
Beam angle (1/2 peak):	2 - 16°
Beam angle (1/10 peak):	7 - 30°
Illuminance in Lux (lx):	Narrow red (R) 1m: 13602 lx, 3m: 11354 lx, 6m: 4333 lx Narrow green (G) 1m: 31916 lx, 3m: 29390 lx, 6m: 9454 lx Narrow blue (B) 1m: 3891 lx, 3m: 3565 lx, 6m: 1777 lx Narrow cold white (CW) 1m: 52981 lx, 3m: 45405 lx, 6m: 14131 lx Narrow all 3m: 78579 lx, 6m: 27552 lx Wide red (R) 1m: 9199 lx, 3m: 1243 lx, 6m: 336 lx Wide green (G) 1m: 19373 lx, 3m: 2700 lx, 6m: 736 lx Wide blue (B) 1m: 2768 lx, 3m: 575 lx, 6m: 163 lx Wide cold white (CW) 1m: 29680 lx, 3m: 4088 lx, 6m: 1109 lx Wide all 1m: 56588 lx, 3m: 8061 lx, 6m: 2192 lx
Lamp life:	10000 h
Housing color:	Black
Attachment system:	Ø 50 mm 2x bracket with hinged hooks
Display type:	Multicolor LCD display
Carrying handle:	2 pc/pcs
Transport aid:	4 x rubber feet
Use of brands:	Built with SEETRONIC connector
Material:	Aluminum casting
Dimensions:	Width: 41,0 cm Depth: 24 cm Height: 55,5 cm
Weight:	24,60 kg
Noise classification:	Class 1 (very slight noise, suitable for noise-sensitive environments) depending on mode used; class 3 (clearly perceptible sounds)
Legal specifications
Special product:	Not designed for household room illumination
Intended use:	Show effect lighting
