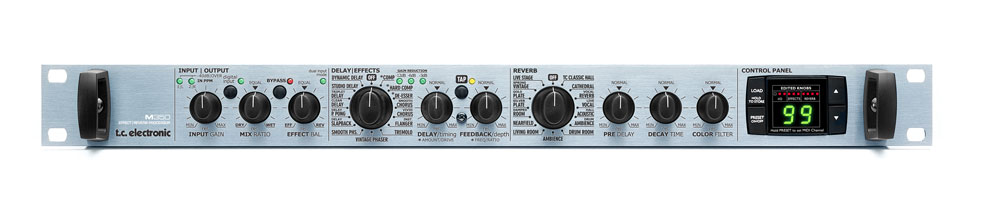

TC Electronic M350

TC Electronic M350 is an effects processor for studio applications and live. It consists of 2 processors at 24 bits, 15 effects on the reverb side and 15 effects such as delay, modulation, compression, etc.

The package also includes a software for editing parameters or controlling effects in real time.

Digital inputs and outputs:

• Connections: RCA Phono (S/PDIF)
• Formats: S/PDIF (24 bit), EIAJ CP-340, IEC 958
• Sample rate: 44.1 kHz. (48 kHz only on digital input)
• Processing delay: 0.08 ms at 48 kHz
• Frequency response DIO: DC - 23.9 kHz ± 0.01 dB at 48 kHz

Analog inputs:

• Connections: 1/4" phone jack, mono sense
• Impedance, Balanced/Unbalanced: 21 kOhm / 13 kOhm
• Max. input level / Min. at 0 dBFS: +24 dBu / 0 dBu
• Sensitivity range at 12 dB headroom: -12 dBu to +12 dBu
• A/D conversion: 24 bit, 128 x oversampling bitstream
• A/D delay: 0.70 ms / 0.65 ms at 44.1 kHz / 48 kHz
• Dynamic range: typ < -92 dB, 22 Hz to to 22 kHz
• THD: typ < -90 dB (0.0032 %) at 1 kHz, -1 dBFS
• Frequency response: +0/-0.1 dB, 20 Hz - 20 kHz
• Crosstalk: typ < -100 dB, 20 Hz - 20 kHz

Analog outputs:

• Connections: 1/4" phone jack
• Impedance, Balanced/Unbalanced: 40 Ohm / 20 Ohm
• Max. output level: +14 dBu
• D/A conversion: 24 bit, 128 x oversampling bitstream
• D/A delay: 0.68 ms / 0.63 ms at 44.1 kHz / 48 kHz
• Dynamic range: typ < -105 dB typ, 22 Hz - 22 kHz
• THD: typ < -97 dB (0.0014 %) at 1 kHz, +13 dBu
• Frequency response: +0/-0.5 dB, 20 Hz - 20 kHz
• Crosstalk: typ < -100 dB, 20 Hz - 20 kHz

Control interface:

• MIDI: In/Out: 5 Pin DIN
• Pedal: 1/4" phone jack
• Display: LED-indicators + 2 x 7 segments
• Dimensions: 483 x 44 x 105.6 mm
• Weight: 1.5 kg
