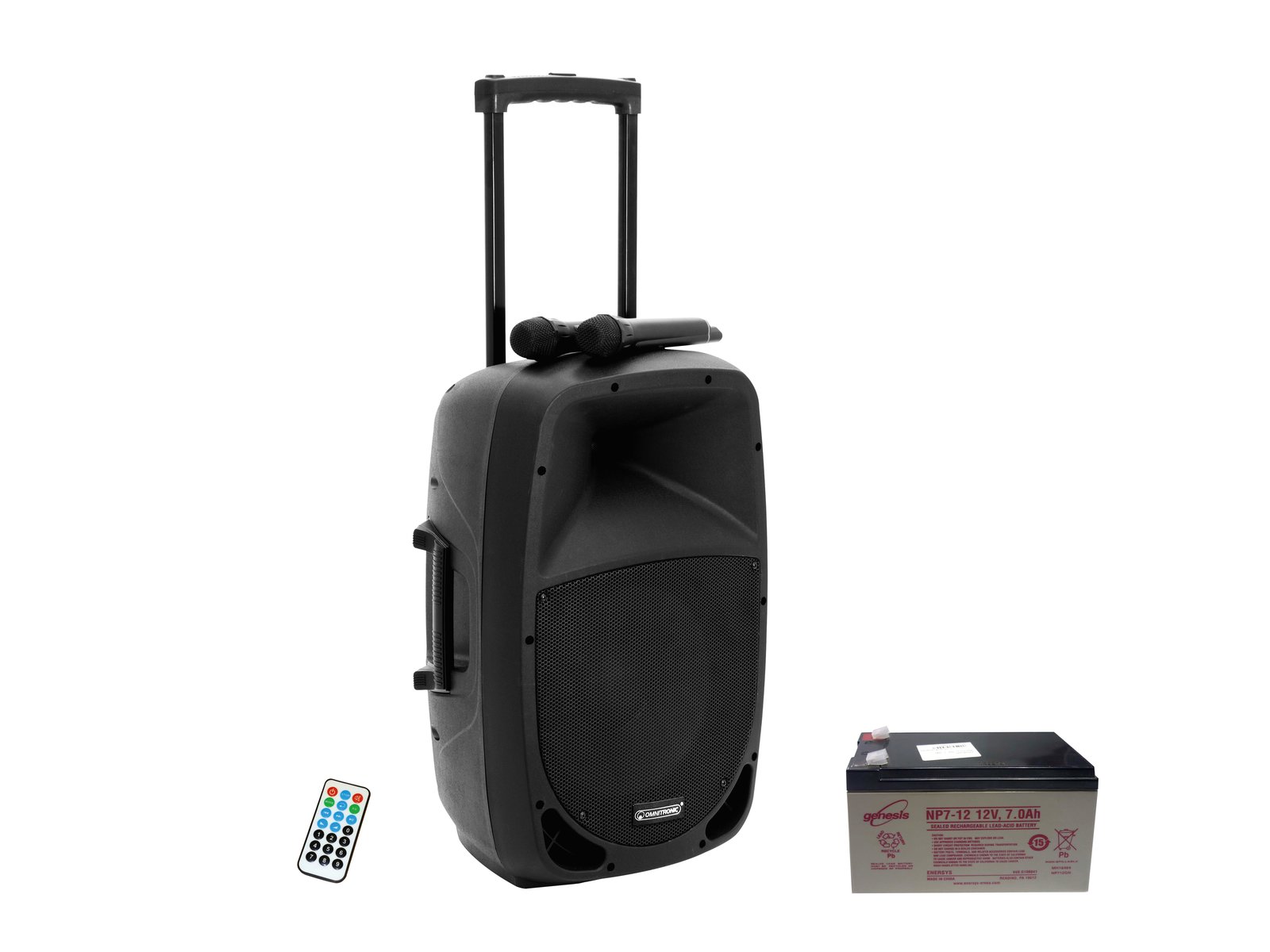

Portable 15" PA system with 2 UHF receiver units, audio player and Bluetooth including battery
Wireless PA system OMNITRONIC MES-15BT2
Portable 15" PA system with 2 UHF receiver units, audio player and Bluetooth
- All-in-one portable PA system with an output power of 45 watts
- Power mixer with 3 channels (45 W RMS) and speaker system with 2-way design featuring a 38 cm (15") woofer
- SD card slot and USB port
- Integrated Bluetooth audio streaming
- UHF receiver units and 2 suitable wireless microphones
- 2 mono microphone channels
- 1 stereo input channel for line signal sources, such as CD players and laptops
- Adjustable reverb effect for wireless microphones/microphone channels
- 5-band graphic EQ, master volume control
- 2 master outputs (mono)
- Terminals for operating an external 12 V battery (e.g., car battery)
- Battery operation up to 5 hours
- Cart
- For applications such as: Theatre; mobile use; Wedding/gala/events; product presentations and lectures
- Integrated automatic battery charging and status indicator
- Black metal grille
- 2 robust carrying handles
- Application possibilities: On feet; monitoring; on tripod
- Wireless, flexible and versatile
Cassette Player
- Control via Bluetooth; IR remote control
- 2.4 GHz license-free worldwide
- Bluetooth: operating range up to 10 m
Microphone
- Polar pattern: cardioid
- Operating range up to 30 m
Package Contents
- 1 x device, 2 x microphone, 2 x antenna, 1 x power cable, 1 x user manual, 1 x declaration of conformity, 1 x remote control, 1 x battery
ACCESSORIES 12V/7000mAh Battery
Maintenance-free lead-acid battery 7 Ah
- High energy density
- Long life
- Maintenance-free
- Leak-resistant sealed construction
- Wireless, flexible and versatile
| Weight: | 15.43 kg |
| Wireless PA System OMNITRONIC MES-15BT2 |
| Power supply: | 230 V AC, 50 Hz
Or
12 V DC |
| Power consumption: | 75 W |
| Output power: | Max. 90 W
45 W RMS |
| Power connection: | Network input via IEC (M) connector cable mounting version with safety plug (supplied)
Battery/battery pack (optional)
Network input via spring terminal |
| Battery type: | 1 x lead 12 V, 7000 mAh, 84 Wh |
| Battery: | Battery operation up to 5 hours
Recharge time 11h |
| Frequency range: | 60 - 19000 Hz |
| Sensitivity: | 90 dB (1W/1m) |
| Max. SPL: | 110 dB |
| Mounting system: | Bracket: Ø 35mm |
| Control elements: | Audio player, echo effect control |
| Status LED: | Power, clip, microphone, charge level |
| Connections: | Antenna via 2 x BNC (F)
Input: microphone via 2 x 6.3 mm jack plugs (mono) mounting version
Input: line via 1 x RCA stereo
Output: master via 1 x RCA stereo |
| Equalizer: | Master: 1 x stereo graphic equalizer with 5 bands
Centre frequency: 100Hz/330Hz/1.1kHz/3.3kHz/6.8kHz |
| Frequency selection: | Fixed frequencies |
| Speaker: | 1 x woofer (15") approximately 38 cm
1 x horn (1") approximately 2.5 cm |
| Speaker type: | Compact cabinet speaker |
| Carrying handle: | 2 pcs/piece |
| Transport aid: | Cart |
| Material: | Plastic |
| Colour: | Black |
| Weight: | 13.10 kg |
| Cassette Player |
| Control: | Bluetooth; IR Remote Control |
| Cassette Player: | USB + SD + Bluetooth |
| Music format: | MP3, WMA; WAV |
| Frequency band: | 2.4 GHz |
| Available storage media: | USB devices/SD cards max. 32 GB (FAT 32) |
| USB port: | Type A |
| Range: | Bluetooth: operating range up to 10 m |
| Microphone |
| Power supply: | 3 V DC |
| Power connection: | Battery/battery pack |
| Capsule type: | Dynamic |
| Polar pattern: | Cardioid |
| Battery: | 2 x Mignon (AA) (not included) |
| Carrier frequency: | 830 MHz; 864 MHz |
| RF output power: | 10 mW |
| Frequency stability: | ± 0.005 % |
| Range: | Operating range up to 30 m |
| Material: | Plastic |
| Dimensions: | Length: 25.5 cm
Diameter: Ø 5.2 cm |
| Weight: | 200 g |
| Remote Control |
| Battery: | 1 x Button cell 3.0 V CR2025 lithium manganese built-in |
| ACCESSORIES 12V/7000mAh Battery |
| Battery type: | 1 x lead 12 V, 7000 mAh, |
| Connections: | Flat plug 6.3 mm |
| Dimensions: | Width: 16.1 cm
Depth: 6.5 cm
Height: 10 cm |
| Weight: | 2.33 kg |
