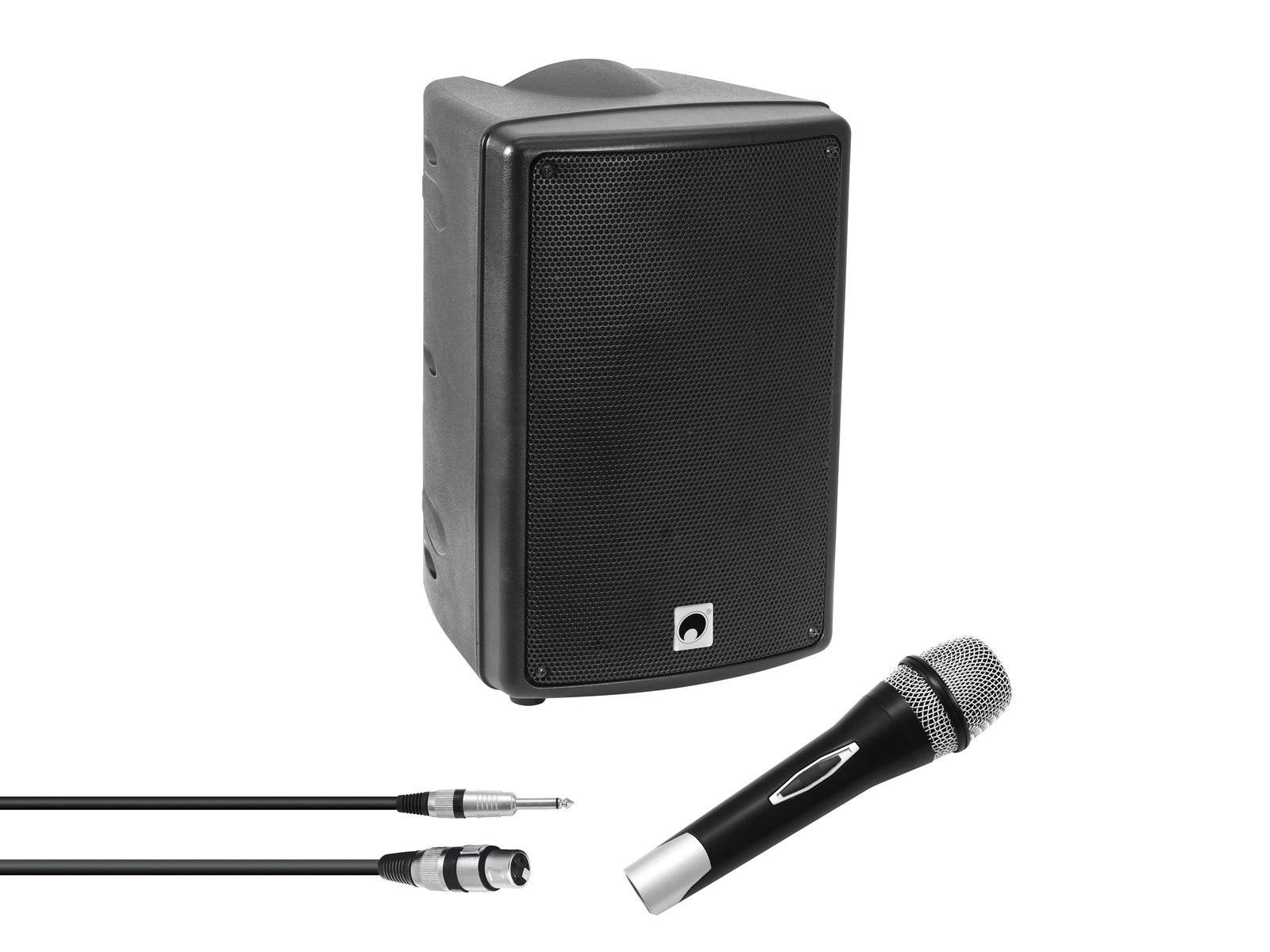

Mobile 8" PA system with battery operation, including dynamic partymic
Wireless PA system OMNITRONIC WAMS-08BT MK2
Mobile 8" PA system with battery operation, audio player, Bluetooth and wireless microphones (optional)
- All-in-one portable PA system with an output power of 40 watts
- Power mixer with 3 channels
- 2-way bass-reflex system
- MP3 player with SD card slot, USB input, LCD and IR remote control
- Integrated Bluetooth audio streaming
- USB dongle UWM-2HH with 2 wireless microphones available as an accessory
- The USB port can also be used to charge mobile devices
- 1 additional battery can be mounted later for up to 8 hours of operation
- 2 mono input channels for mic/instrument hi-Z with adjustable echo effect
- 1 stereo input channel for line signal sources, e.g. CD players and laptops
- Common EQ with 2 bands for high and low frequencies
- Suitable for applications such as: Theatre; mobile use; Wedding/gala/events; product presentations and lectures
- Black metal grille
- Handle for transporting the unit
- Application possibility: Standing; on tripod
- Tool-free battery replacement
- Integrated automatic battery charging and status indicator
Battery
- Battery operation up to 4 hours, depending on the programme used
- Wireless, flexible and versatile
Cassette player
- Control via IR remote; Bluetooth
- 2.4 GHz unlicensed worldwide
- Bluetooth: operating range up to 10 m
Remote control
- Operating range up to 10 m
Package contents
- 1 x compact speaker, 1 x power cable, 1 x battery, 1 x remote control, 1 x user manual, 1 x declaration of conformity
OMNITRONIC Partymic-1 dynamic microphone
Simple dynamic microphone, including XLR/jack cable
Package contents
- 1 x microphone, 1 x jack cable
| Weight: | 8.07 kg |
| Wireless PA system OMNITRONIC WAMS-08BT MK2 |
| Power supply: | 100-240 V AC, 50/60 Hz
Or
12 V DC |
| Power consumption: | 65 W |
| Output power: | 40 W RMS |
| Power connection: | Mains input via IEC connector (M) power cable mounting version with safety plug (supplied)
Battery/battery pack |
| Sensitivity: | 90 dB (1W/1m) |
| Max. SPL: | 106 dB |
| Attachment system: | Sirage: Ø 35mm |
| Control elements: | Echo effect control, audio player |
| Status LED: | Power, peak, microphone, charge level, pairing |
| Connections: | Input: line via mounting version 1 x 3.5 mm (stereo) jack.
Input: line via 1 x RCA stereo
Input: Mic/Hi.Z. via combined socket of 2 x XLR/jack 6.35 mm (F) with 3 pins (mounting version) |
| Channels: | Master output: 1 x stereo, channel control via rotary selector, EQ for tone control with 2 bands |
| Input channels: | 1 x stereo via RCA socket or jack or player, channel control via rotary selector
2 x mono with Mic-Hi.Z. switch via combined socket (XLR/jack), channel control via rotary selector |
| Available storage media: | USB devices/SD cards max. 32 GB (FAT 32) |
| Speaker: | 1 x woofer (8") approximately 20 cm
1 x Tweeter |
| USB port: | Type A |
| Speaker type: | Compact speaker for cabinet; Wireless PA system |
| Insert handle of the unit: | 1 pc/piece |
| Material: | ABS acrylonitrile butadiene styrene |
| Colour: | Black |
| Dimensions: | Width: 27 cm
Depth: 29 cm
Height: 42 cm |
| Weight: | 7.75 kg |
| Battery |
| Battery type: | 1 x lithium ion 11.1 V, 4000 mAh, 44.4 Wh |
| Battery: | Battery operation up to 4 hours, depending on the programme used
Recharge time 4h |
| Cassette player |
| Control: | IR remote control; Bluetooth |
| Cassette player: | USB + SD + Bluetooth |
| Music format: | MP3, WMA; WAV |
| Frequency band: | 2.4 GHz |
| Range: | Bluetooth: operating range up to 10 m |
| Remote control |
| Battery: | 1 x Button cell 3.0 V CR2025 lithium manganese built-in |
| Range: | Operating range up to 10 m |
| OMNITRONIC Partymic-1 dynamic microphone |
| Type: | Vocal microphone; Microphone for instruments |
| Cable length: | 3.3 m |
| Capsule type: | Dynamic |
| Polar pattern: | Cardioid |
| Frequency range: | 50 - 13000 Hz |
| Impedance: | 600 ohms |
| Connections: | XLR with 3 pins
6.3 mm (unbalanced) jack |
| Input sensitivity: | -55 dB |
| Transducer type: | Dynamic |
| Switch: | On/off switch |
| Dimensions: | Length: 18 cm
Diameter: Ø 5 cm |
| Weight: | 320 g |
