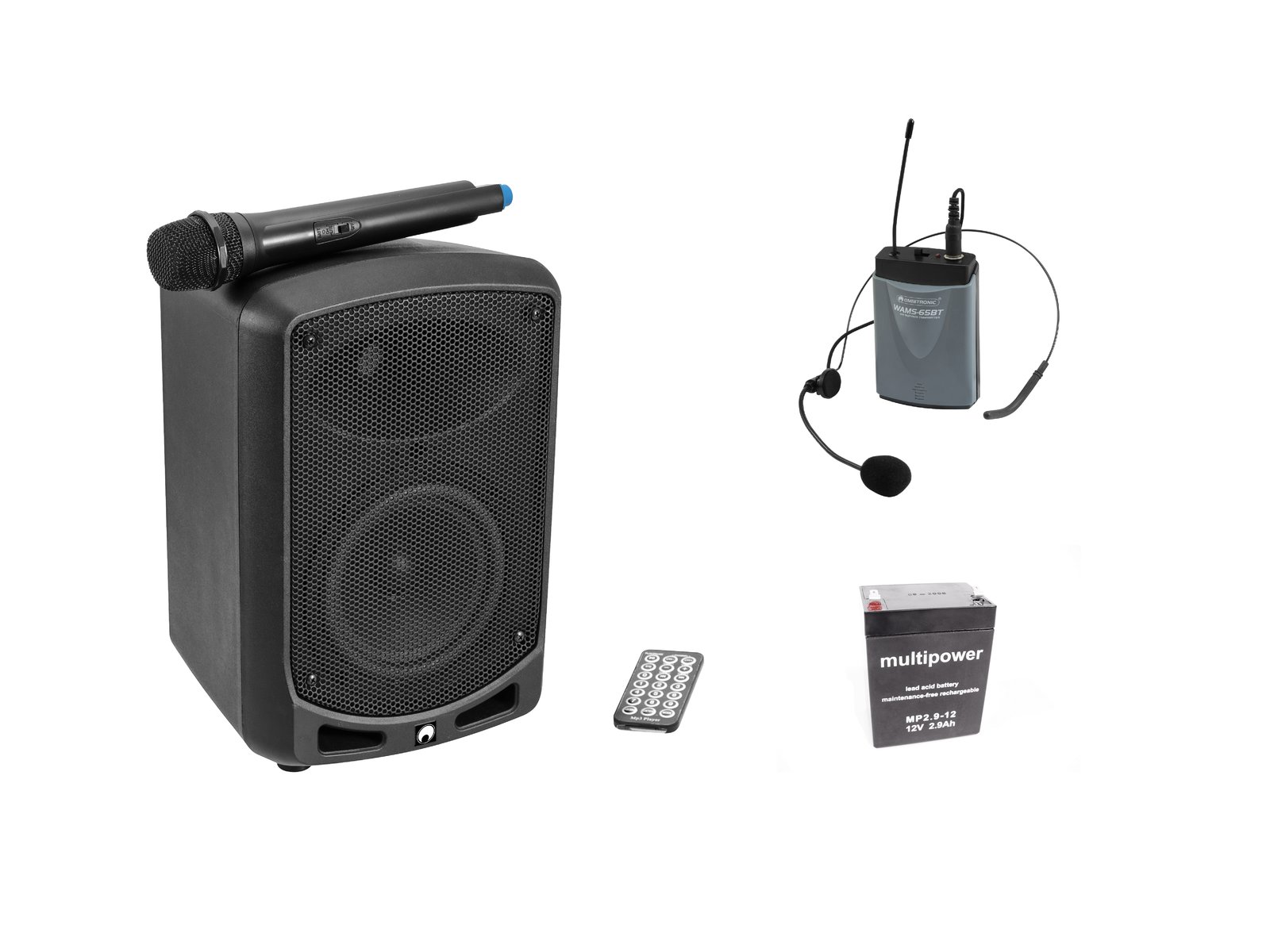

Portable 6.5" PA system with battery, including pocket transmitter with headset microphone
Wireless PA system OMNITRONIC WAMS-65BT
Portable 6.5" PA system with wireless microphone, audio player, Bluetooth and peak power of 40 W
- All-in-one portable PA system with an output power of 40 watts
- Power mixer with 4 channels
- Bass-reflex system with 2 ways
- SD card slot and USB port
- 1 microphone input (XLR) with adjustable reverb effect
- 1 line input (RCA)
- Tone control and master control
- UHF 863 - 865 MHz license-free and approved in Europe
- For applications such as: Theatre; mobile use; Wedding/gala/events; product presentations and lectures
- Black metal grille
- Robust carrying handle
- Integrated automatic battery charging
Battery
- Battery operation up to 4 hours
- Wireless, flexible and versatile
Cassette player
- Control via Bluetooth; IR remote control
- LED display with 4 digits and 7 segments
- 2.4 GHz license-free worldwide
- Bluetooth: operating range up to 10 m
Microphone
- Polar pattern: cardioid
- Operating range up to 30 m
Remote control
- Operating range up to 10 m
Package contents
- 1 x device, 1 x power cable, 1 x microphone, 1 x remote control, 1 x user manual, 1 x declaration of conformity
Bodypack transmitter OMNITRONIC WAMS-65BT incl. Headset
Bodypack transmitter with headset microphone for WAMS-65BT
- Mute function
- LED indicator for battery capacity
- With gooseneck microphone arm for precise positioning of the microphone capsule
- Single cable pass-through
- Operating range up to 50 m with line of sight
Package contents
- 1 x transmitter, 1 x microphone, 1 x declaration of conformity, 1 x user manual
Battery 12V/2900mAh WAMS-05 / WAMS-65
Package contents
| Weight: | 5.34 kg |
| Wireless PA system OMNITRONIC WAMS-65BT |
| Power supply: | 100-240 V AC, 50/60 Hz
Or
12 V DC |
| Power consumption: | 60 W |
| Output power: | 40 W RMS |
| Power connection: | Network input via IEC (M) connector power cable version with safety plug (supplied)
Battery/pack battery (not included) |
| Frequency range: | 62 - 18000 Hz |
| THD: | <0.5 % at 1 kHz |
| Mounting system: | Sirage: Ø 35mm |
| Circuits: | Class D |
| Control elements: | Echo effect control, audio player |
| Status LED: | Power, peak, ON AIR, signal, charge level |
| Connections: | Input: line via 1 x RCA stereo
Input: microphone via 1 x XLR with 3 pins
Output: line via 1 6.3 mm jack (unbalanced) |
| Input channels: | 1 x mono via XLR, channel control via rotary selector
1 x stereo via RCA, channel control via rotary selector |
| Frequency band: | UHF 863 - 865 MHz |
| Carrier frequency: | 865 MHz |
| Frequency selection: | Fixed frequencies |
| Speaker: | 1 x woofer (6.5") approximately 17 cm
1 x Tweeter (1") approximately 2.5 cm |
| Frequency stability: | ± 0.005 % |
| Speaker type: | Compact speaker for cabinet; Wireless PA system |
| Carrying handle: | 1 pcs/piece |
| Material: | ABS acrylonitrile butadiene styrene |
| Colour: | Black |
| Weight: | 4.15 kg |
| Battery |
| Battery type: | 1 x lead 12 V, 2900 mAh, |
| Battery: | Battery operation up to 4 hours
Recharge time 4h |
| Cassette player |
| Control: | Bluetooth; IR remote control |
| Cassette player: | USB + SD + Bluetooth |
| Display type: | LED display with 4 digits and 7 segments |
| Audio format: | MP3, WAV |
| Frequency band: | 2.4 GHz |
| Available storage media: | USB devices/SD cards max. 32 GB (FAT 32) |
| Range: | Bluetooth: operating range up to 10 m |
| Microphone |
| Power supply: | 3 V DC |
| Power connection: | Battery/battery pack |
| Capsule type: | Dynamic |
| Polar pattern: | Cardioid |
| Battery: | 2 x Mignon (AA) (not included) |
| RF output power: | 10 mW |
| Range: | Operating range up to 30 m |
| Switch: | On/off/mute switch |
| Material: | Plastic |
| Dimensions: | Length: 26 cm
Diameter: Ø 4 cm |
| Weight: | 115 g |
| Remote control |
| Power supply: | 3 V DC |
| Battery: | 1 x Button cell 3.0 V CR2025 lithium manganese built-in |
| Range: | Operating range up to 10 m |
| Bodypack transmitter OMNITRONIC WAMS-65BT incl. Headset |
| Type: | Backpack with microphone |
| Battery: | 2 x Mignon (AA) (not included) |
| Frequency range: | 40 - 18000 Hz |
| S/N ratio: | >105 dB |
| THD: | <0.5 % at 1 kHz |
| Connections: | 1 x 3.5 mm jack (mono) mounting version with screw thread |
| Carrier frequency: | 865 MHz |
| Frequency selection: | Fixed frequencies |
| Modulation: | F3F |
| RF output power: | 10 mW |
| Range: | Operating range up to 50 m with line of sight |
| Material: | Plastic |
| Dimensions: | Width: 6.4 cm
Depth: 3.6 cm
Height: 10 cm |
| Weight: | 90 g |
| Microphone |
| Capsule type: | Condenser |
| Colour: | Black |
| Weight: | 23 g |
| Battery 12V/2900mAh WAMS-05 / WAMS-65 |
| Weight: | 1.094 kg |
