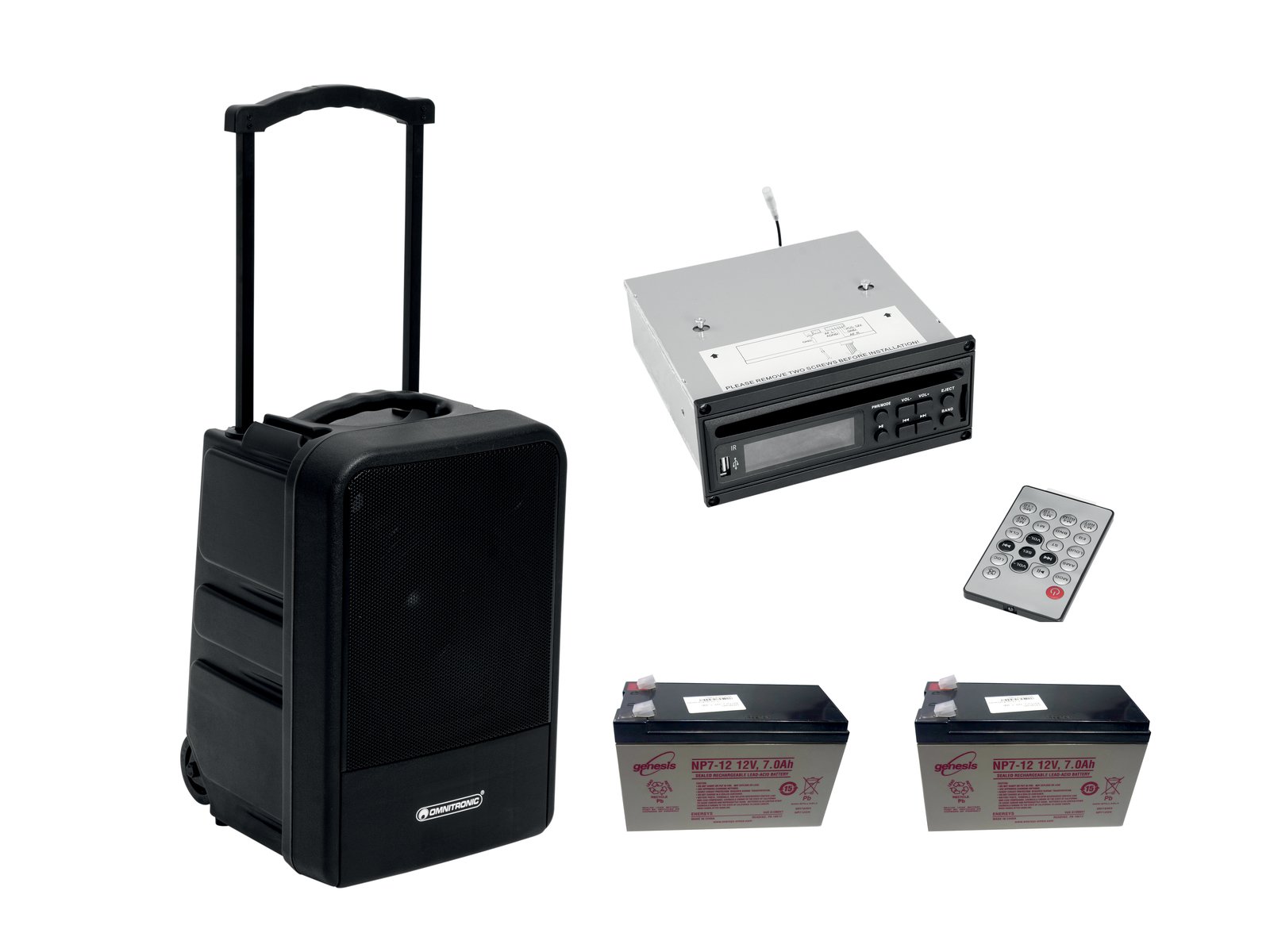

Mobile PA system with battery operation, including CD/MP3 player and 2x battery input mode
Modular wireless PA system OMNITRONIC MOM-10BT4
Mobile PA system with battery operation and various equipment options
- Wireless PA system with modular structure for maximum flexibility
- Wireless audio link operation of multiple MOM-10BT4 systems for larger events
- Flexible use: mono operation with multiple systems or stereo operation with 2 linked systems
- High-power 2-way speaker system with 25 cm (10") woofer
- 3 extension slots for later installation of wireless receivers
- 1 extension slot for later installation of an audio link module
- 1 extension slot for later equipping a CD/MP3 player with SD slot and USB port
- Integrated Bluetooth audio streaming
- Microphone inputs with adjustable reverb effect
- Line input (XLR and RCA), switchable stereo/mono
- Inputs for microphone, line input, and Bluetooth module with separate volume controls
- Mixer section with common master control and 2-band tone control
- Stereo/mono switch for the main signal during audio connection operation
- Additional XLR output for connecting multiple systems via cable
- Switchable microphone priority circuit - ideal for presentations
- Ergonomic design
- Control via Bluetooth
- Supported codecs: AAC, SBC
- 2.4 GHz unlicensed worldwide
- Trolley
- For applications such as: Theatre; mobile use; Wedding/gala/events; product presentations and lectures
- Black metal grille
- Sturdy transport handle
- Integrated automatic battery charging and status indicator
Battery
- Battery operation up to 8 hours
- Wireless, flexible and versatile
Package contents
- 1 x compact speaker, 1 x antenna, 1 x power cable, 1 x user manual, 1 x declaration of conformity
OMNITRONIC MOM-10BT4 CD Player with USB and SD
Mounting module for CD/MP3 player with SD card slot and USB port
- For upgrading the modular PA system MOM-10BT4
- Slot-in unit
- SD card slot (HC).
- Control via IR remote
Package contents
- 1 x device, 4 x screws, 1 x remote control, 1 x user manual
ACCESSORIES 12V/7000mAh Battery
Maintenance-free lead-acid battery 7 Ah
- High energy density
- Long life
- Maintenance-free
- Leak-resistant sealed construction
- Wireless, flexible and versatile
| Weight: | 21.38 kg |
| Modular wireless PA system OMNITRONIC MOM-10BT4 |
| Bluetooth device name: | OMNITRONIC |
| Power supply: | 230 V AC, 50 Hz
Or
12 V DC |
| Power consumption: | Max. 100 W |
| Output power: | Max. 160 W
80 W RMS |
| Power connection: | Mains input via IEC (M) connector, cable mounting version with safety plug (provided)
Battery/battery pack (not included) |
| Frequency range: | 50 - 18000 Hz |
| THD: | <1 % at 1 kHz |
| Control: | Bluetooth |
| Bluetooth: | Version: 4.0
Profiles: A2DP |
| Supported codecs: | AAC, SBC |
| Attachment system: | Sirage: Ø 35mm |
| Circuits: | Class D |
| Status LED: | Charge level, pairing |
| Connections: | Input: line via 1 x RCA stereo
Input: line via 1 x XLR 3-pin
Input: microphone via 2 x 3-pin XLR/6.35 mm jack (F) (mounting version)
Output: line via 1 x XLR 3-pin |
| Input channels: | 2 x mono via combined socket (XLR/jack), channel control via rotary selector
1 x mono + stereo via XLR or RCA, channel control via rotary selector |
| Frequency band: | 2.4 GHz |
| Speaker: | 1 x woofer (10") approximately 25 cm
Tweeter (1") approximately 2.5 cm |
| Speaker type: | Compact cabinet speaker |
| Construction type: | Ventilated |
| Transport handle: | 1 pcs/piece |
| Transport aid: | Trolley |
| Material: | Plastic |
| Colour: | Black |
| Dimensions: | Width: 33.5 cm
Depth: 37.5 cm
Height: 53.5 cm |
| Weight: | 15.75 kg |
| Battery |
| Battery type: | 2 x lead 12 V, 7000 mAh, 84 Wh |
| Battery: | Battery operation up to 8 hours
Recharge time 5h |
| OMNITRONIC MOM-10BT4 CD Player with USB and SD |
| Control: | IR remote control |
| Tape recorder: | USB + SD + CD player |
| CD player unit: | Slot-in single CD unit |
| Music format: | CD, CD-R, CD-RW, CD-DA, MP3; WMA, WAV |
| Available storage media: | USB devices/SD cards max. 32 GB (FAT 32) |
| Dimensions: | Width: 16 cm
Depth: 16.5 cm
Height: 6.8 cm |
| Weight: | 970 g |
| Device |
| Power supply: | 12 V DC 1 A |
| Power connection: | Fixed power cable with special plug |
| Remote control |
| Battery: | 1 x 3.0 V CR2025 lithium manganese button cell built-in |
| ACCESSORIES 12V/7000mAh Battery |
| Battery type: | 1 x lead 12 V, 7000 mAh, |
| Connections: | flat plug 6.3 mm |
| Dimensions: | Width: 16.1 cm
Depth: 6.5 cm
Height: 10 cm |
| Weight: | 2.33 kg |
