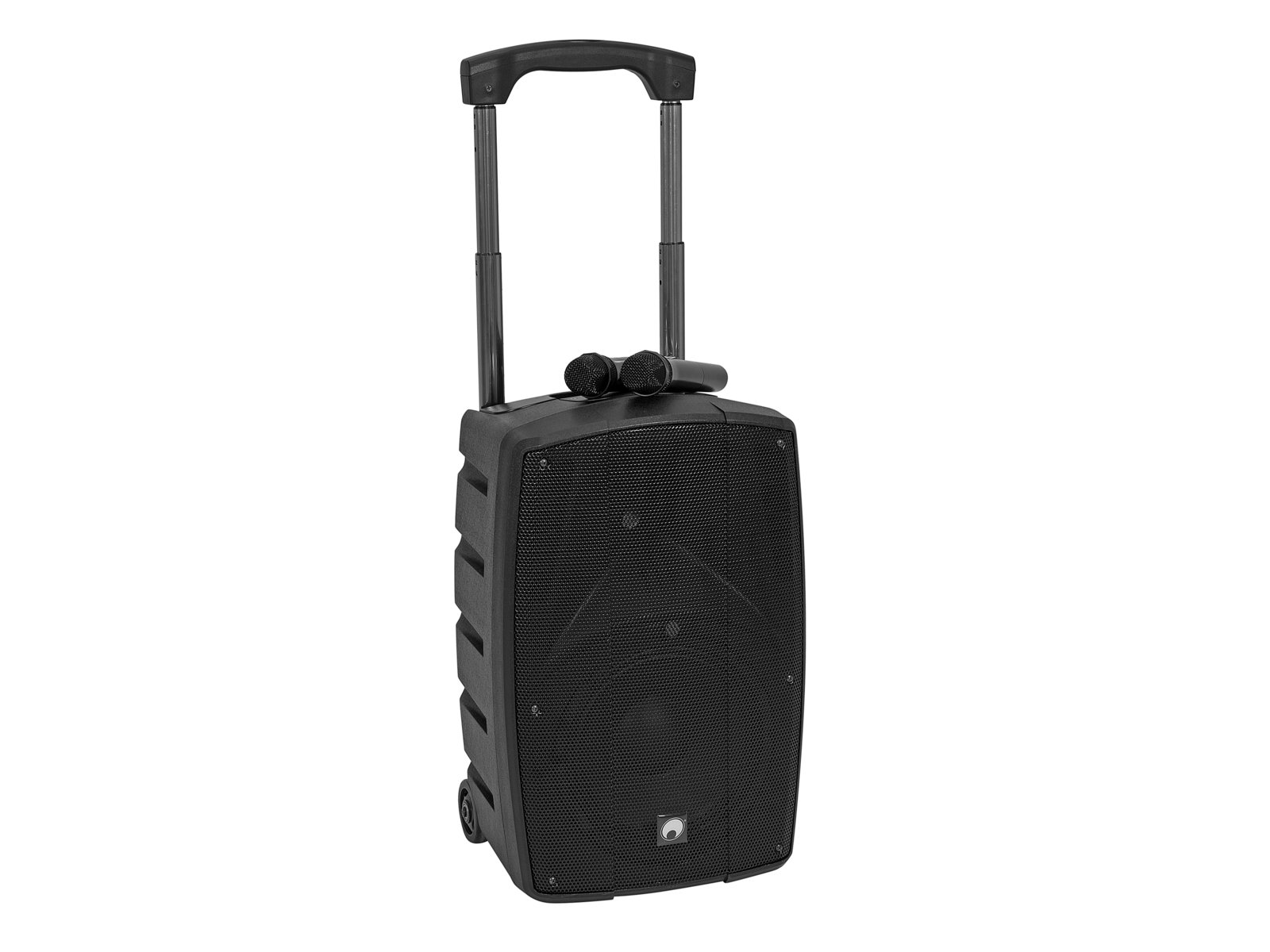

Mobile 12" PA system with battery operation, audio player, Bluetooth and 2 wireless microphones
- Portable all-in-one PA system with 80 watts output power
- Cordless, flexible and versatile
- 3-channel power mixer
- Power-efficient and battery-saving biamp amplifier with DSP control
- Stereo Bluetooth link for wireless stereo operation with 2 systems linked together
- 2 mono input channels mic/line and hi-Z instrument (CH 2) with echo effect and feedback suppression
- 1 stereo input channel for internal audio player and external line signal sources with talkover switch
- UHF receiver units and 2 matching wireless microphones
- 1 additional battery can be retrofitted for up to 8 hours operating time
- Signal limiter and crossover, DSP-controlled
- Common 2-band EQ for highs and lows
- With accessory compartment
- For application areas such as: Theater; mobile use; Wedding/gala/events; product presentations and lectures
- Battery operation up to 4h depending on program used
Audio player
- 2.4 GHz license-free worldwide
- Control via Bluetooth; IR remote control
- Bluetooth: Operating range up to 20m
Microphone
- Polar pattern: Cardioid
- Operating range up to 30m
- UHF 863 - 865 MHz License-free and approved in Europe
Package contents
- 2 x microphone, 2 x user manual, 1 x power cord, 1 x battery, 1 x compact cabinet speaker, 1 x declaration of conformity, 1 x battery pack, 1 x remote control, 2 x antenna
| Power supply: | 100-240 V AC, 50/60 Hz
Or
12 V DC |
| Protection class: | Protection class I |
| Output power: | 80 W RMS |
| Power connection: | Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided)
Battery/battery pack |
| Battery pack type: | 1 x lithium ion 12,8 V, 8000 mAh, 102,4 Wh |
| Battery pack: | Battery operation up to 4h depending on program used
Recharging time 4h |
| Frequency range: | 50 - 20000 Hz |
| THD: | <0,1 % at 1 kHz |
| Sensitivity: | 98 dB (1W/1m) |
| Max. SPL: | 121 dB |
| Control elements: | Level control per channel, Echo effect control, Talkover |
| Status LED: | Power, limit, charge status indicator |
| Connections: | Input: line via 1 x 3.5 mm jack (stereo) mounting version
Input: line via 1 x stereo RCA
Input: mic/line via 2 x 3-pin XLR/6.35mm jack (F) combination socket (mounting version)
Output: 3-pin XLR |
| Equalizer: | 2-band tone control |
| Speaker: | 1 x woofer 12" with ferrit magnet
1 x Tweeter 1" |
| Type of speaker: | Wireless PA system |
| Switch: | On/off switch |
| Material: | Plastic |
| Color: | Black |
| Dimensions: | Length: 31 cm
Width: 36 cm
Height: 56 cm |
| Weight: | 13,12 kg |
| Audio player |
| Control: | Bluetooth; IR remote control |
| Bluetooth: | Version: 5 with stereo link (TWS) |
| Audio player: | USB + SD + Bluetooth, |
| Music format: | MP3, WMA |
| Frequency band: | 2.4 GHz |
| Available storage media: | USB devices/SD cards max. 32GB (FAT 32) |
| Range: | Bluetooth: range up to 20m |
| Microphone |
| Power supply: | 3 V DC |
| Capsule type: | Dynamic |
| Polar pattern: | Cardioid |
| Battery: | 2 x Mignon (AA) (not included) |
| Frequency band: | UHF 863 - 865 MHz |
| Range: | Range up to 30m |
| Dimensions: | Length: 24 cm
Diameter: Ø 5,1 cm |
| Remote control |
| Battery: | 1 x Button cell 3.0 V CR2025 lithium manganese built-in |
