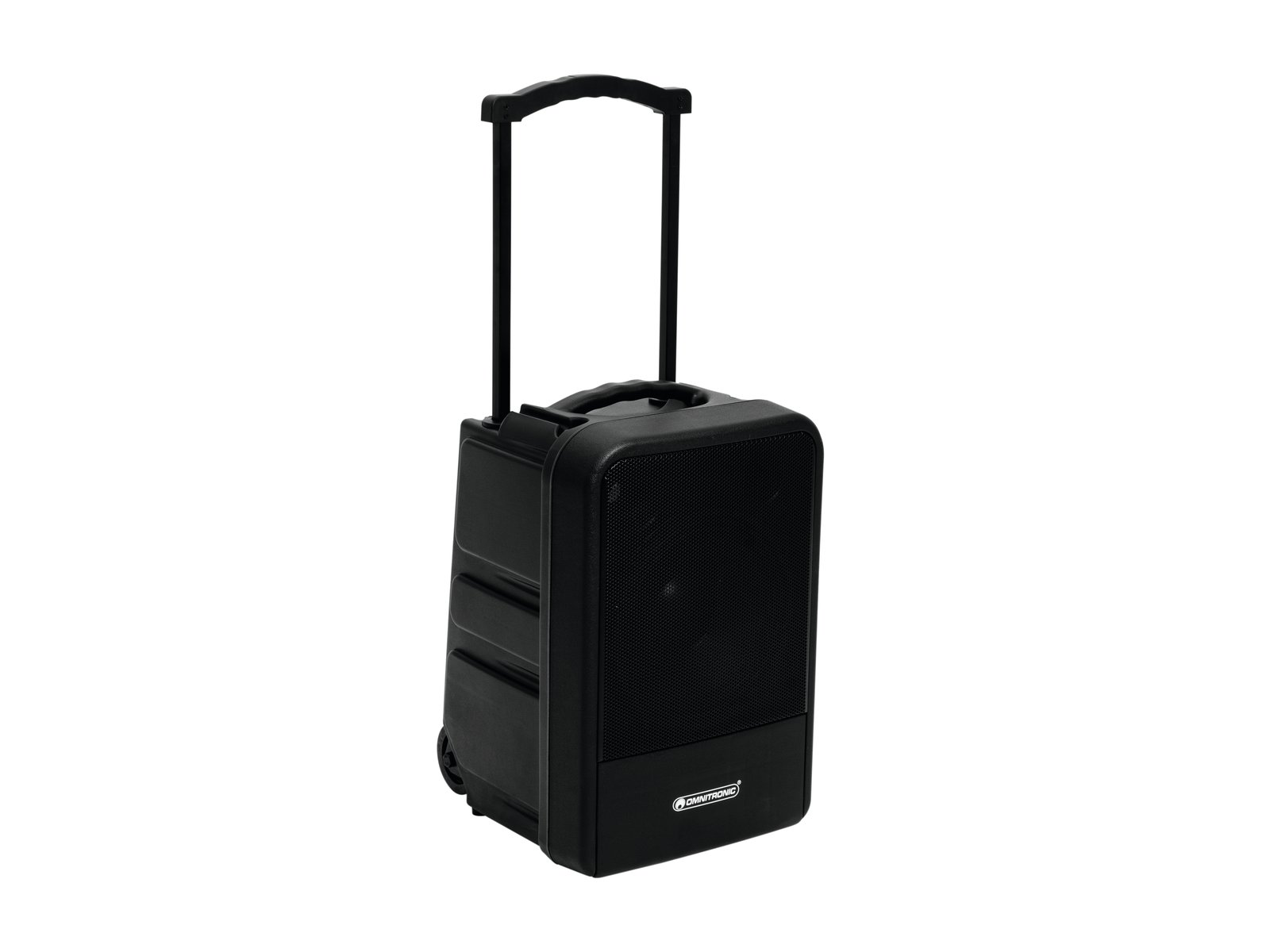

The MOM-10BT4 is a modular mobile PA system. Thanks to its unique components, which can be ordered individually, you can ideally adapt the system to your intended use. Decide for yourself whether you need additional wireless microphones or an audio link module, for example. You can perfectly adapt and expand the two-way system to your requirements.
Mobile PA system with battery operation and various equipment options
- Wireless PA system with a modular structure for maximum flexibility
- Wireless audio link operation of multiple MOM-10BT4 systems for larger events
- Flexible use: mono operation with multiple systems or stereo operation with 2 linked systems
- High-power 2-way speaker system with a 25 cm (10") woofer
- 3 extension slots for subsequent installation of wireless receivers
- 1 extension slot for subsequent installation of an audio link module
- 1 extension slot for subsequent installation of a CD/MP3 player with SD slot and USB port
- Integrated Bluetooth audio streaming
- Microphone inputs with adjustable reverb effect
- Line input (XLR and RCA), switchable stereo/mono
- Microphone inputs, line input, and Bluetooth module with separate volume controls
- Mixer section with common master control and 2-band tone control
- Stereo/mono switch for the main signal during audio link operation
- Additional XLR output for connecting multiple systems via cable
- Switchable microphone priority circuit - ideal for presentations
- Ergonomic design
- Bluetooth control
- Supported codecs: AAC, SBC
- 2.4 GHz license-free worldwide
- Trolley
- For applications such as: Theatre; mobile use; Wedding/gala/events; product presentations and lectures
- Black metal grille
- Sturdy transport handle
- Integrated automatic battery charging and status indicator
Battery
- Battery operation up to 8 hours
- Wireless, flexible, and versatile
Package contents
- 1 x compact speaker, 1 x antenna, 1 x power cable, 1 x user manual, 1 x declaration of conformity
| Bluetooth device name: | OMNITRONIC |
| Power supply: | 230 V AC, 50 Hz
Or
12 V DC |
| Power consumption: | Max. 100 W |
| Output power: | Max. 160 W
80 W RMS |
| Power connection: | Mains input via IEC (M) connector, power cable mounting version with safety plug (supplied)
Battery pack (not included) |
| Frequency range: | 50 - 18000 Hz |
| THD: | <1 % at 1 kHz |
| Control: | Bluetooth |
| Bluetooth: | Version: 4.0
Profiles: A2DP |
| Supported codecs: | AAC, SBC |
| Mounting system: | Sirage: Ø 35mm |
| Circuits: | Class D |
| Status LED: | Charge level, pairing |
| Connections: | Input: line via 1 x RCA stereo
Input: line via 1 x XLR 3-pin
Input: microphone via 2 x XLR 3-pin/6.35 mm jack (F) (mounting version)
Output: line via 1 x XLR 3-pin |
| Input channels: | 2 x mono via combined socket (XLR/jack), channel control via rotary selector
1 x mono + stereo via XLR or RCA, channel control via rotary selector |
| Frequency band: | 2.4 GHz |
| Speaker: | 1 x woofer (10") approximately 25 cm
Tweeter (1") approximately 2.5 cm |
| Speaker type: | Compact cabinet speaker |
| Construction type: | Ventilated |
| Transport handle: | 1 pcs/piece |
| Transport aid: | Trolley |
| Material: | Plastic |
| Colour: | Black |
| Dimensions: | Width: 33.5 cm
Depth: 37.5 cm
Height: 53.5 cm |
| Weight: | 15.75 kg |
| Battery |
| Battery type: | 2 x lead 12 V, 7000 mAh, 84 Wh |
| Battery: | Battery operation up to 8 hours
Recharge time 5h |
