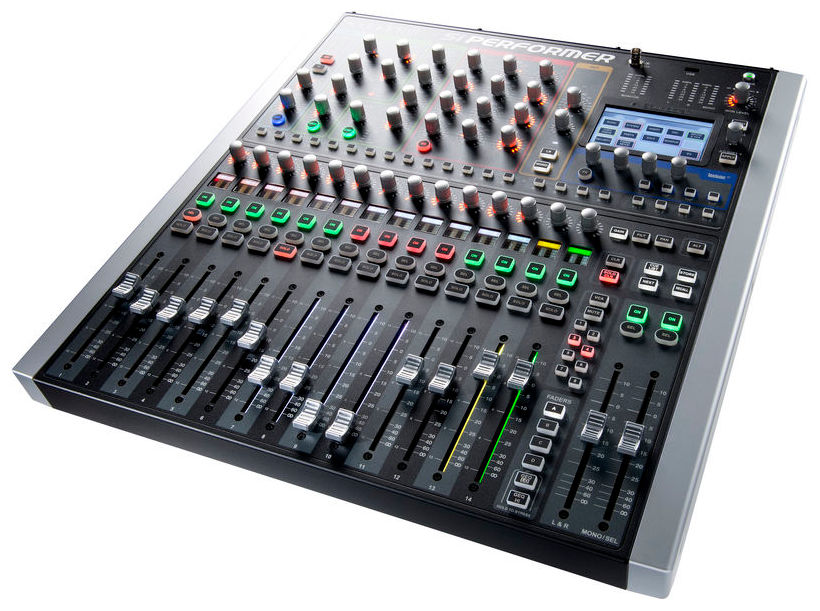

Soundcraft Si Performer 1

Soundcraft Si Performer 1 - a digital mixer specially designed for any situations where the sound engineer controls both sound and stage lights. The mixer features an integrated DMX controller and support for the Soundcraft ViSi Remote App for Apple iPad. It has 16 microphone preamps with balanced XLR input connectors, whose settings can be saved and reused, 8 line inputs, AES digital input/output, 80 mixing channels, 20 subgroups/auxiliary buses, 4 FX buses, 8 matrix buses, 8 mute groups, 8 VCA groups, assignable insert loops, selectable delay on all inputs/outputs, Harman HiQnet integration, headphone monitoring, LCR panning, motorised faders with LED Faderglow for visual feedback, and a colour touch screen interface.

The mixer uses EMMA DSP processors that provide the equivalent of 448 rack units, including a 4-band parametric EQ, and 4 Lexicon stereo effect generators based on MX4000. For customisation, it offers assignable faders, assignable patching, and flexible routing. The 4 mix buses use internal Lexicon FX processors for left/centre/right micing, each with its own compressor, 4-band parametric EQ, graphic EQ, and delay.

The most innovative feature of the mixer is the integrated DMX 512 control interface, which allows automated control simultaneously with sound control.

The number of input/output channels of the mixer can be expanded with 128 x 96 input/output channels via two optional ViSi Connect cards (one 64x64 expansion slot and one 64x32 slot). The cards support a wide range of formats including MultiDigital Card (Firewire/USB/ADAT), BSS Digital Audio Bus (BLU link), Dante, CAT5 or optical MADI, AVIOM, CobraNet, or others, for integration with other mixing or multi-track recording devices.

The ViSi Remote iPad control app allows the use of an iPad to adjust individual channel settings such as EQ, compressor, Gate, Pan, LR/Mono, and phase invert to optimise the front of house mix.

Technical specifications:

• Inputs/Outputs:
  • 16x microphone preamps
  • 8x line inputs
  • 16x analog line outputs
  • 1x headphone output
  • 1x Word Clock
  • 1x MIDI input
  • 1x MIDI output
  • 1x AES input
  • 1x AES output
  • 1x DMX output
  • 1x HiQnet ethernet port and USB#2
  • 2x optional expansion slots
• Expansion:
  • Card 1: 64 x 64 inputs/outputs
  • Card 2: 64 x 32 inputs/outputs
• Compatibility:
  • MultiDigital Card (Firewire/USB/ADAT)
  • BSS Digital Audio Bus (BLU Link)
  • Dante
  • CAT5 or optical MADI
  • AVIOM
  • CobraNet
• Frequency response input Mic/Line to any output: ±1.5 dB from 20 Hz to 20 kHz
• THD: microphone sensitivity -30 dBu <0.01% at 1 kHz
• Noise:
  • Residual noise: -86 dBu
  • Microphone input E.I.N. (max gain): -126 dBu (150 ohm source)
  • Mix noise: < -86 dBu
  • One input to mix per unit gain: -84 dBu
  • CMRR low at 1 kHz (max gain): -80 dBu
• Crosstalk:
  • Attenuation per channel: < 120 dB
  • Channel fader attenuation: < 120 dB
  • Mic - Mic: -100 dB at 1 kHz and -85 dB at 10 kHz
  • Line - Line: -100 dB at 1 kHz and -85 dB at 10 kHz
• Input gain:
  • Microphone gain: -5 to 58 dB
  • Integrated pad design in 1 dB steps
  • Line trim: -10 to +16 dB
• Gate:
  • Threshold: -60 to -6 dBfs
  • Depth: -60 to -3 dB
  • Attack: 0.1 to 200 ms
  • Release: 20 to 500 ms
  • Side-chain HPF: 22 Hz to 25 kHz
  • Side-chain LPF: 160 Hz to 20 kHz
• Compressor:
  • Threshold: -52 to -6 dBfs
  • Ratio: 1:1 to 20:1
  • Attack: 0.1 to 200 ms
  • Release: 5 to 900 ms
  • Makeup Gain: 0 to 24 dB
• EQ section:
  • All bands: 22 Hz to 20 kHz, ± 15 dB with Q from 6 to 0.3
  • Shelf (HF): 800 Hz to 20 kHz, ±15 dB
  • Shelf (LF): 20 to 500 Hz, ±15 dB
  • HPF: 40 Hz to 1 kHz
• Delay: user adjustable, 1 sample to 500 ms
• Graphic EQ: 31 Hz to 16 kHz, 1/3 octave
• Digital Inputs/Outputs:
  • AES sample rate conversion range: 8 kHz to 200 kHz
  • External word clock in the range of 48 kHz ± 7 Hz (internal systems), ±3 Hz with stageboxes
  • Word clock jitter output: ± 7 ns
  • Analog output for 0 dBfs: +21.5 dBu
  • Conversion resolution: 24-bit
  • DSP resolution: 40-bit floating point
• Latency:
  • Microphone to line output: < 0.8 ms
  • Analog input to AES output: < 0.6 ms
  • AES input to line output: < 0.8 ms
  • AES input to AES output: < 0.5 ms
  • Stagebox input to stagebox: < 0.9 ms
• Levels:
  • Microphone input: + 22 dBu max
  • Line input: + 22 dBu max
  • Mix output: + 21.5 dBu max
  • Headphones (at 150 ohms): 300 mW (recommended impedance of 32 to 200 ohms)
• Impedance:
  • Microphone input: 3 kOhms
  • Line input: 10 kOhms
  • AES input: 110 ohms
  • Outputs: 150 ohms (balanced), 75 ohms (unbalanced)
  • Word clock used as output: 50 ohms
  • Word clock used as input: 47 kOhms
  • AES output: 110 ohms
  • DMX: 120 ohms
• Power consumption: 130 W
• Power supply: 88 to 246 VAC auto-selected, 47 to 63 Hz
• Lamp power supply: 12 VDC, 100 mA max (per socket)
• Optimal operating temperature: 5 to 45°C
• Storage temperature: -20 to 60°C
• Humidity: 0 to 90%, non-condensing at 40°C
• Dimensions (H x W x D): 18.8 x 44.5 x 53.0 cm
• Weight: 13.6 kg
