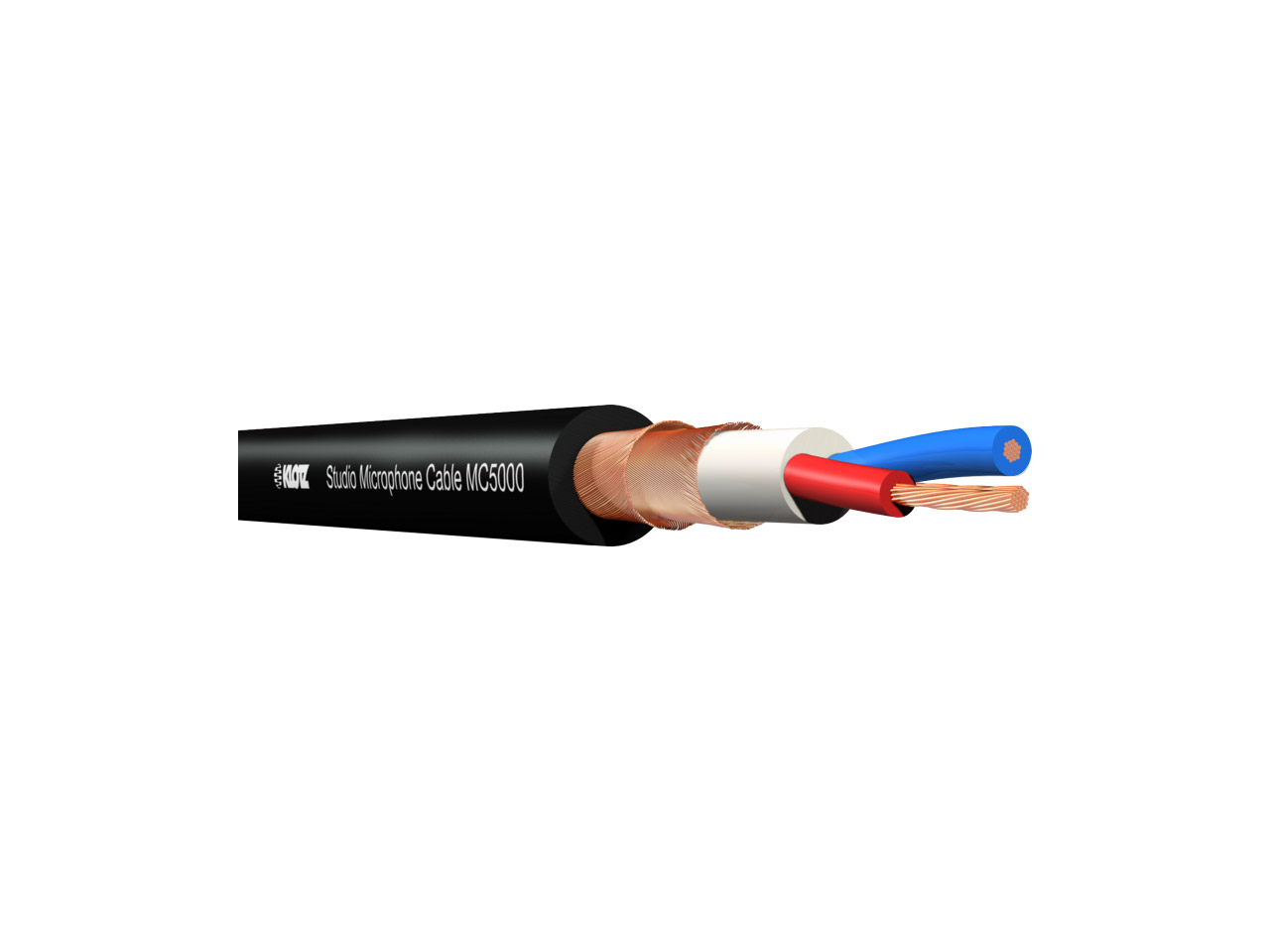

Klotz MC5000

Microphone Cable

high-quality microphone cable for long-distance signal transmission.
features double spiral shielding for 100% coverage against interference.
constructed with copper conductors and PVC insulation.
minimum bending radius of 35 mm for flexibility.
low conductor resistance of < 40 Ω/km.

Over 1300 units sold with 0.00% warranty claims.

4⁵⁸ €

In stock and deliverable.

Central warehouse: 0 In stores: 5

Add to cart

also deliverable via

24 points of loyalty

Shipping 8.00 €

Warranty 12 months

Returns 14 days

request details

Klotz MC5000 Add to cart: 4⁵⁸ €

Klotz MC5000, a high-quality microphone cable designed to transmit signals over long distances with minimal loss and reduced attenuation. It is equipped with features to eliminate interference, including a cast PVC inner sheath and a stabilising element to improve pressure resistance. A double spiral shielding provides 100% coverage to protect against electromagnetic interference.

Conductor construction: copper, 28 x 0.15 mm
Conductor cross-section: 0.50 mm²
Insulation: polyethylene (PE)
Core arrangement: 2 twisted cores in a pair
Intermediate sheath: extruded inner PVC covering
Shielding: double, copper spiral, counter-rotating
Exterior: PVC
Total diameter: 7.0 mm
Minimum bending radius: 35 mm
Conductor resistance: < 40 Ω/km
Capacitance cond./cond.: 55 pF/m
Capacitance cond./shield: 95 pF/m
Insulation resistance: > 0.1 GΩ x km
