Easy-to-use 3-pin XLR adapter (male) with a pivoting antenna
Wireless DMX eliminates extensive cabling between the DMX controller and DMX-controlled units in lighting installations
Thanks to GFSK modulation with 78 channels, operates without interference, also alongside other QuickDMX transceivers and wireless devices in the 2.4 GHz band (e.g., Wi-Fi and Bluetooth)
Simultaneous operation of up to 6 transmitters, allowing control of 3072 DMX channels (6 DMX universes)
From 1 to 512 QuickDMX receivers can be controlled by each transmitter
LED indication for functions
Transceiver, can be used as a transmitter or receiver
Can transmit up to 512 DMX channels
Control via QuickDMX; DMX; connect and use
Operating range up to 400 m
Package contents
1 x device, 1 x user manual, 1 x declaration of conformity, 1 x external power adapter, 1 x USB cable
EUROLITE AKKU QuickDMX wireless receiver
Battery-powered 2.4 GHz wireless DMX receiver
Compact 3-pin XLR adapter (female) with built-in antenna
Wireless DMX eliminates extensive cabling between the DMX controller and DMX-controlled units in lighting installations
32-bit ARM processor for transmission without delays
Thanks to GFSK modulation with 78 channels, operates without interference, also alongside other QuickDMX transceivers and wireless devices in the 2.4 GHz band (e.g., Wi-Fi and Bluetooth)
Group mode
Multicolour LED indicator
Battery operation up to 20 hours
Control via QuickDMX; connect and use
Operating range up to 400 m
Wireless, flexible and versatile
Package contents
1 x device, 1 x user manual, 1 x declaration of conformity, 1 x external power adapter, 1 x USB cable
Weight:
420 g
EUROLITE QuickDMX wireless transmitter
Power supply:
100-240 V AC, 50/60 Hz 5 V DC 1 A
IP rating:
IP20
Power connection:
Network input via coaxial power connector (M) power cable mounting version with AC adapter (included)
DMX channels:
Output 512
DMX input:
1 x 3-pin XLR (M)
Control:
QuickDMX; DMX; connect and use
Carrier frequency:
2.4 GHz
Modulation:
GFSK
Parallel mode:
Max. 6 transmitters
Range:
Operating range up to 400 m
Colour:
Silver
Dimensions:
Length: 21.2 cm Diameter: Ø 1.8 cm
Weight:
150 g
EUROLITE AKKU QuickDMX wireless receiver
Power supply:
5 V DC
Pin configuration:
interior + exterior -
IP rating:
IP20
Power connection:
Network input via coaxial power connector (M) power cable mounting version for USB A network connection (included)
Did you find Eurolite Set QuickDMX 1x transmitter + 2x AKKU receiver at a lower price at a Romanian retailer? Please let us know and we will propose a personalized offer.
The special offer is subject to the following conditions:
The competing company must be an authorized dealer for Eurolite Set QuickDMX 1x transmitter + 2x AKKU receiver
The competing offer terms must be similar to those provided by SoundCreation: in stock, similar return guarantee, similar delivery conditions, etc.
The product has been added to the cart

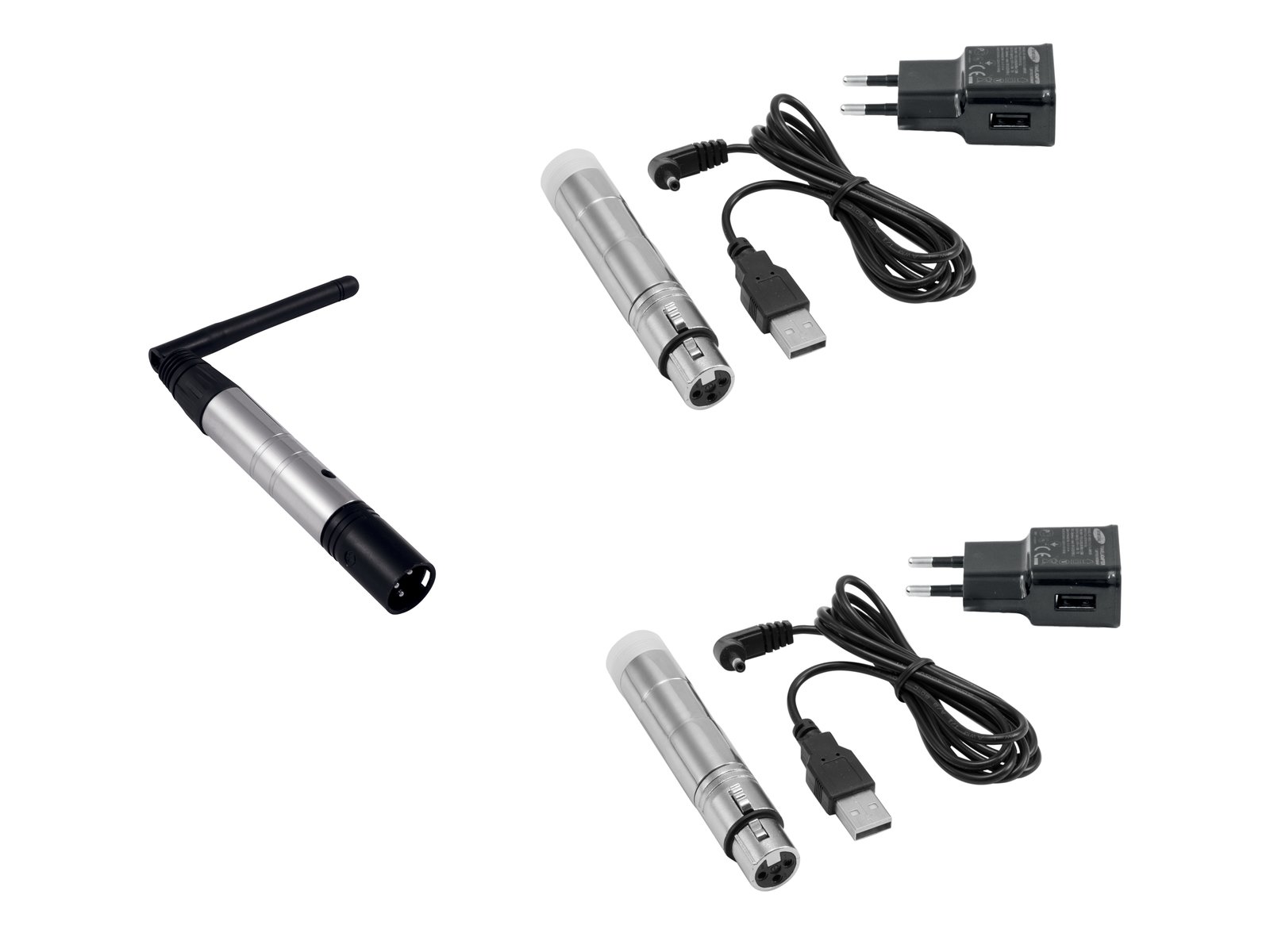

Eurolite Set QuickDMX 1x transmitter + 2x AKKU receiver
