- Positioning in PAN and TILT
EUROLITE LED TMH-B90 Moving Head Beam
LED moving head beam with colour wheel, static gobo wheel, prism and focus
- 1 powerful 90 W COB (chip-on-board) cool white (CW) LED
- Positioning at 540° PAN and 200° TILT
- Automatic position correction (feedback)
- Precise positioning (16-bit resolution)
- Colour palette; gobo wheel with static gobos; motorised focus; 8-facet rotating prism; frost filter
- Beam effect
- Rainbow effect with adjustable speed in both directions
- Gobo wheel with static gobos, 13 gobos and open
shaking effect - Integrated show programs
- Can be operated in 14 CH mode
- The device is cooled by a cooling fan
- Standalone control; DMX; Sound to light via microphone; Master/slave function; QuickDMX via USB (optional); W-DMX wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
- Flicker-free
- With a beam angle of 3°
- Good colour rendering index (CRI)
- LCD display
- Electronic dimmer
- Colour wheel with 7 dichroic filters plus open
- Preprogrammed in Light Captain; EASY SHOW 3; Lumina'J
- Network input and output for power connection up to 8 units
Package contents
- 1 x moving light, 1 x user manual, 1 x power cable, 1 x Omega bracket, 1 x safety eye

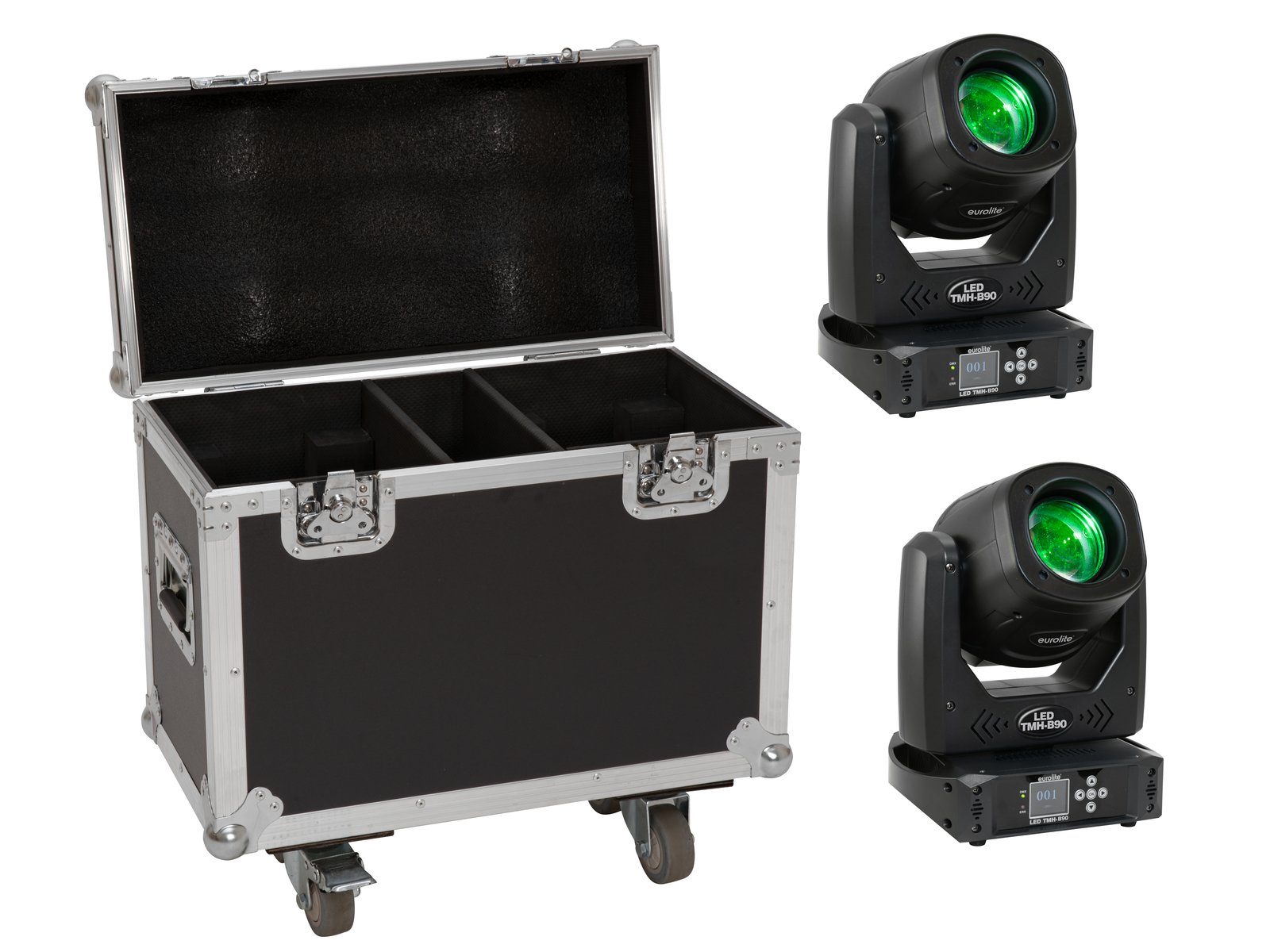

ROADINGER Flightcase 2x TMH-S90/H90/B90
Flightcase for 2 x moving head spot EUROLITE LED TMH-S90
- For optimal security
- With 2 compartments for devices
- High-quality workmanship with 7 mm glued multilayer plywood, black, laminated
- Interior lined with foam
covered with foam lining - 30mm aluminium profile frames with rounded edges
- 2 chrome-plated case handles with hinges
- 2 chrome-plated latches for overturning
- 2 high-quality butterfly latches
- Wheels
| Weight: | 26.25 kg |
| EUROLITE LED TMH-B90 Moving Head Beam |
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 125 W |
| IP rating: | IP20 |
| Protection class: | Protection class I |
| Power connection: | Mains input via P-Con (blue), power cable mounting version with safety plug (supplied) |
| Output power: | P-Con (grey), mounting version |
| Device fuse: | 5 x 20 mm, T 2 A replaceable fuse |
| Lamp type: | LED lamp |
| LED: | 1 x 90 W COB (chip-on-board) cool white (CW) |
| Max. TILT movement: | 200° Precise positioning (16-bit resolution) Automatic position correction (feedback) |
| Max. PAN movement: | 540° Precise positioning (16-bit resolution) Automatic position correction (feedback) |
| Flash rate: | 2 - 20 Hz |
| Equipment: | Colour palette; gobo wheel with static gobos; motorised focus; 8-facet rotating prism; frost filter |
| Colour generation: | Colour wheel with 7 dichroic filters plus open |
| Gobo: | Gobo wheel with static gobos, 13 gobos and open
shaking effect |
| DMX channels: | 14 |
| DMX input: | Mounting version XLR (M) with 3 pins |
| DMX output: | Mounting version XLR (F) with 3 pins |
| Cooling: | Cooling fan |
| Control: | Standalone; DMX; Sound to light via microphone; Master/slave function; QuickDMX via USB (optional); W-DMX wireless solution via USB (optional); CRMX by LumenRadio via USB (optional) |
| Preprogrammed in: | Light Captain; EASY SHOW 3; Lumina'J |
| Beam angle: | 3° |
| Beam angle (1/2 peak): | 3° |
| Colour rendering index (CRI): | 80 Ra |
| Illuminance in lux (lx): | Cool white (CW) 3m: 33839 lx, 6m: 10454 lx |
| Housing colour: | Black |
| Display type: | LCD display |
| Dimensions: | Width: 25.5 cm
Depth: 20.5 cm
Height: 33.0 cm |
| Weight: | 6.55 kg |
| Noise rating: | Class 2 (low noise) |
| Legal specifications |
| special product: | Not designed for household room lighting |
| Intended use: | Show lighting with effect |
| ROADINGER Flightcase 2x TMH-S90/H90/B90 |
| Maximum capacity: | 50 kg |
| Aluminium profile frames: | 30 mm |
| Case handles: | 2 pcs/piece |
| Stop hinge: | 2 pcs/piece |
| Lock: | Butterfly lock: 2 pcs/piece |
| Transport aid: | Wheels |
| Material: | Glued multilayer plywood, 7 mm |
| Colour: | Black, laminated |
| Device compartment: | 20 cm x 26 cm x 37 cm |
| Accessory compartment: | 9.5 cm x 26 cm x 37 cm |
| Dimensions: | Width: 57 cm
Depth: 31 cm
Height: 54 cm |
| Weight: | 13.15 kg |
