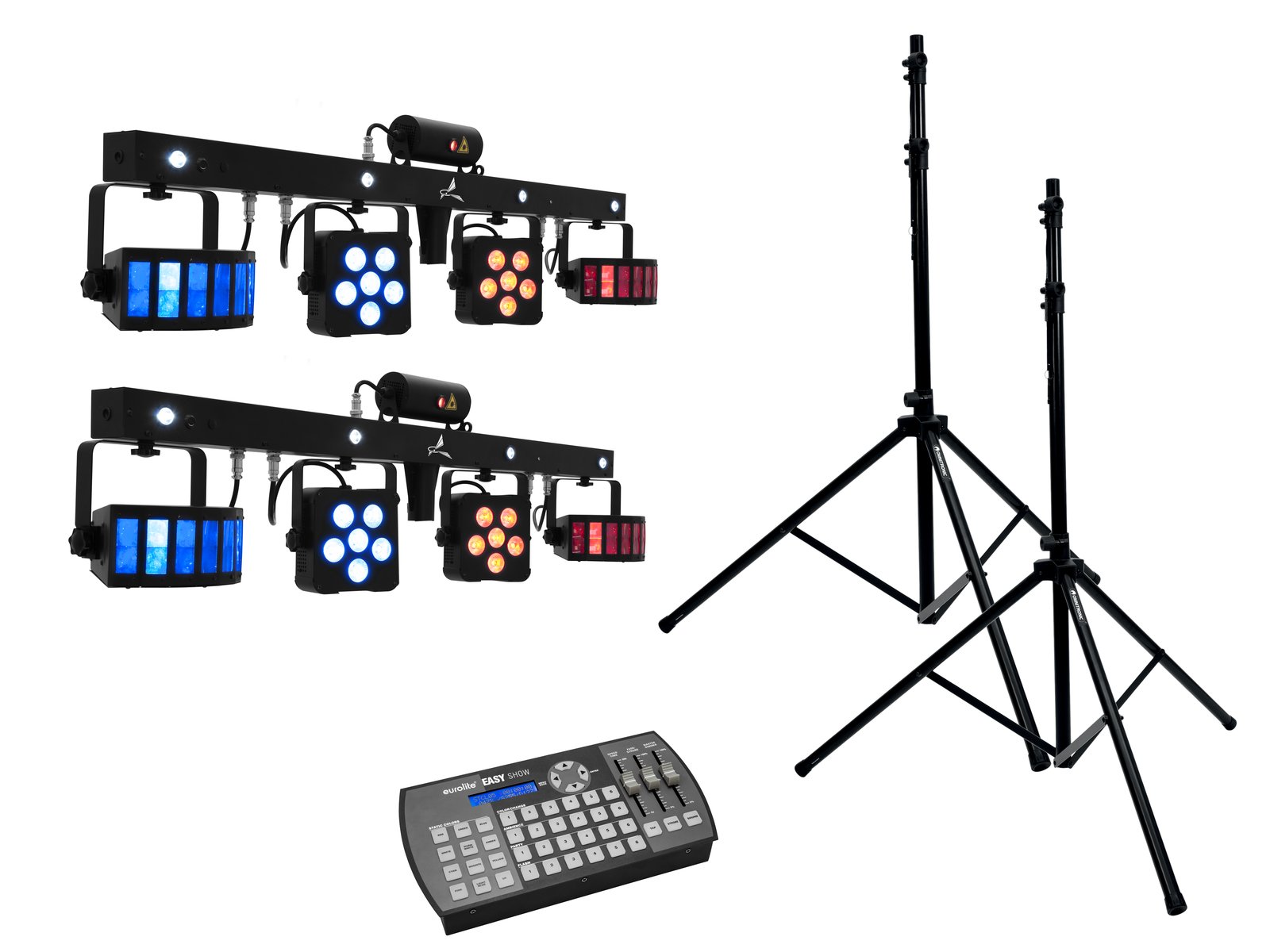

EUROLITE LED KLS Laser Bar PRO FX lighting set
Bar with 2 derby lights and powerful spots, white/UV strobe LEDs, laser (RG, 2M)
- Enhanced version with very high brightness and additional UV LEDs
- Compact and lightweight
- Crossbar with integrated DMX control unit and support sleeve
- 2 laser diodes project hundreds of red and green laser beams
- 2 rotating derby lights for mirror ball effects
- When used with fog, this effect becomes particularly attractive
- Flower effect
- 39 integrated Show programs
- Can be operated in 3; 5; 10; 28 CH mode
- The device is cooled by a cooling fan
- Standalone control; DMX; IR remote control; Sound to light via microphone; Wireless foot switch; Master/slave function
- With mounting bracket
- For applications such as: Wedding/gala/events; mobile use
- Preprogrammed in EASY SHOW 1; Light'J; LED PC-Control 512; Light Captain; EASY SHOW 2; Easy Show 3
- Network input and output for connecting power up to 8 units
laser
- Laser
- Laser class 2M
does not require additional protective measures or the appointment of a laser safety officer
spotlight
- 6 powerful 6 W 3in1 TCL RGB LEDs (homogeneous colour mixing)
separate control spots - Strobe effect
- With a beam angle of 13°
light effect
- 6 powerful 2 W R/G/B LEDs
separate control spots - Multiple beam effect; Strobe effect
bar
- 4 powerful 2 W 2 in 1 BCL CW/UV LEDs (homogeneous colour mixing)
separate control LEDs - Strobe effect
Package contents
- 1 x device, 1 x power cable, 1 x user manual, 1 x declaration of conformity, 1 x remote control, 1 x foot switch, 2 x thumb screws, 2 x washers, 2 x mounting brackets, 1 x battery, 1 x bag
EUROLITE EASY Show
DMX controller programmed for over 200 spots from EUROLITE
- Easy-to-use DMX controller and DMX recorder
- Designed for DMX beginners with 200 programmed devices
- DMX recording function for your own projects, ideal for installations or rental companies
- Ideal for coloured LED spots, KLS systems, moving lights and lighting effects
- No programming required, just connect the spots and start
- All spots can be freely combined in a show
- Data storage on USB flash drives
- QuickDMX connector for wireless DMX connection
- A list of all preset devices is available at www.steinigke.de
- Adjustable program speed; adjustable fade; Dimmer
- Strobe effect
- 24 integrated Show programs
- Direct colour selection for 12 preset colours
- Control via DMX; Sound to light via microphone; QuickDMX via USB (optional)
- Desktop console housing
- Monochrome LCD display
Package contents
- 1 x controller, 1 x user manual, 1 x external power adapter, 2 x USB cables, 2 x mounting brackets, 4 x screws
OMNITRONIC M-4 Speaker System Stand
Aluminium speaker stand, adjustable height 140-345 cm, maximum load 18 kg
- Durable aluminium version
- Height adjustable in 10 steps, with locking pin
- Tube diameter: Ø 35 mm
Package contents
| Weight: | 27.95 kg |
| EUROLITE LED KLS Laser Bar PRO FX lighting set |
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 150 W |
| IP rating: | IP20 |
| Protection class: | Protection class I |
| Power connection: | Mains input via IEC (M) connector, cable mount version with safety plug (supplied) |
| Output power: | 1 x IEC (F) connector mounting version |
| Fuse: | 5 x 20 mm, T 3.15 A |
| Lamp type: | LED lamp |
| DMX channels: | 3; 5; 10; 28 |
| DMX input: | 1 x mounting version XLR (M) with 3 pins |
| DMX output: | 1 x mounting version XLR (F) with 3 pins |
| Cooling: | Cooling fan |
| Control: | Standalone; DMX; IR remote control; Sound to light via microphone; Wireless foot switch; Master/slave function |
| Preprogrammed in: | EASY SHOW 1; Light'J; LED PC-Control 512; Light Captain; EASY SHOW 2; Easy Show 3 |
| Housing colour: | Black |
| Mounting system: | 2x Mounting bracket |
| dimensions: | Width: 1,030 cm Depth: 6.1 cm Height: 38.7 cm |
| Weight: | 10.00 kg |
| Noise rating: | Class 2 (low noise) |
| Power cable |
| Cable length: | 3 m |
| Laser |
| Laser class: | 2M |
| Laser colour: | R/G |
| Laser mode: | Red (R) 100 mW 650 nm Green (G) 30 mW 532 nm |
| In spotlight |
| LED: | 6 x 6 W high power 3in1 TCL RGB (homogeneous colour mixing) |
| Flash rate: | 0 - 30 Hz |
| Beam angle: | 13° |
| Beam angle (1/2 peak): | 13° |
| Beam angle (1/10 peak): | 20° |
| Light effect |
| LED: | 6 x 2 W R/G/B high power |
| Flash rate: | 0 - 30 Hz |
| Bar |
| LED: | 4 x 2 W high power 2 in 1 BCL CW/UV (homogeneous colour mixing) |
| Flash rate: | 0 - 30 Hz |
| Foot control |
| Battery: | 1 x 9.0 V block 6F22 zinc carbon included |
| Remote control |
| Battery: | 1 x Button cell 3.0 V CR2025 lithium manganese built-in |
| EUROLITE EASY Show |
| Power supply: | 100-240 V AC, 50/60 Hz 5 V DC 250 mA |
| Power consumption: | 1.25 W |
| IP rating: | IP20 |
| Power connection: | Power via USB C cable (F) mounting version with AC adapter |
| DMX input: | Mounting version XLR (M) with 3 pins |
| DMX output: | Mounting version XLR (F) with 3 pins |
| Control: | DMX; Sound to light via microphone; QuickDMX via USB (optional) |
| Housing colour: | Black |
| Display type: | Monochrome LCD display |
| Available storage supports: | USB devices |
| Housing design: | Desktop console housing |
| dimensions: | Width: 28.0 cm Depth: 14.5 cm Height: 6.0 cm |
| Weight: | 1.35 kg |
| OMNITRONIC M-4 Speaker System Stand |
| Maximum load capacity: | 18 kg |
| Tube diameter sector: | 38 - 35 mm |
| Height: | Maximum: 345 cm Minimum: 140 cm |
| Mounting system: | Ø 35mm |
| Type (general stands): | Speaker stand/manual |
| Material: | Aluminium |
| Colour: | Black |
| Transport dimensions: | 1.4 m x 13.5 cm |
| Weight: | 3.30 kg |
