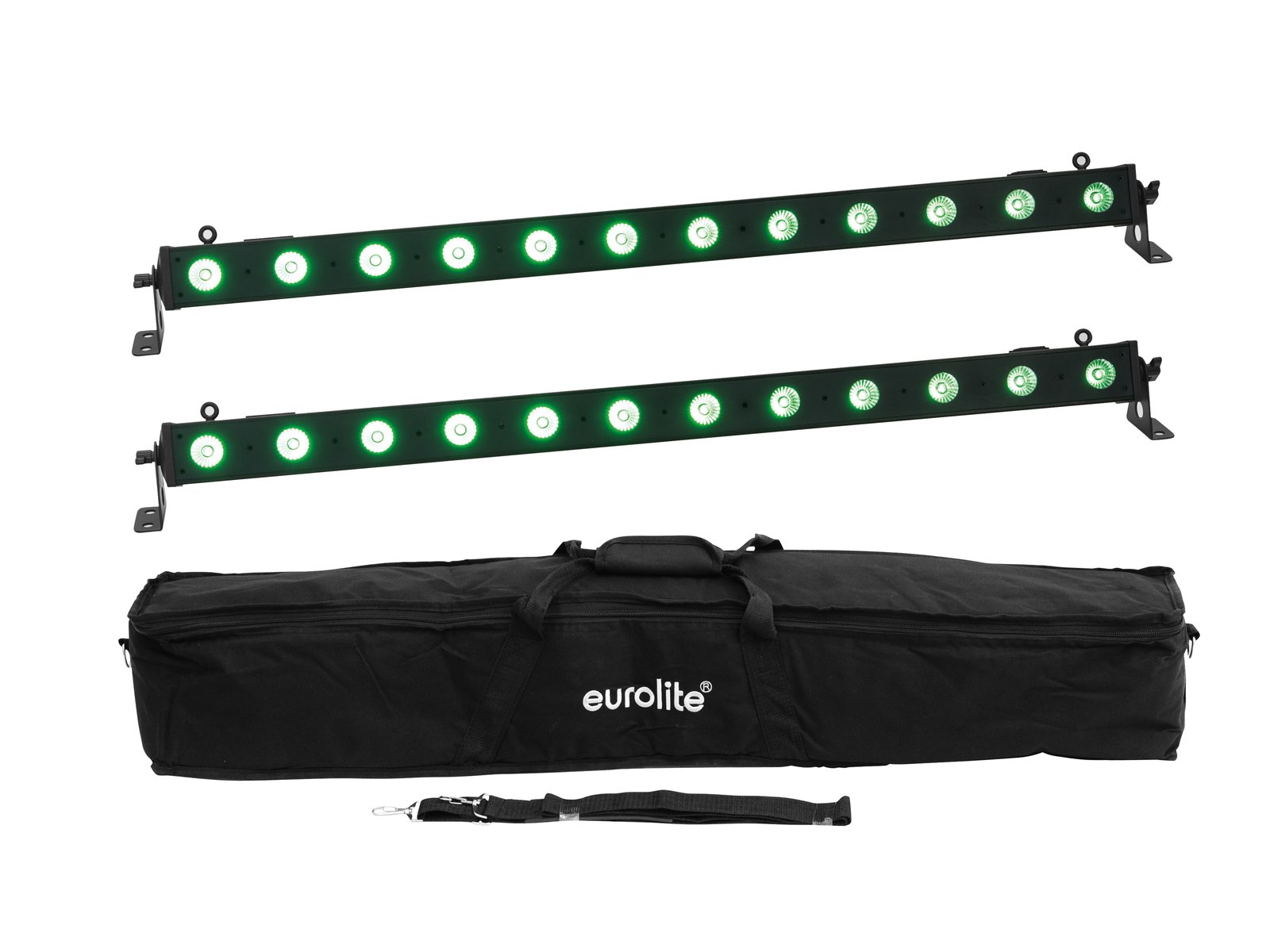

2x light effect bar (1 m) with RGB+UV colour mixing, including soft bag
EUROLITE LED BAR-12 QCL RGB+UV Bar
Light effect bar (1 m) with RGB+UV colour mixing
- 12 powerful 4 W high-power 4in1 QCL RGB/UV LEDs (homogeneous colour mixing)
- Seamless colour mixing; adjustable colour change; adjustable fade; electronic dimmer
- Strobe effect; UV effect
- Integrated show programmes
- Direct colour selection for 20 preset colours
- Can be operated in 2; 4; 5; 6; 9 CH mode
- The device is cooled by passive convection cooling
- Standalone control; DMX; Sound to light via microphone; Master/slave function; QuickDMX via USB (optional); W-DMX wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
- Flicker-free
- With a beam angle of 20°
- With mounting bracket
- LED display with 4 digits and 7 segments
- Preprogrammed in Light´J; LED PC-Control 512; EASY SHOW 2; Light Captain; EASY SHOW 2; EASY SHOW 3
- Silent operation
- Input and output for power connection for up to 8 units
- For more information about this product, please refer to the technical data sheet in "Downloads"
Package contents
- 1 x bar, 1 x user manual, 1 x power cable, 2 x mounting brackets, 2 x screws, 2 x washers
EUROLITE SB-12 soft bag
Practical black soft bag for LED bars (1 m length), adjustable divider
- Ideal for 1 or 2 LED bars with a length of 1 metre
- Made from easy-care nylon
- With separator
- With 2 compartments for devices
- High-quality workmanship with black textile material
- Interior lined with foam
- 2 robust carrying handles
- 1 shoulder strap
| Weight: | 6.27 kg |
| EUROLITE LED BAR-12 QCL RGB+UV Bar |
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 25 W |
| IP rating: | IP20 |
| Protection class: | Protection class I |
| Power connection: | Mains input via IEC (M) connector, power cable with safety plug (included) |
| Output power: | 1 x IEC (F) connector |
| Lamp type: | LED lamp |
| LED: | 12 x 4 W high-power 4in1 QCL RGB/UV (homogeneous colour mixing) |
| Flash rate: | 0 - 20 Hz |
| DMX channels: | 2; 4; 5; 6; 9 |
| DMX input: | XLR (M) mounting version with 3 pins |
| DMX output: | XLR (F) mounting version with 3 pins |
| Cooling: | Passive convection cooling |
| Control: | Standalone; DMX; Sound to light via microphone; Master/slave function; QuickDMX via USB (optional); W-DMX wireless solution via USB (optional); CRMX by LumenRadio via USB (optional) |
| Preprogrammed in: | Light'J; LED PC-Control 512; EASY SHOW 2; Light Captain; EASY SHOW 2; EASY SHOW 3 |
| Beam angle: | 20° |
| Beam angle (1/2 peak): | 20° |
| Beam angle (1/10 peak): | 33° |
| Wavelength: | Ultraviolet (UV) 399 nm |
| Housing colour: | Black |
| Mounting system: | Mounting bracket |
| Display type: | LED display with 4 digits and 7 segments |
| Material: | Aluminium; metal |
| dimensions: | Length: 1.07 m
Depth: 6.5 cm
Height: 10.3 cm |
| Weight: | 2.85 kg |
| Noise rating: | Class 0 (no noise) |
| Power cable |
| Cable construction: | 3 x 0.75 mm² H05VV-F |
| Cable length: | 1.2 m |
| Mounting bracket |
| Pieces: | 2 pcs |
| Mounting hole diameter: | 1 x Ø20mm; 1 x Ø11mm; 2 x Ø7mm |
| Material: | Metal, 2 mm |
| Legal specifications |
| special product: | Not designed for household room lighting |
| Intended use: | Show effect lighting |
| EUROLITE SB-12 soft bag |
| Maximum capacity: | 20 kg |
| Carrying handle: | 2 pcs |
| Transport aid: | 1 x shoulder strap |
| Material: | Textiles |
| Colour: | Black |
| dimensions: | Width: 1.07 m
Depth: 17 cm
Height: 18 cm |
| Weight: | 570 g |
