the device is cooled by passive convection cooling
control via stand-alone; IR remote control; DMX; QuickDMX via USB (optional); Master/slave function; W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional); Sound to light via Microphone

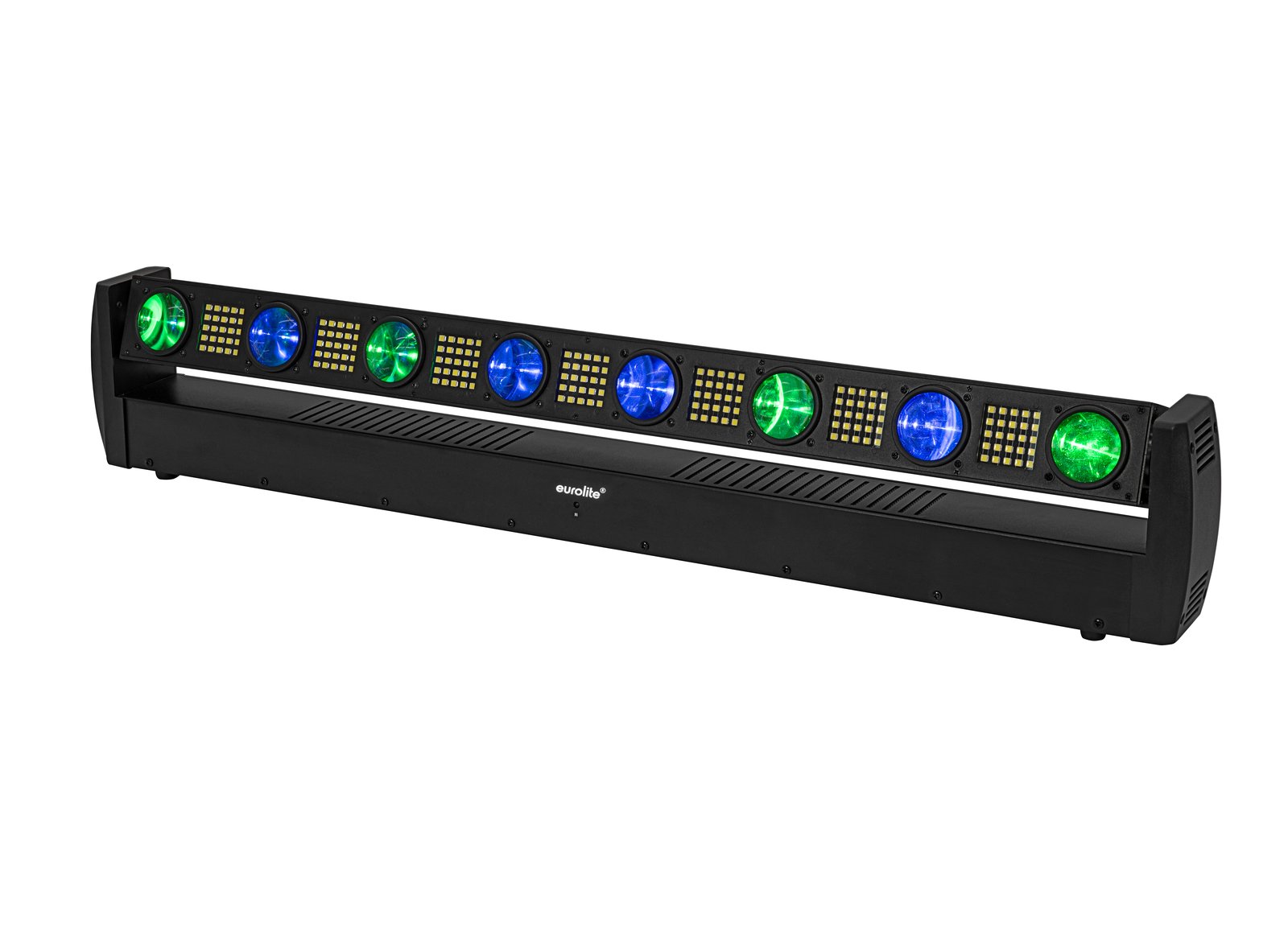

Tiltable LED light effect bar with 8 beams and strobe effect
Strobe effect; uplight effect; multi beam effect
Vertical inclination angle adjustable
Direct color selection for 18 preset colors
The device is cooled by passive convection cooling
Control via stand-alone; IR remote control; DMX; QuickDMX via USB (optional); Master/slave function; W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional); Sound to light via Microphone
4 digit 7-segment LED display
Dimmer electronic; color fade; color change; color blend adjustable; color selection
5 integrated show programs
Preprogrammed in Colorchief; Light Captain
With Mounting bracket
Mains input and output for power linking up to 8 units
For application areas such as: Clubs/dancing school; Stage; mobile djs/entertainer; Rental
175 powerful LEDs 0,2 W SMD 5050 cold white (CW) 7 segments controlled separately
With a beam angle of 120°
Package contents
1 x light effect, 1 x user manual, 1 x power cord, 1 x remote control, 1 x battery
Power supply:
100-240 V AC, 50/60 Hz
Power consumption:
80 W
IP classification:
IP20
Protection class:
Protection class I
Power connection:
Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided)
Power output:
P-Con (gray), mounting version
Fuse:
5 x 20 mm, T 1 A Fuse replaceable
Max. TILT movement:
215° Positioning
Flash rate:
0 - 20 Hz
DMX channels:
8; 12; 23; 27; 49
DMX input:
3-pin XLR (M) mounting version
DMX output:
3-pin XLR (F) mounting version
Cooling:
Passive convection cooling
Control:
Stand-alone; IR remote control; DMX; QuickDMX via USB (optional); Master/slave function; W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional); Sound to light via Microphone
Preprogrammed in:
Colorchief; Light Captain
Housing color:
Black
Attachment system:
Mounting bracket
Display type:
4 digit 7-segment LED display
USB port:
Typ A
Dimensions:
Length: 1 m Depth: 10,7 cm Height: 25,1 cm
Weight:
7,30 kg
Noise classification:
Class 1 (very slight noise, suitable for noise-sensitive environments)
Photobiological safety:
Risk Group 0
Spotlight
LED:
8 x 8 W high-power 4in1 QCL RGBW
Beam angle:
1°
Beam angle (1/2 peak):
1° multicolor
Strobes
LED:
175 x 0,2 W SMD 5050 cold white (CW)
Beam angle:
120°
Beam angle (1/2 peak):
120°
Remote control
Battery:
1 x Button cell 3.0 V CR2025 lithium manganese built-in
