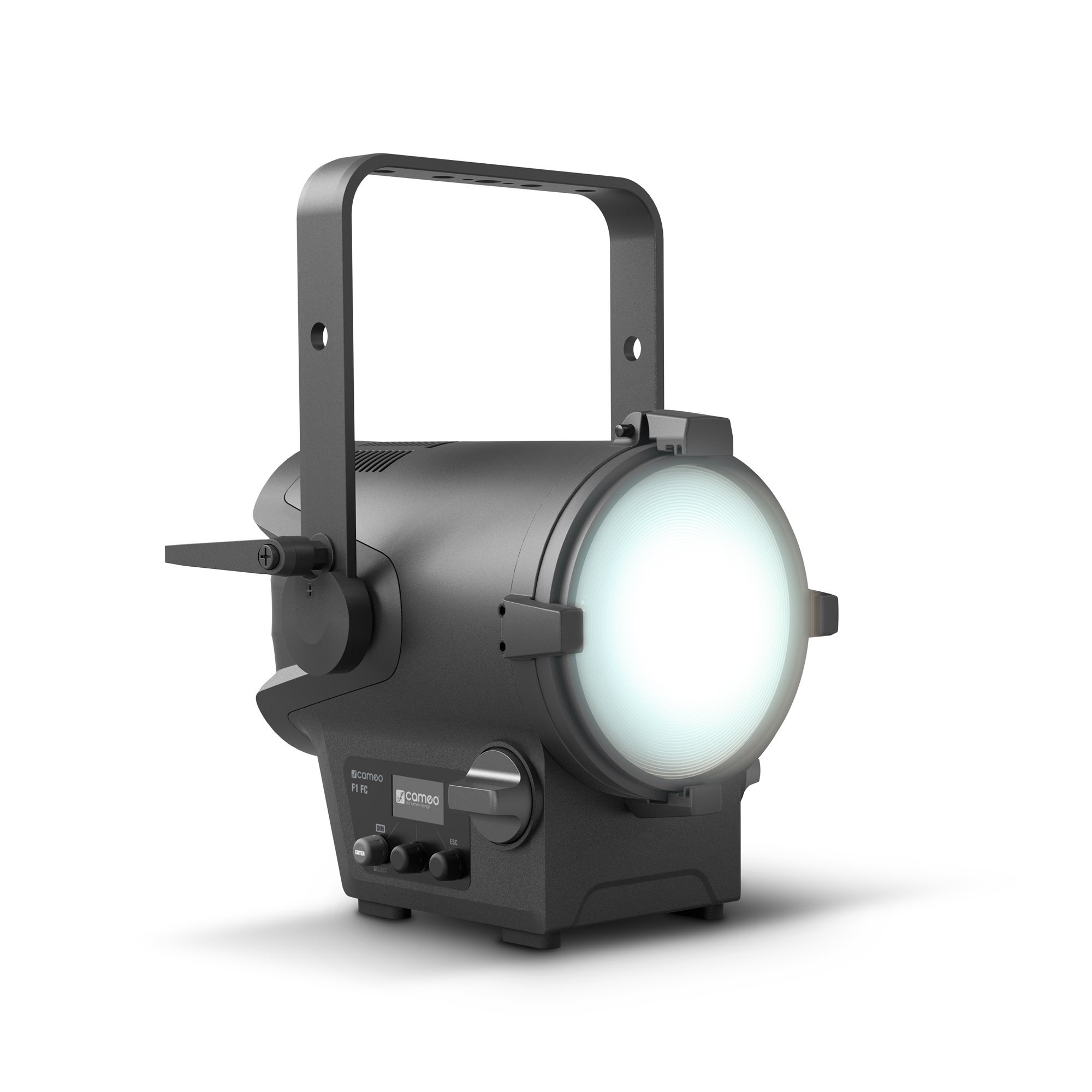

Cameo F1 FC


Theater spotlight

  • full-color Fresnel spotlight with RGBW-LED
  • 2,600 lm luminous flux replaces conventional 650W halogen Fresnel spotlights
  • powerful, vibrant color reproduction & continuous setting of the color temperature 1600 - 6500 K, CRI > 90
  • adjustable green-magenta correction

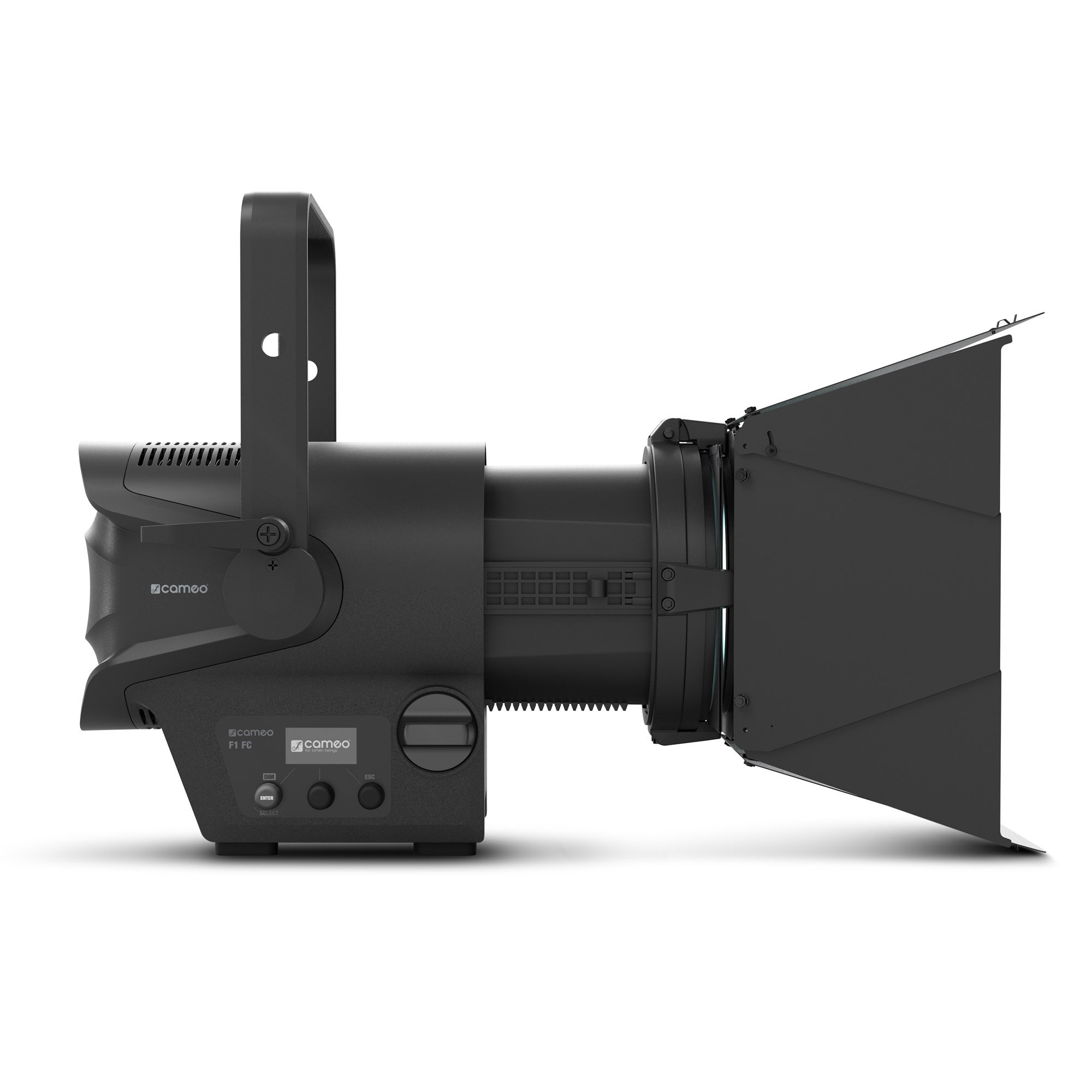

  • continuously variable zoom range (15° to 53°)
Cameo
Variants:
F2 D IP
F2 D IP
F1 D
F1 D
F4 T PO IP
F4 T PO IP
F4 T
F4 T
F2 T PO
F2 T PO
F2 FC PO
F2 FC PO
F4 FC
F4 FC
F2 FC IP
F2 FC IP
F2 T IP
F2 T IP
P2 T
P2 T
1 36279
Currently unavailable. Request details
Central warehouse: 0
Add to cart
7007 points of loyalty
Shipping free
Warranty 24 months
Returns 14 days

As an event technician and theater lighting designer you know: the requirements for a Fresnel spotlight are identical regardless of the size of the application - high quality of light in the most compact dimensions possible, natural color rendering, professional features such as adjustable PWM and silent mode and more. If the spotlight also has to cover the complete RGB color spectrum, the requirements catalogue gets thicker and thicker.

In addition to large, powerful spotlights with several kW light output, large theaters need smaller versions that fit seamlessly into the lighting concept. But what about smaller stages, theater festivals away from the big festivals, ensembles on tour in unusual locations?

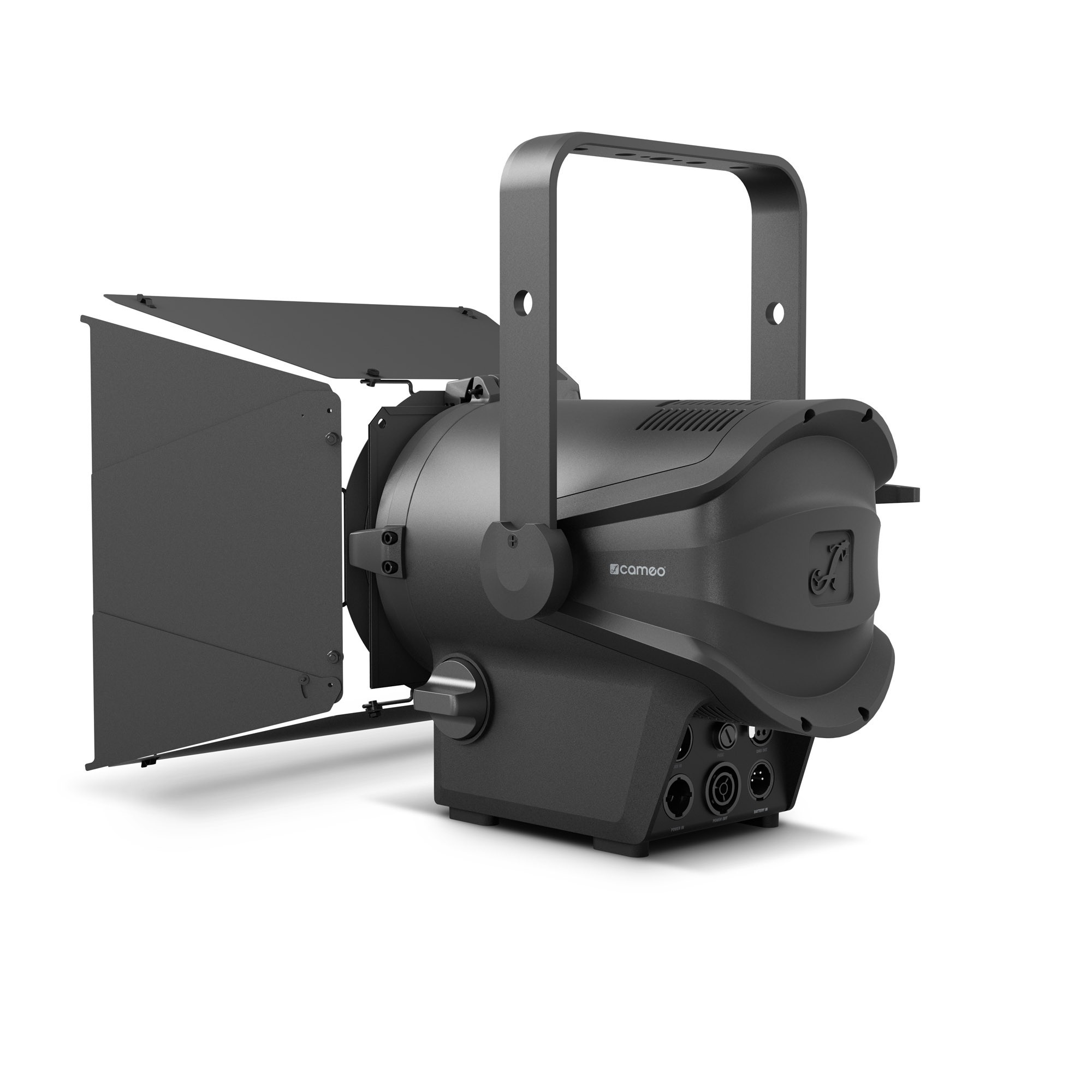

The F1 FC is an extremely versatile LED Fresnel spotlight with RGBW-LED for the theatre, live, broadcasting and film, which can be transported quickly and easily to any location and can work completely without power cabling if necessary.

Cameo's F series is rounded off by the F1, which is the most compact spotlight in the range. It uses less power compared with the larger models F2 and F4 and, with its 2,600 lm full color LED, effortlessly replaces conventional spotlights with comparatively inefficient 650 Watt halogen lamps. For professional use, the F1 FC is equal to its big brothers in every respect: RGBW color mixing in HSI mode for setting color, intensity and saturation quickly and precisely via three channels, a CCT mode for optimised white light rendition (CRI > 90) including green-magenta correction, a silent mode for practically silent use in noise-sensitive environments and flicker-free operation thanks to selectable pulse width modulation frequency up to 25 kHz.

Paired with the infinitely variable zoom range of 15° to 53°, you're free to use the F1 FC as a theatre or TV/film light: it works just as well as a high-performance front light or as flexible additional lighting, then wows the very next day when used as a durable spotlight on the street festival stage, and then finally wraps up the week as a natural light source in interviews. Frequently travelling lighting technicians are well aware of the wide range of requirements placed on spotlights and will love the compact, lightweight magnesium housing. In addition, the F1 T can be converted into a battery-operated spotlight for mobile use in just a few steps with the optional V-Mount battery plate.

All requirements covered? With the compact Cameo F1 FC, you can turn any production into a big success.

Specifications:

Product type: LED Fresnel Spotlight
Type: Theater Fresnel
Colour spectrum: RGBW
Number of LEDs: 10 x green, 10 x red, 20 x white, 6 x blue
LED type: 124 W (approx. 50000 operating hours), 87 W (approx. 50000 operating hours)
LED PWM Frequency: 800 Hz, 1200 Hz, 2000 Hz, 3600 Hz, 12 kHz, 25 kHz - adjustable
Dispersion: Beam Angle: 15 - 51 °, Field Angle: 26 - 75 °
Lens: 150 mm Fresnel

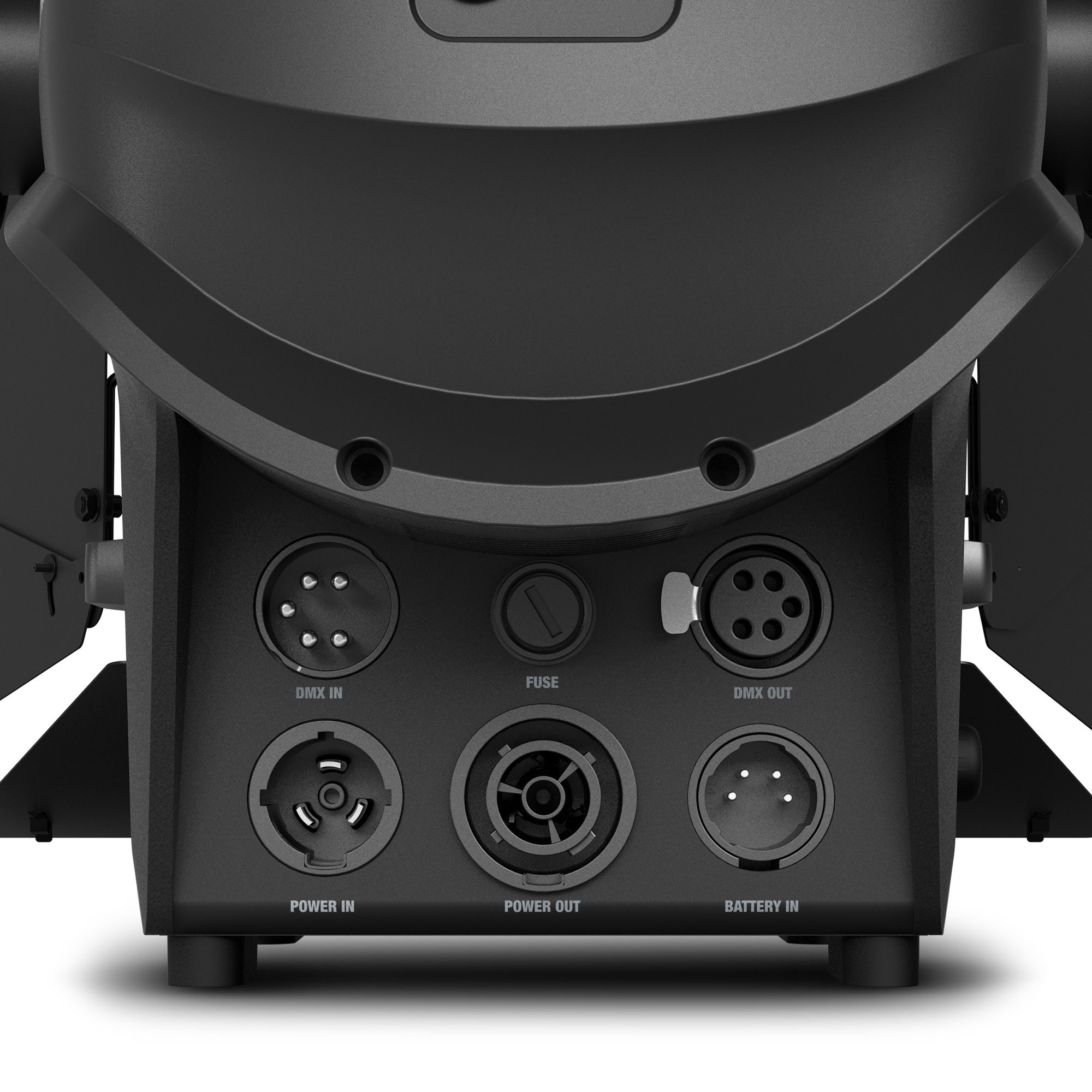

DMX input: 5-Pol
DMX output: 5-Pol
DMX Functions: CCT, colour macro, Device Settings, Dim to Warm, Dimmer, Dimmer Curve, Dimmer Fine, Hue Saturation, RGBW, RGBW Fine, Strobe
Standalone modes: Master / Slave mode, Static

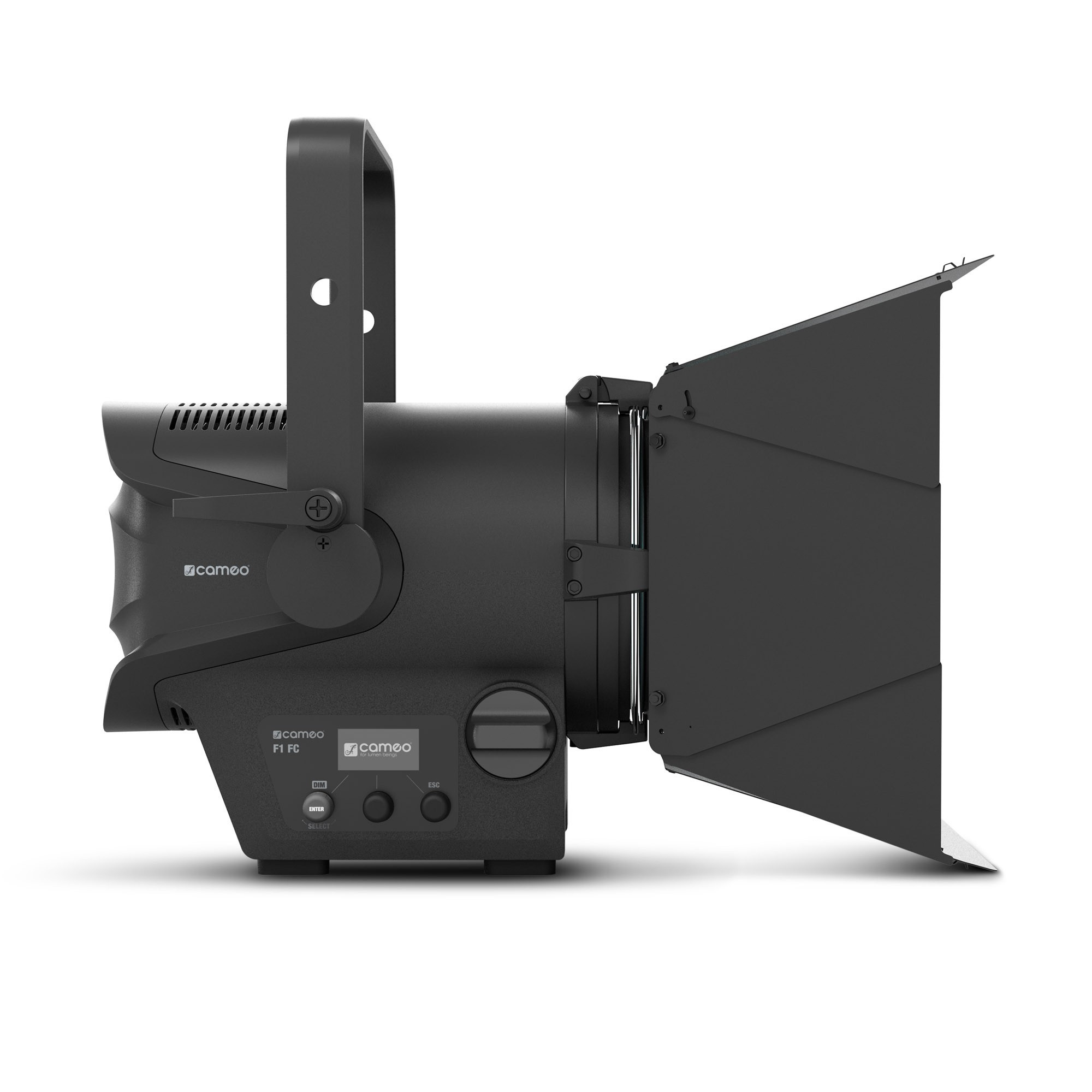

Controls: Push encoder
Indicators: OLED Display
Operating voltage: 100 V AC - 240 V AC, 50 - 60 Hz
Power consumption: 128 W

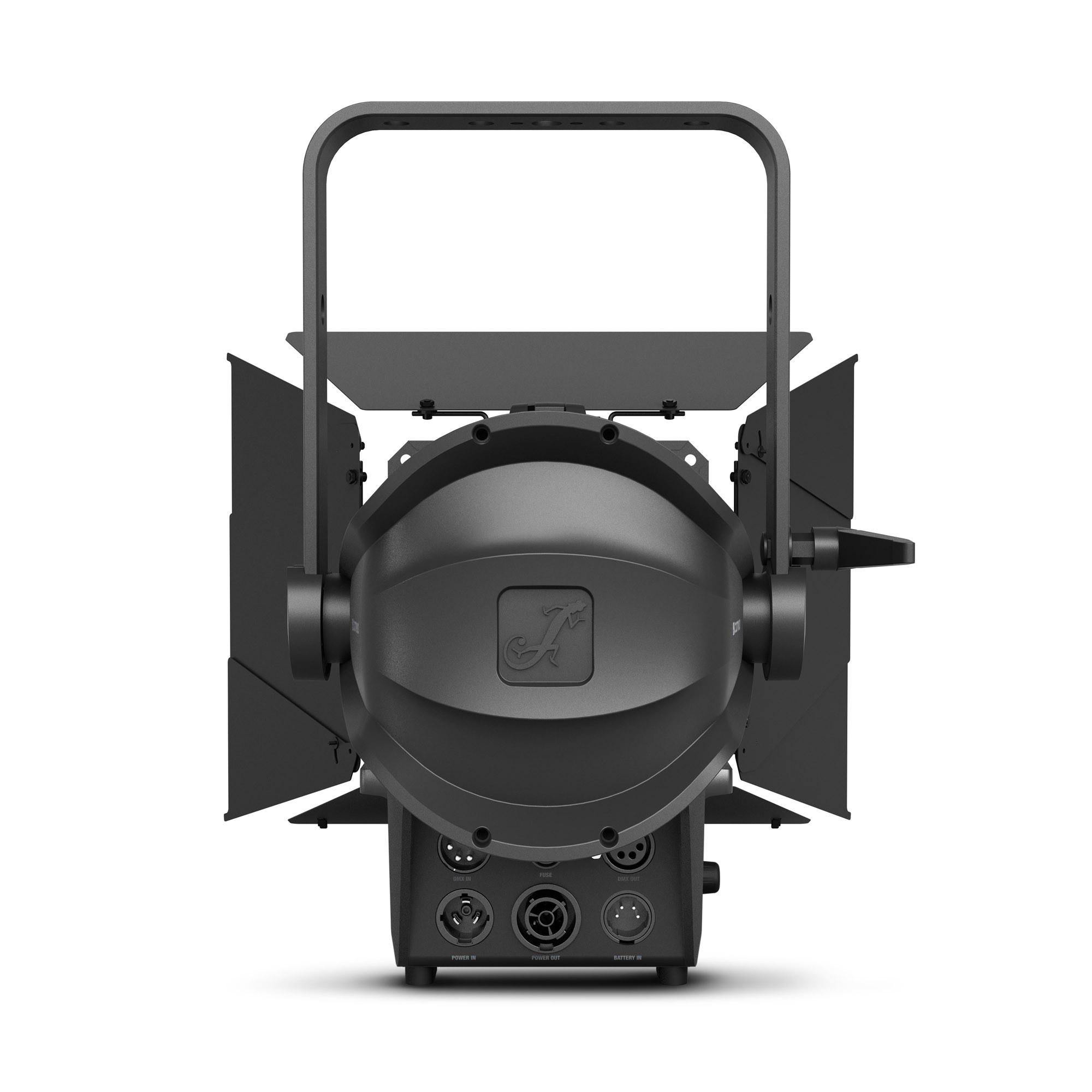

Power supply connector: TRUE1 Compatible Power I/O Socket
Power supply connection: 4-pin connector
Housing material: Magnesium
Cabinet colour: Black
Protection class IP: IP20
Cooling: Combination of Heat Pipe and Temperature Controlled Fan
Luminous flux: 2600 lm
Efficiency: 20 lm/W
Color temperature: 1600 - 6500 K, 5600 K
Operating Temperature: -15 - 40 °C
Width: 225 mm
Height: 255 mm
Length: 280 mm
Weight: 4,5 kg

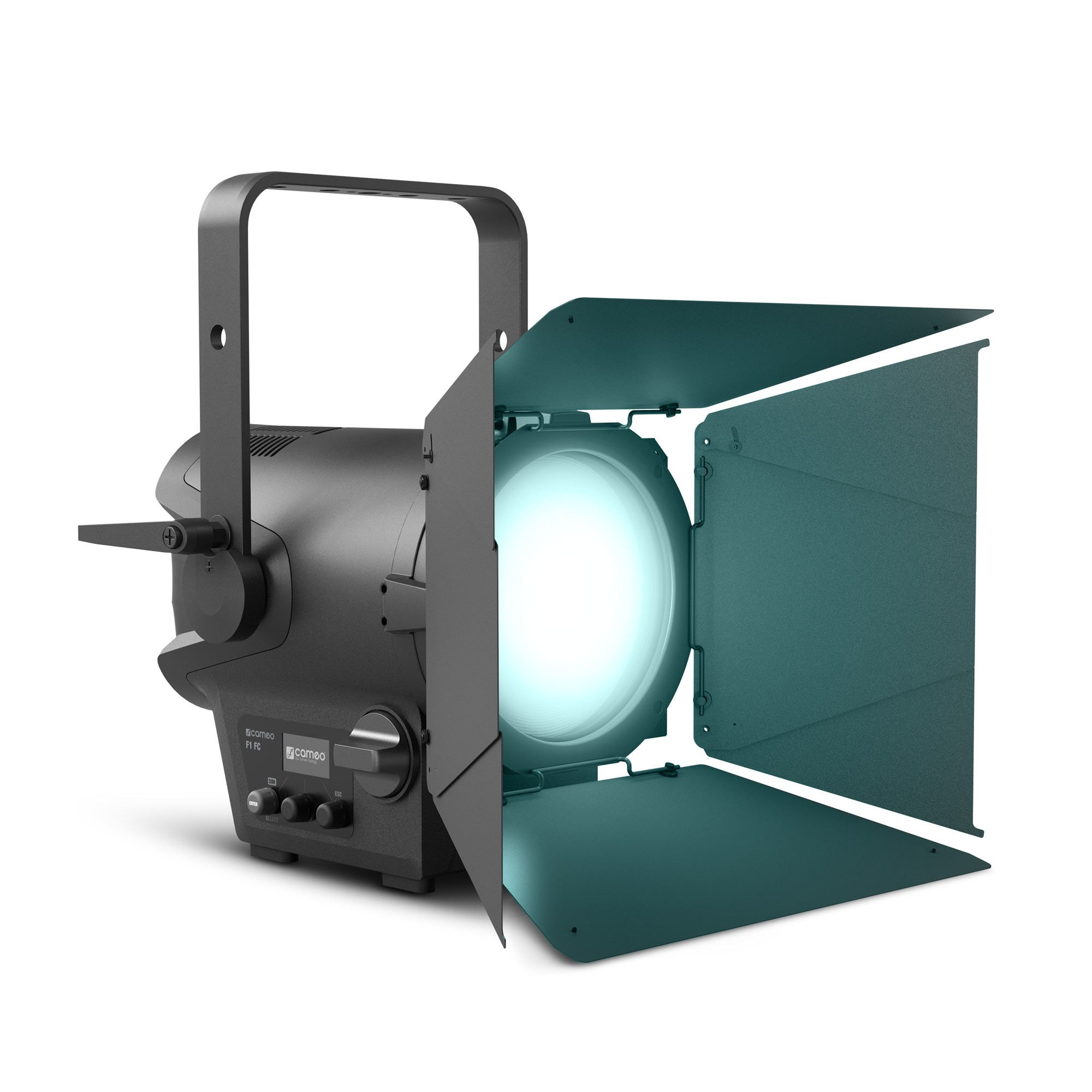

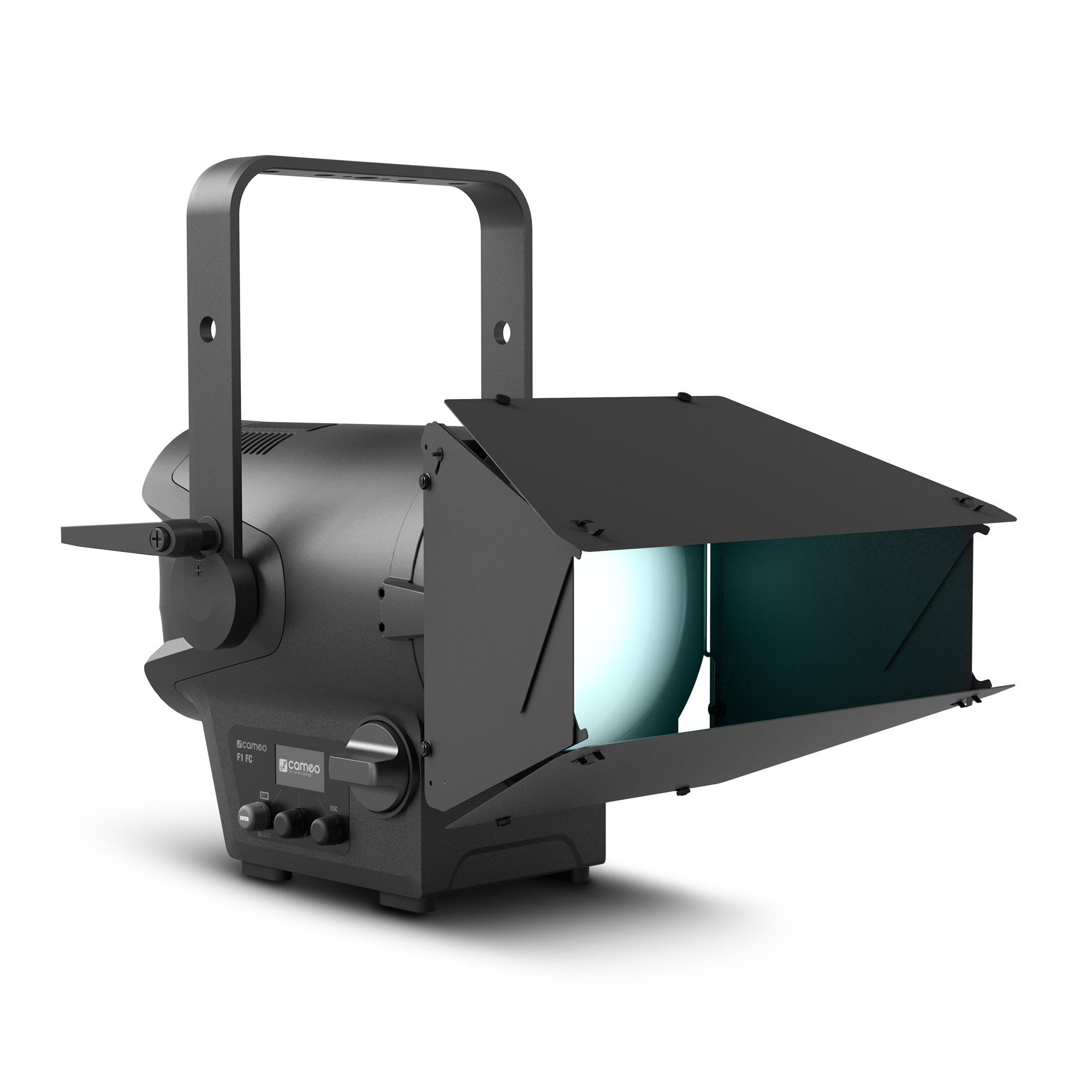

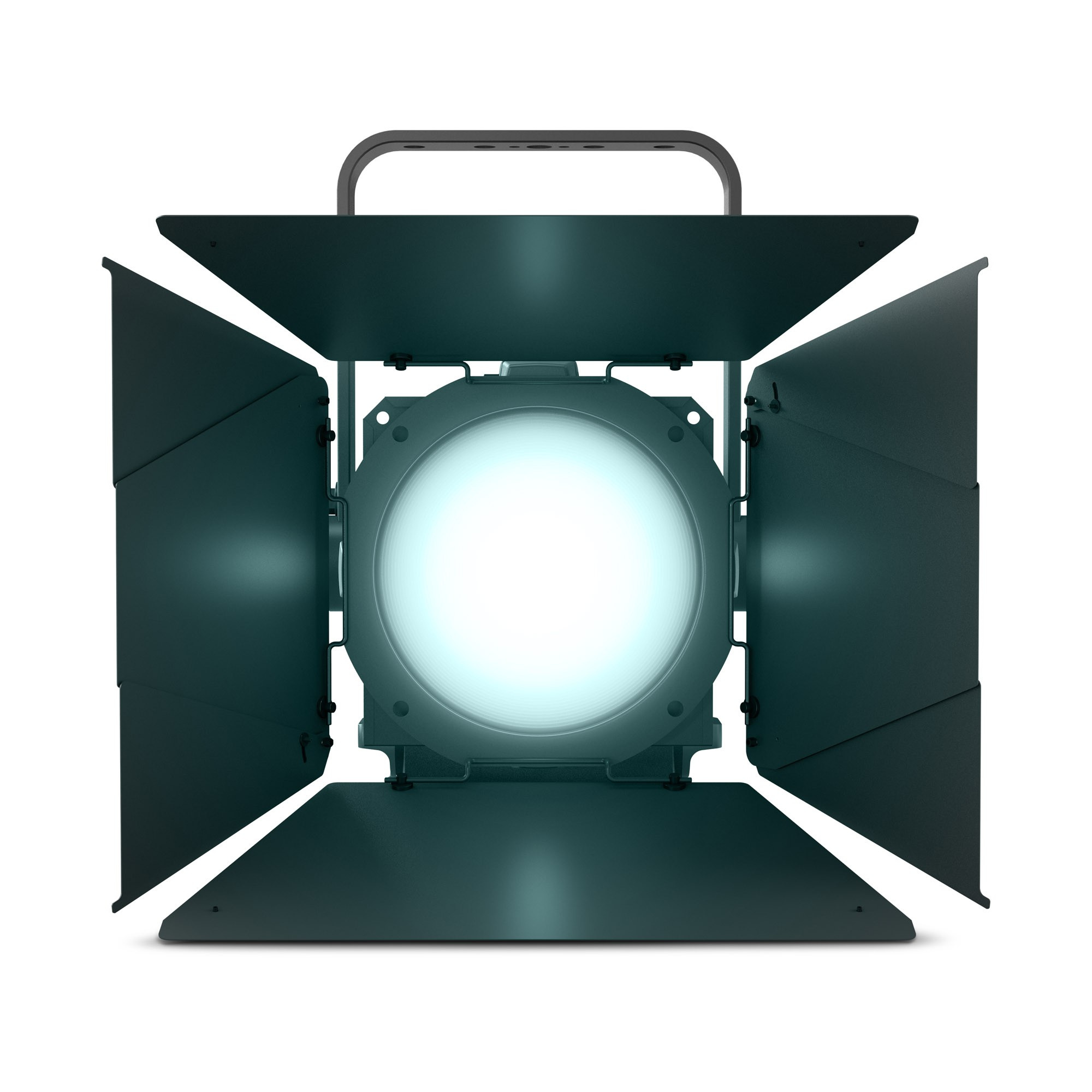

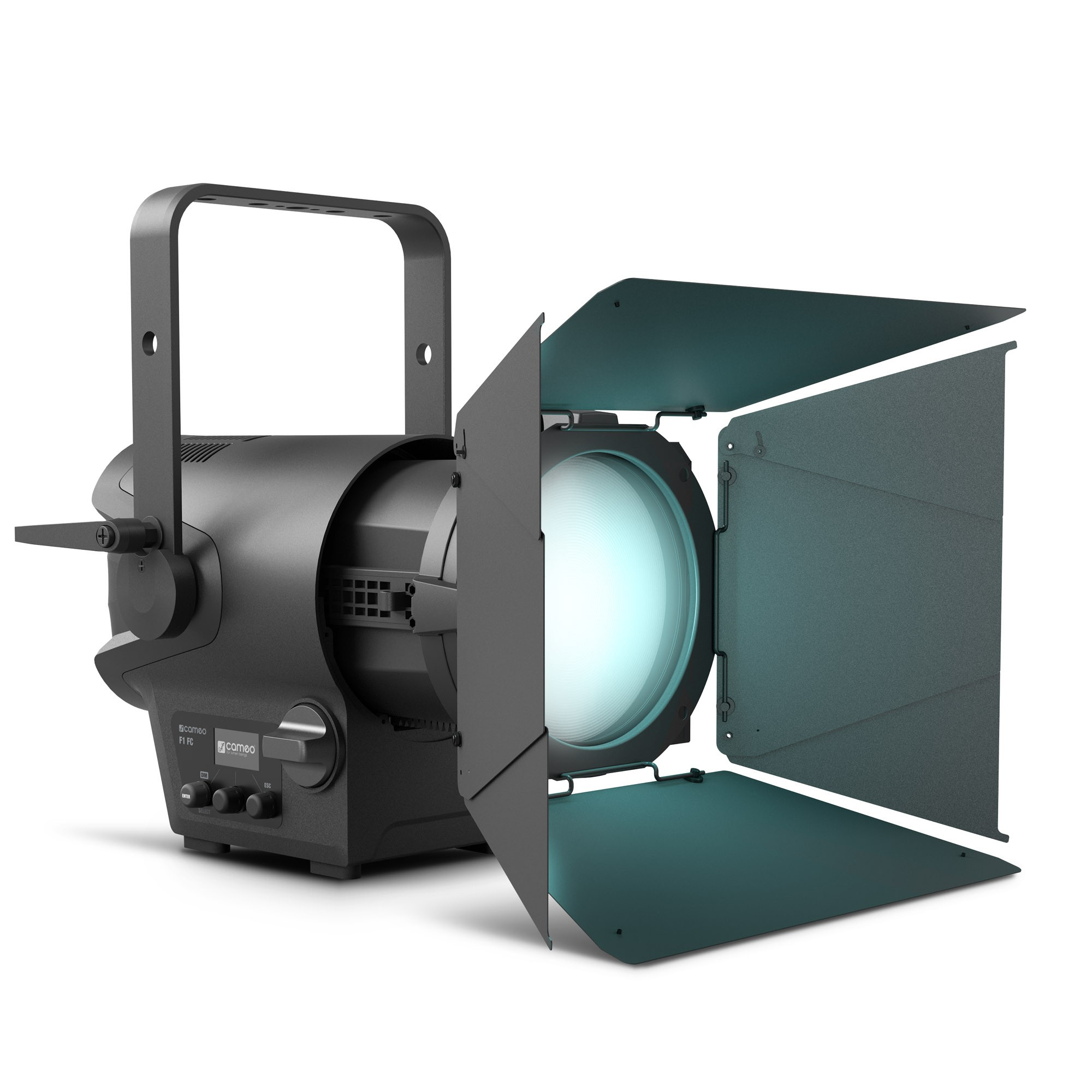

Accessories (included): 8-way barndoor, gel frame, Power cord




Product code: CLF1FC

Unit of sale: piece
