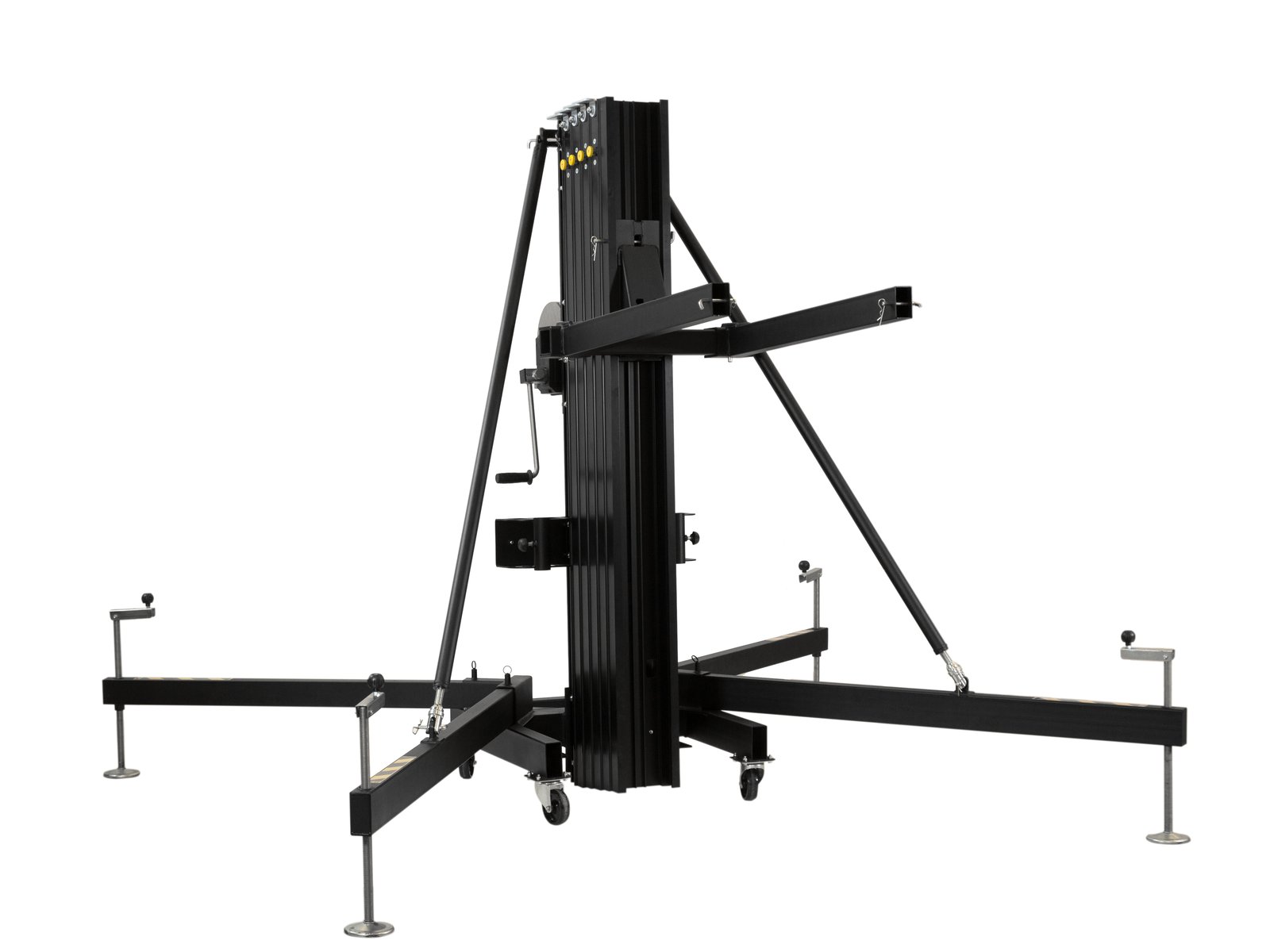

Block And Block ALFA-100 Truss lifter 400kg 8m

Truss stand

supports loads up to 400 kg with adjustable height.
telescopic support with five sections for versatility.
includes safety pins and locking mechanisms for stability.
features a corrosion-resistant epoxy coating.
equipped with transport wheels for easy mobility.

7 404⁵⁹ €

Currently unavailable. Request details

Central warehouse: 0

Add to cart

Shipping free

Warranty 24 months

Returns 14 days

request details

Block And Block ALFA-100 Truss lifter 400kg 8m Add to cart: 7 404⁵⁹ €

High-quality truss stand for loads up to 400 kg, manufactured in the EU:

Telescopic support in five sections
Safety pins for locking sections at different heights
Locking pins in the base area for securing the arms
Arms with adjustable axle and steel plate with non-slip rubber base
Corrosion protection through epoxy coating
Water level to ensure a vertical position
Grounding connection
Transport wheels for moving the lift when retracted
AL-KO 1201 PLUS winch: maximum load 1350 kg with automatic holding brake
Galvanized steel ropes 7x19+1, manufactured according to standard 13414-1:2004, tensile strength 1770N/mm2
Material: Carbon steel S-275-J0H, manufactured according to standards EN10219 and EN10305.5
Adjustable height

Maximum load capacity:	400 kg
Minimum load:	40 kg
Height:	Maximum: 800 cm over 5 sections Minimum: 201 cm
Steel rope:	Ø 7 mm
Type (general supports):	Truss lift
Weight:	268.00 kg
