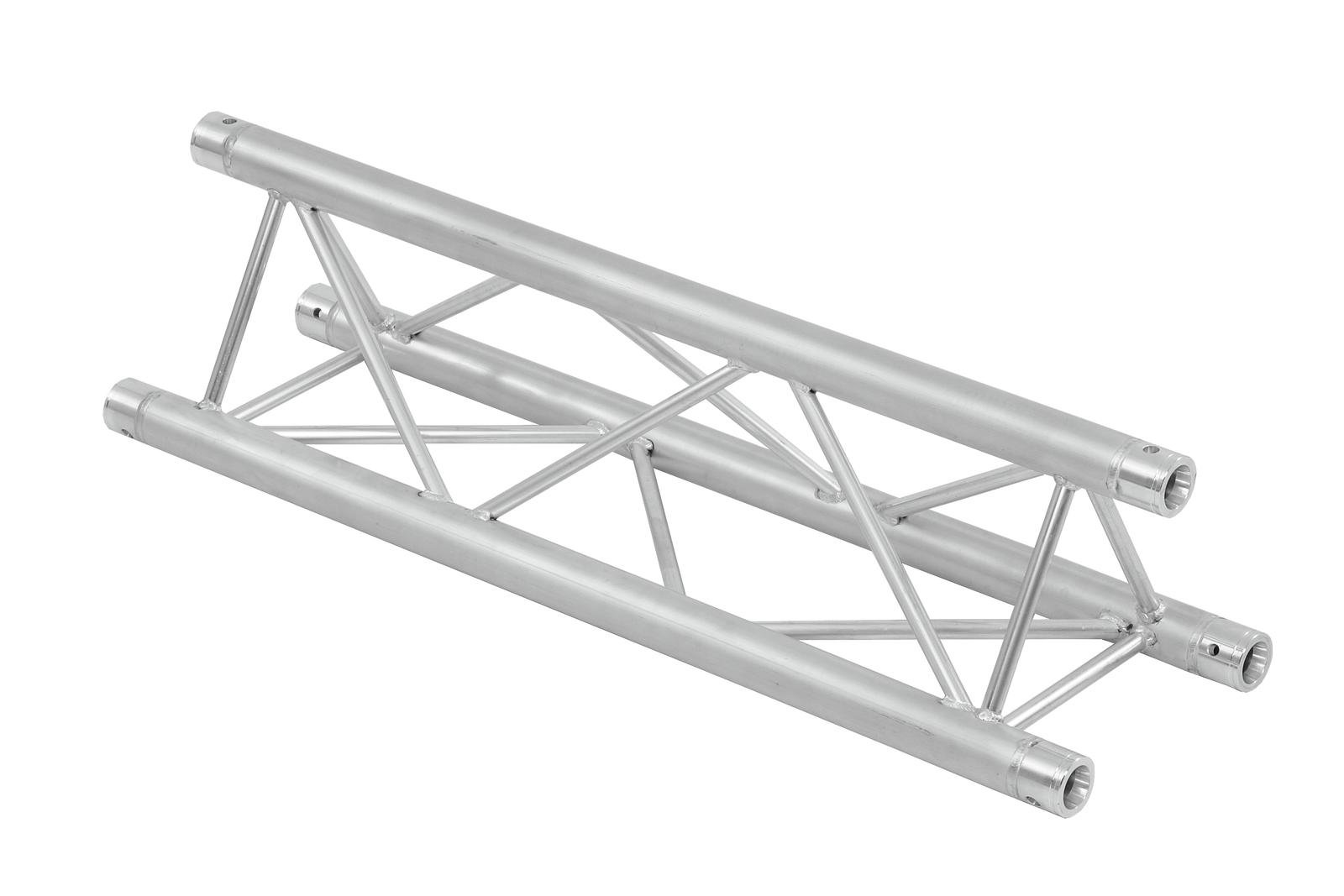

ALUTRUSS TRILOCK 6082-2000 cross beam in 3 directions
3-point fastening system
- Lightweight
- Easy installation
- Trusspipe: 50 mm
- TÜV Süd certified
- For applications such as: Theatre; Exhibition and shop setups; Clubs/dance schools
- For more information about this product, please consult the technical sheet in "Downloads"
Package contents

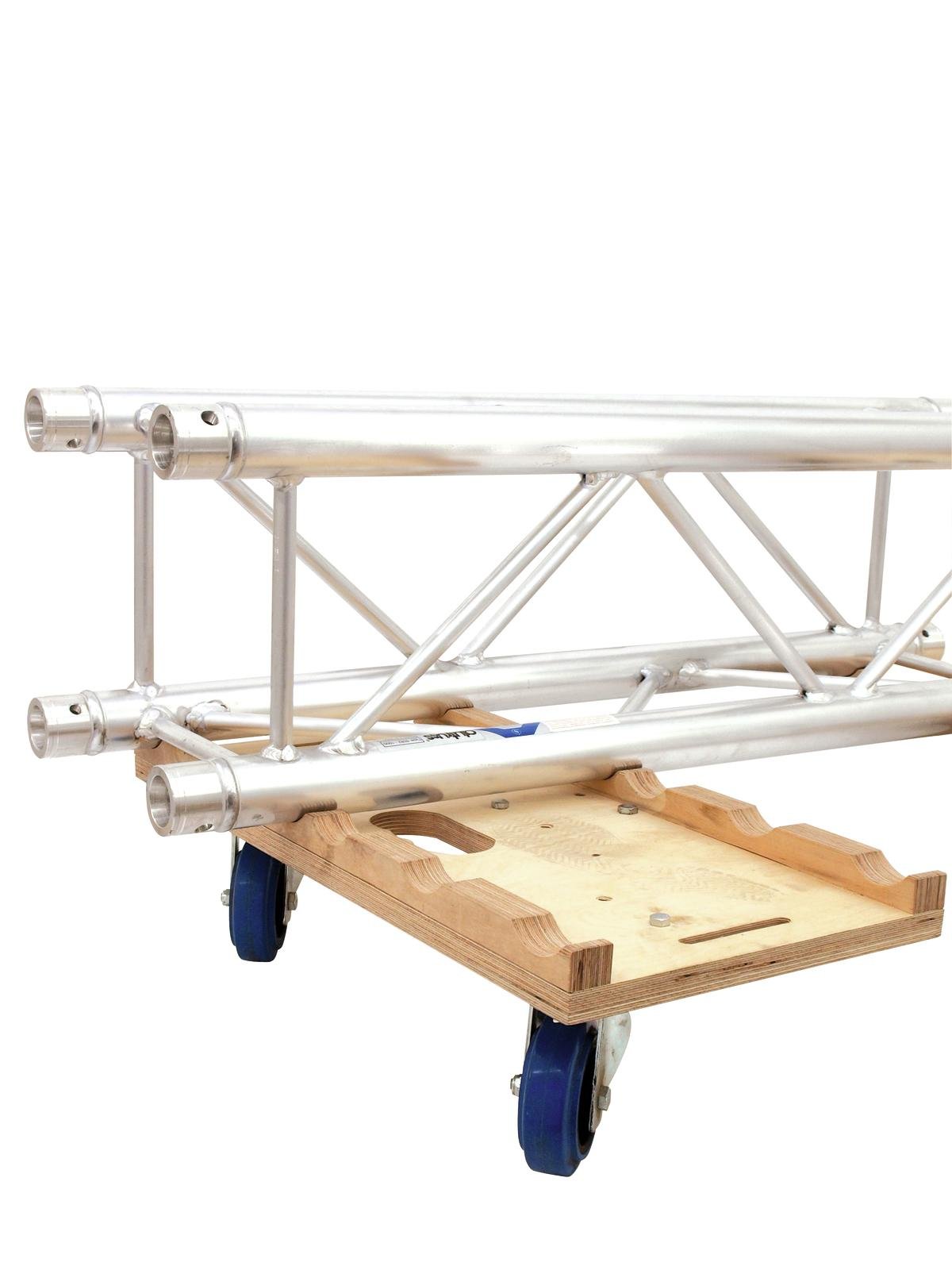

ALUTRUSS Truss Transport Board Combo for 3 wheels
Transport trolley for QUADLOCK and TRILOCK truss elements
- Practical transport trolley made of multiplex wood
- Suitable for QUADLOCK and TRILOCK truss elements with 290 mm
- Quick and safe stacking with optional stacking trolleys
- Cutouts for safety belts for the safe transport of truss elements
- Grip hole
- 12 holes for wheel mounting (optional)

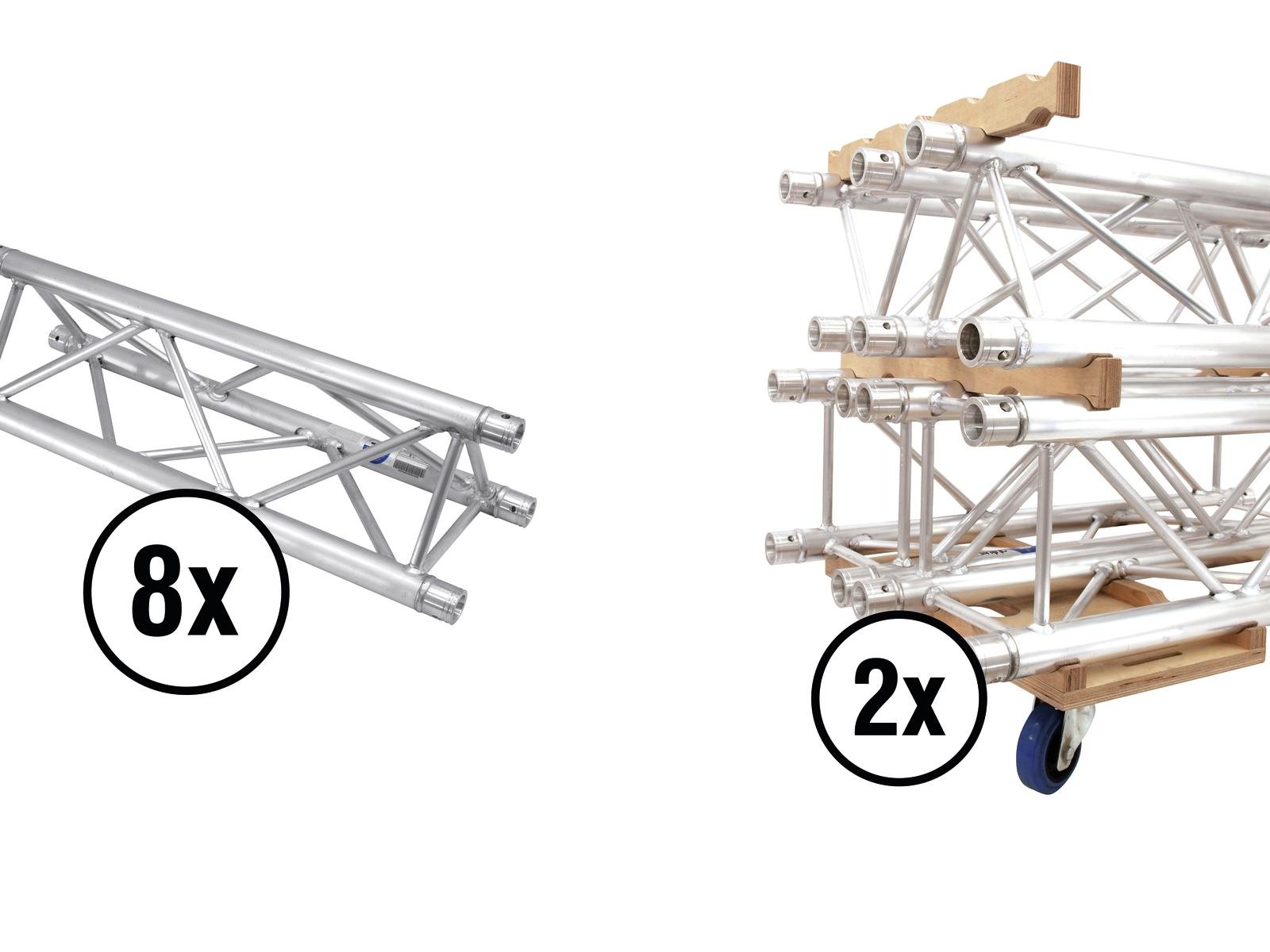

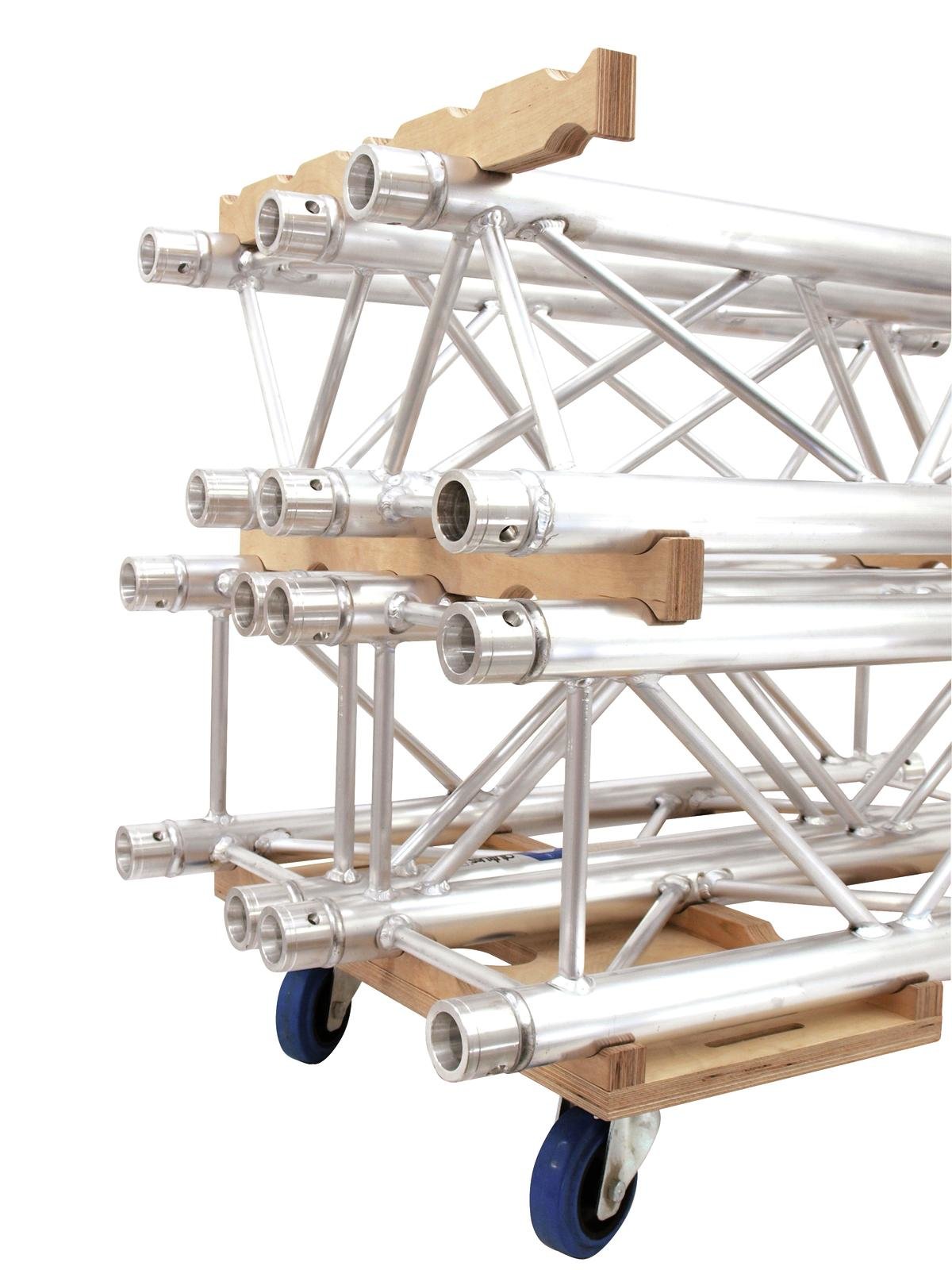

- The combination of 2 transport trolleys and 10 stacking ridges allows the transport of 12 truss elements (recommended maximum load)
- Made in Germany
ROADINGER Swivel Castor 100mm BLUE WHEEL light blue
100 mm swivel castor
- Double stroke with ball
- Steel housing, zinc-coated
- Bearing for the stroke hub with rollers
- Wheel with replaceable screws
- Load capacity: 450 kg per set (4 wheels)
- Made in Germany
- For more information about this product, please consult the technical sheet in "Downloads"
ROADINGER Swivel Castor 100mm BLUE WHEEL with brake
100 mm swivel castor
- Brake with double action (swivel and fixed)
- Double stroke with ball
- Steel housing, zinc-coated
- Bearing for the stroke hub with rollers
- Wheel with replaceable screws
- Load capacity: 450 kg per set (4 wheels)
- Made in Germany
- For more information about this product, please consult the technical sheet in "Downloads"
ROADINGER Screw Set for wheels
Complete set (4 x screws, 4 x nuts, 4 x washers)
- Screw: M8 x30 hexagonal screw DIN933 zinc-coated
- Nuts: M8 hexagonal nut Kl.8 DIN 934 zinc-coated
- Washer: size 8.4 DIN125 electro-zinc-coated

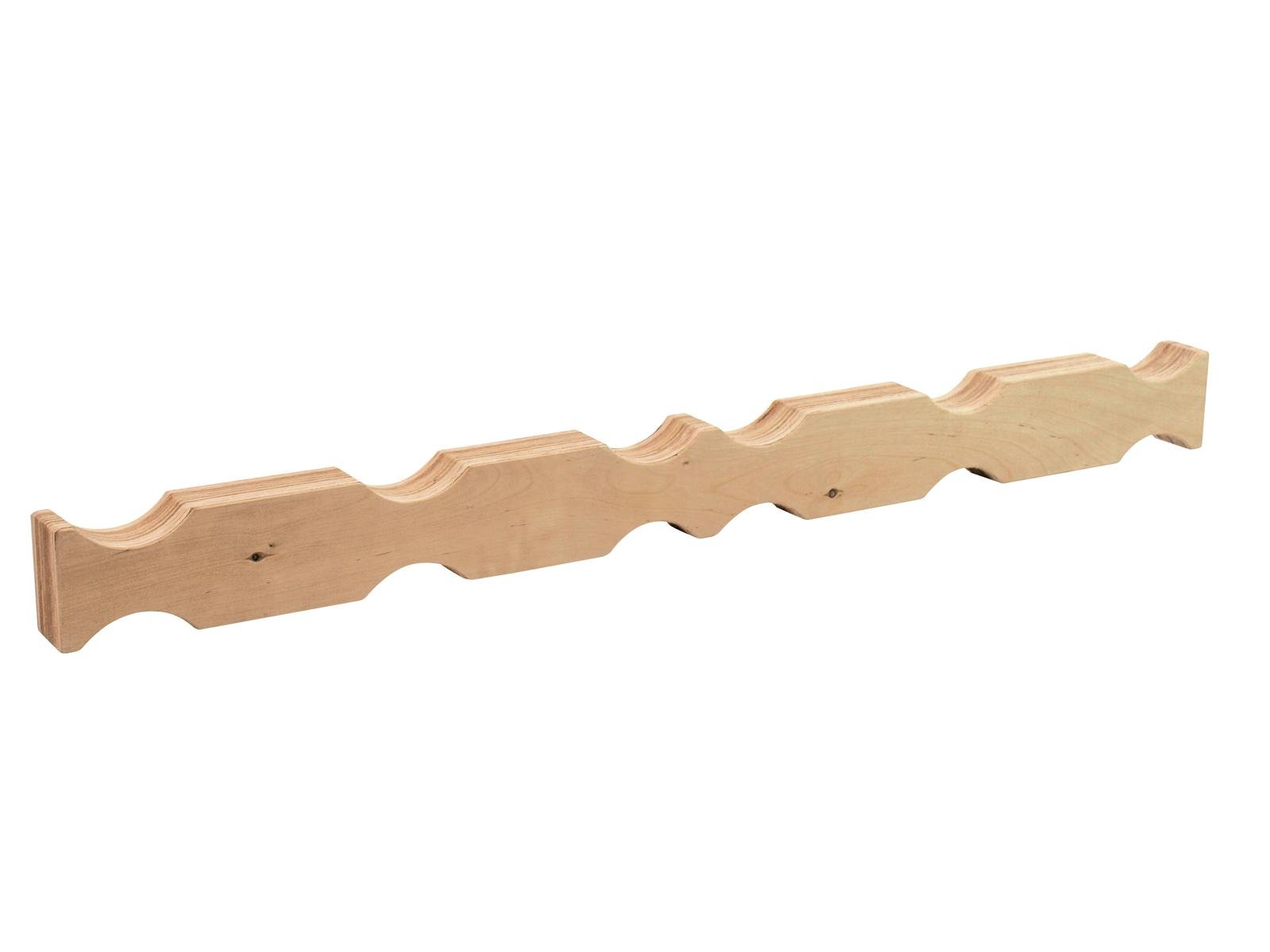

ALUTRUSS Truss Transport Ridge Combo
Stacking ridge for QUADLOCK and TRILOCK truss elements
- Stacking ridge for quick and safe stacking of truss elements on suitable transport trolleys
- Suitable for QUADLOCK and TRILOCK truss elements with 290 mm
- Made in Germany
SHZ S400 Ratchet Strap 5m/25mm black
Ratchet strap
- LC400/800daN surroundings
- With ratchet
- According to EN 12195-2
| Weight: | 79.58 kg |
| ALUTRUSS TRILOCK 6082-2000 cross beam in 3 directions |
| Established: | Easy installation |
| Trusspipe: | 50 mm x 2 mm |
| Welding technique: | TIG welding |
| Welding material: | AlMg 5 |
| Colour: | Coloured aluminium |
| Bar diameter x thickness: | 16 x 2 mm |
| Dimensions: | Length: 2 m
Width: 29 cm
Height: 25.70 cm |
| Weight: | 8.20 kg |
| ALUTRUSS Truss Transport Board Combo for 3 wheels |
| Maximum capacity: | 6 vertical truss systems (height approx. 2.10 m) |
| Dimensions: | Length: 60 cm
Width: 30 cm
Height: 4.10 cm |
| Weight: | 2.19 kg |
| ROADINGER Swivel Castor 100mm BLUE WHEEL light blue |
| Colour: | Light blue |
| Dimensions: | Height: 12.8 cm
Diameter: Ø 10 cm |
| Weight: | 660 g |
| ROADINGER Swivel Castor 100mm BLUE WHEEL with brake |
| Colour: | Light blue |
| Dimensions: | Height: 12.8 cm
Diameter: Ø 10 cm |
| Weight: | 930 g |
| ROADINGER Screw Set for wheels |
| Weight: | 90 g |
| ALUTRUSS Truss Transport Ridge Combo |
| Material: | Birch multiplex, 30 mm |
| Dimensions: | Length: 60 cm
Width: 3 cm
Depth: 5 cm |
| Weight: | 500 g |
| SHZ S400 Ratchet Strap 5m/25mm black |
| Standard: | EN 12195-2, |
| Colour: | Black |
| Dimensions: | Length: 5 m
Width: 2.50 cm |
| Weight: | 300 g |
