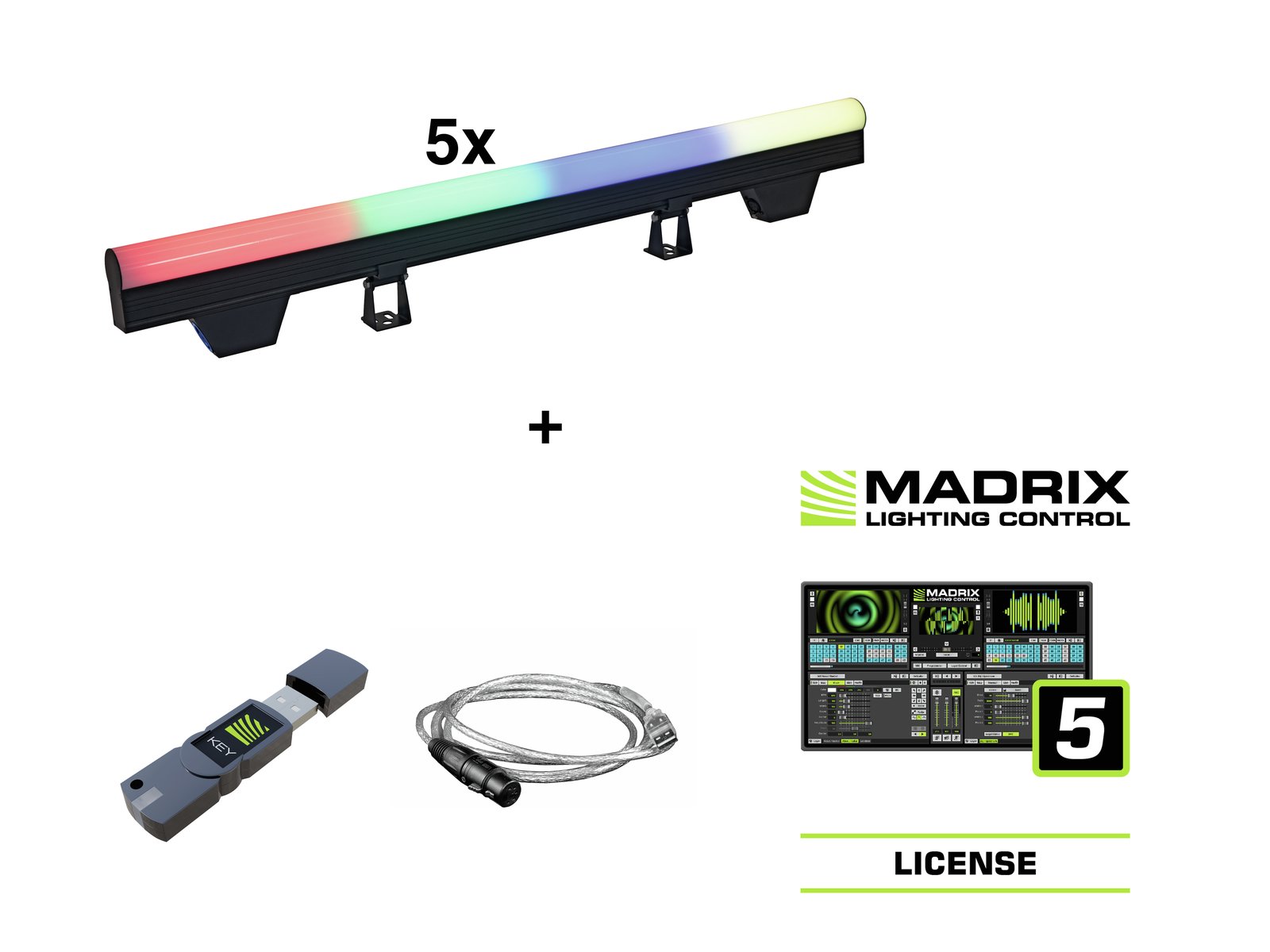

Eurolite Set 5x LED PT-100/32 Pixel DMX Tube + Madrix Software

DMX Tube EUROLITE LED PT-100/32 Pixel

DMX controlled pixel tube with RGB colour mixing

• Smartly designed DMX and power terminals for easy wiring
• 96 powerful SMD 5050 3in1 TCL RGB LEDs (homogeneous colour mixing)
  32 separately controllable segments
• Adjustable colour change; Electronic dimmer
• Strobe effect
• Integrated show programmes
• Direct colour selection for 17 preset colours
• Can be operated in 3; 5; 8; 48; 96 CH mode
• The device is cooled by passive convection cooling
• Standalone control; DMX; Sound to light via microphone; Master/slave function
• With a beam angle of 120°
• With mounting bracket
• LED display with 4 digits and 7 segments
• Preprogrammed in LED PC-Control 512; Light captain
• Silent operation
• Network input and output for connecting power up to 8 units

Package contents

• 1 x light effect, 1 x user manual, 1 x power cable

MADRIX Software 5 License Start

MADRIX 5 license start

• Includes 1 start of the MADRIX 5 license
• Requires a valid, empty, metallic MADRIX KEY
• Compatible with Win 7, Win 8, Win 10,
• Made in Germany
• German engineering

MADRIX USB ONE DMX512 Interface

USB-DMX cable to send/receive DMX signals with MADRIX software

• Can receive and process up to 512 DMX channels
• Can transmit up to 512 DMX channels
• Control via DMX
• Built with NEUTRIK connector
• The device can be connected via USB to PC in conjunction with MADRIX software
• Compatible with Win 7, Win 8, Win 10,
• Made in Germany
• German engineering

MADRIX KEY

MADRIX 5 KEY - no license

• Includes an empty MADRIX KEY
• Requires a corresponding MADRIX 5 license to activate functions or output for MADRIX 5 software
• The device can be connected via USB to PC
• Made in Germany
