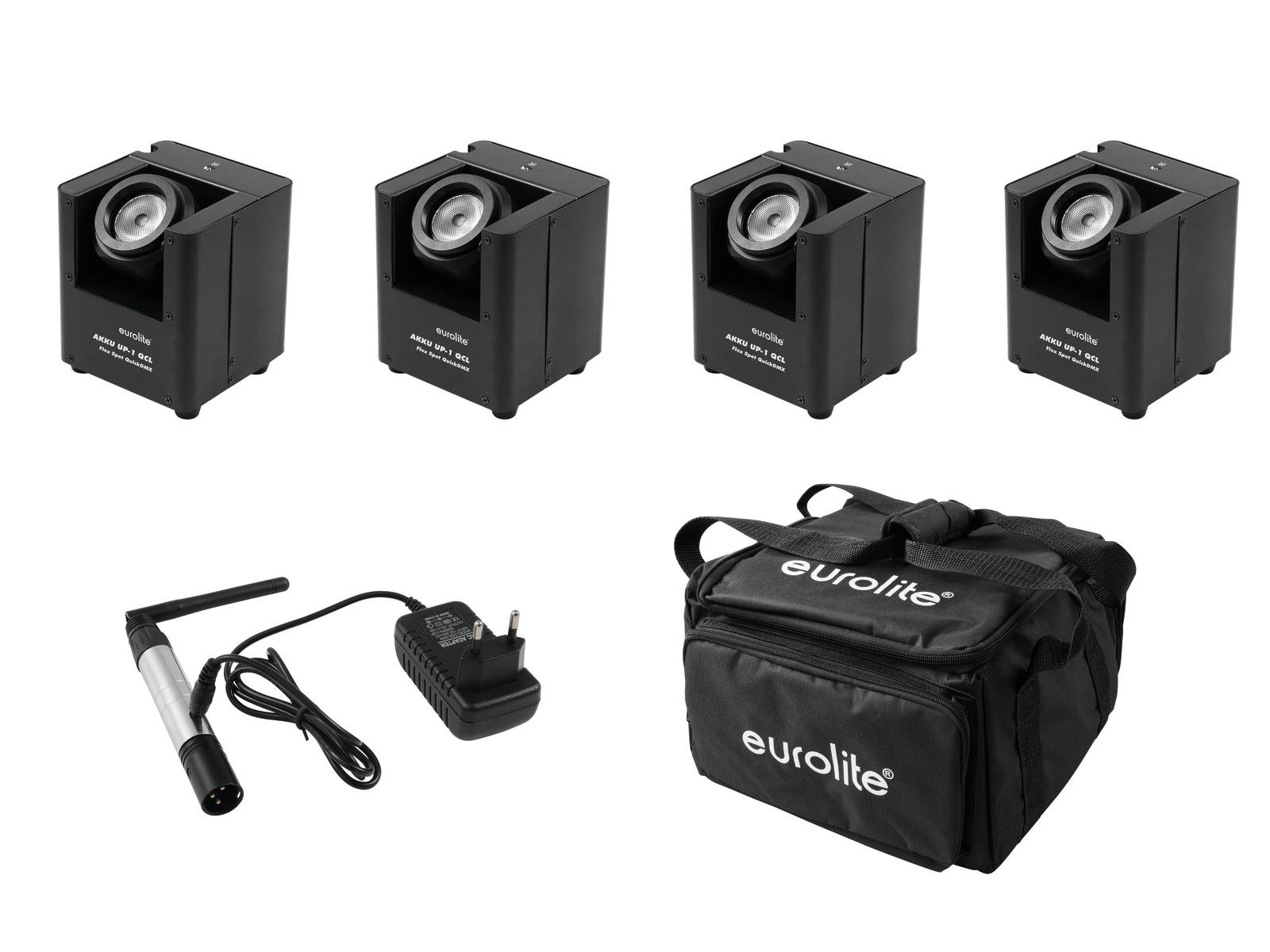

4x LED Uplight with black soft bag and wireless DMX transmitter
EUROLITE AKKU UP-1 QCL Flex Spot QuickDMX
LED lighting with 15 W 4in1 LED, tiltable head and QuickDMX transceiver
- Integrated QuickDMX transceiver for wireless DMX control
- Manually adjustable tilt angle of the LED head
- Interchangeable front lens for beam angle of 9° or 15°
- Battery operation up to 18 hours, depending on the programme used
- 1 powerful 15 W QCL RGBW 4in1 LED (homogeneous colour mix)
- Can be operated in 3; 4; 6; 8; 10 CH mode
- The device is cooled by passive convection cooling
- Control via DMX; standalone; QuickDMX; Sound to light via microphone; IR remote control
- Flicker-free
- With a beam angle of 9°
- For applications such as: Small creditor; Wedding/gala/events
- Dimmer curves with adjustable response; preset colours; colour mixing without steps; adjustable colour change; electronic dimmer
- Strobe effect
- Preprogrammed in Light’J; LED PC-Control 512; Light Captain; EASY SHOW 1; EASY SHOW 2; Easy Show 3
- Silent operation
- Wireless, flexible and versatile
- Integrated automatic battery charging and status indicator
Package contents
- 1 x reflector, 1 x external power adapter, 1 x remote control, 2 x battery, 1 x lens, 1 x Omega bracket, 1 x user manual, 1 x power cable
EUROLITE SB-4 Soft Bag L
Black soft bag for up to 4 devices, 320 x 320 x 200 mm
- The practical transport bag offers enough space for multiple lighting effects and accessories
- With dividers
- With 2 external pockets
- With 4 compartments for devices
- High-quality workmanship with nylon, black, water-repellent
- Interior with foam lining
covered with foam padding - 2 carrying straps
Wireless transmitter EUROLITE QuickDMX
Compact 2.4 GHz wireless DMX transmitter
- Easy-to-use 3-pin XLR adapter (male) with swivelling antenna
- Wireless DMX eliminates extensive cabling between the DMX controller and DMX-controlled units in lighting installations
- Due to GFSK modulation with 78 channels, interference-free operation, also alongside other QuickDMX transceivers and wireless devices in the 2.4 GHz band (e.g., Wi-Fi and Bluetooth)
- Simultaneous operation of up to 6 transmitters, thus controlling 3072 DMX channels (6 DMX universes) possible
- From 1 to 512 QuickDMX receivers can be controlled by each transmitter
- LED indication for functions
- Transceiver, to be used as transmitter or receiver
- Can transmit up to 512 DMX channels
- Control via QuickDMX; DMX; plug and play
- Operating range up to 400 m
Package contents
- 1 x device, 1 x user manual, 1 x declaration of conformity, 1 x external power adapter, 1 x USB cable
| Weight: | 9.51 kg |
| EUROLITE AKKU UP-1 QCL Flex Spot QuickDMX |
| Power consumption: | 15 W |
| IP rating: | IP20 |
| Protection class: | Protection class III |
| Power connection: | Battery/accumulator pack
Mains input via coaxial power connector (M) power cable mounting version with Euro plug (supplied) |
| Battery type: | 1 x lithium-ion 7.4 V, 8800 mAh, 65.12 Wh |
| Battery: | Battery operation up to 18 hours, depending on the programme used
Recharge time 6h |
| Type of lamp: | LED lamp |
| LED: | 1 x 15 W high-power 4in1 QCL RGBW (homogeneous colour mix) |
| DMX channels: | 3; 4; 6; 8; 10 |
| DMX input: | 1 x XLR mounting version (M) with 3 pins |
| DMX output: | 1 x XLR mounting version (F) with 3 pins |
| Cooling: | Passive cooling by convection |
| Control: | DMX; standalone; QuickDMX; Sound to light via microphone; IR remote control |
| Preprogrammed in: | Light’J; LED PC-Control 512; Light Captain; EASY SHOW 1; EASY SHOW 2; Easy Show 3 |
| Beam angle: | 9° |
| Beam angle (1/2 peak): | 9°
15° |
| Beam angle (1/10 peak): | 18°
30° |
| Housing colour: | Black |
| Carrier frequency: | 2.4 GHz |
| Dimensions: | Width: 12 cm
Depth: 12 cm
Height: 14.2 cm |
| Weight: | 2.21 kg |
| Noise classification: | Class 0 (no noise) |
| External power adapter |
| Power supply: | 100-240 V AC, 50/60 Hz
8.4 V 3 A |
| Remote control |
| Battery: | 1 x 3.0 V CR2032 lithium manganese button cell built-in |
| Legal specifications |
| Special product: | Not designed for household room lighting |
| Intended use: | Show lighting with effect |
| EUROLITE SB-4 Soft Bag L |
| Maximum capacity: | 25 kg |
| Carrying strap: | 2 pcs/piece |
| Material: | Nylon |
| Colour: | Black, water-repellent |
| Compartment dimensions: | 15 cm x 15 cm x 20 cm |
| Interior dimensions: | 31 cm x 34 cm x 20 cm |
| Dimensions: | Width: 32 cm
Depth: 41 cm
Height: 20 cm |
| Weight: | 520 g |
| Wireless transmitter EUROLITE QuickDMX |
| Power supply: | 100-240 V AC, 50/60 Hz
5 V DC 1 A |
| IP rating: | IP20 |
| Power connection: | Mains input via coaxial power connector (M) power cable mounting version with AC adapter (supplied) |
| DMX channels: | Output 512 |
| DMX input: | 1 x 3-pin XLR (M) |
| Control: | QuickDMX; DMX; plug and play |
| Carrier frequency: | 2.4 GHz |
| Modulation: | GFSK |
| Parallel mode: | Max. 6 transmitters |
| Range: | Operating range up to 400 m |
| Colour: | Silver |
| Dimensions: | Length: 21.2 cm
Diameter: Ø 1.8 cm |
| Weight: | 150 g |
