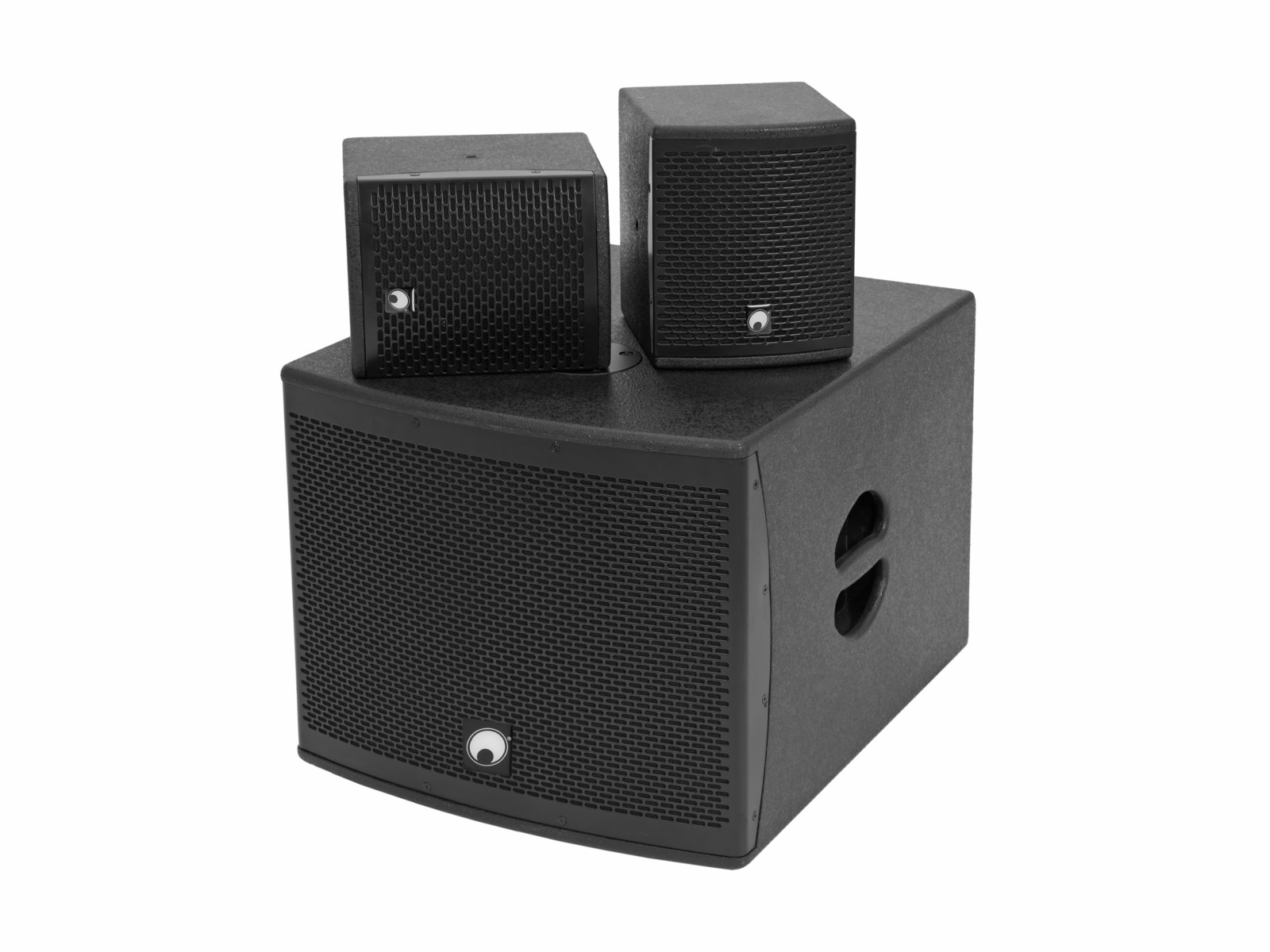

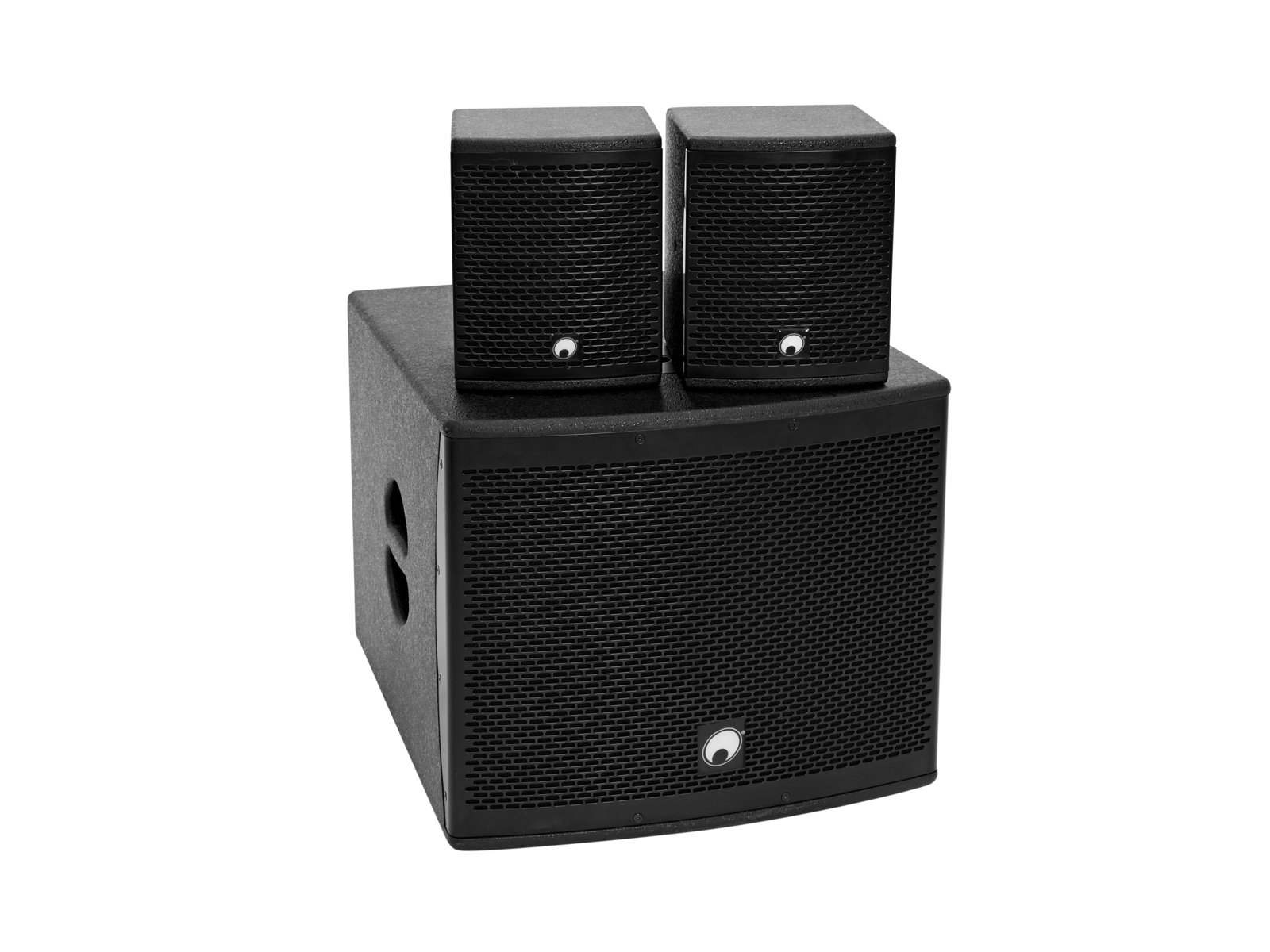

Active 12" subwoofer with DSP and Bluetooth, including 2 satellite speakers of 6.5"
OMNITRONIC MOLLY-12A Active black subwoofer
Active 12-inch subwoofer with DSP and Bluetooth
- 12-inch bass reflex subwoofer with DSP and RMS power of 700 watts
- Flexibly expandable with MOLLY-6 satellites for 2.1 and 4.1 configurations
- Class D amplifier controlled by DSP (500 W + 2 x 100 W)
- Integrated Bluetooth audio streaming
- 4 EQ presets with indicators
- Signal inputs via combo jacks (XLR/6.3 mm jack), RCA and 3.5 mm jack
- Separate volume control for subwoofer and satellites
- Stereo/mono selection
- Digital signal processor
- The device is cooled by a temperature-controlled fan
- Bluetooth control
- For applications such as: Mobile DJs/entertainers; Trade show and shop setups; Installation; home entertainment; restaurants, bars, and hotels; product presentations and lectures
- 2 robust transport handles
- Black metal grille with acoustic foam
Package contents
- 1 x user manual, 1 x power cable, 1 x declaration of conformity, 1 x bass, 2 x speaker cable
OMNITRONIC MOLLY-6 Top black 2x
6.5" satellite speakers with stand
- Pair of 8-ohm speakers with 6.5" woofer and 1" tweeter.
- For use with MOLLY-12A subwoofers for 2.1 and 4.1 configurations
- An adapter is required for optional stand mounting
- U-shaped extension support and cable available for connecting 2 satellite speakers
- With mounting bracket
- With hardware
- Black metal grille with acoustic foam
- 2 pieces per set
Package contents
- 2 x tops, 2 x mounting brackets, 4 x threaded screws, 2 x screw terminals
| Weight: | 31.00 kg |
| OMNITRONIC MOLLY-12A Active black subwoofer |
| Power supply: | 230 V AC, 50 Hz |
| Power consumption: | 1000 W |
| Output power: | 1 x 500 W RMS
2 x 100 W RMS (8 ohms)
2 x 200 W RMS (4 ohms) |
| Power connection: | Mains input via IEC connector (M) cable mount version with safety plug (provided) |
| Frequency range: | 40 - 160 Hz |
| Sensitivity: | 103 dB |
| Max. SPL: | 128 dB |
| DSP: | Digital signal processor |
| Cooling: | Temperature-controlled fan |
| Control: | Bluetooth |
| Attachment system: | Screws: M20 thread |
| Circuits: | Class D |
| Control elements: | Phase reverse switch |
| controls: | Soft start; short circuit; limiter; Overvoltage; overheating |
| Status LED: | Signal, power, limit, fault |
| Connections: | Input: line via 2 x 3-pin XLR/6.35 mm (F) combo jack (mounting version)
Input: line via 1 x 3.5 mm jack (stereo) mounting version.
Input: line via 1 x stereo RCA
Output: line via 2 x 3-pin XLR
Output: Top via 2 x built-in speaker socket (F) |
| Input channels: | 1 x stereo via combo jack or RCA or Bluetooth, channel control via rotary selector |
| Speaker: | 1 x woofer (12") approximately 30 cm
Voice coil (3") approximately 8 cm |
| Speaker type: | Subwoofer |
| Construction type: | Vented |
| Transport handle: | 2 pcs/piece |
| Material: | Birch plywood |
| Colour: | Black textured painted finish |
| dimensions: | Width: 47 cm
Depth: 57 cm
Height: 40 cm |
| Weight: | 22.10 kg |
| OMNITRONIC MOLLY-6 Top black 2x |
| Power: | Program: 260W
Rated power: 130 W RMS |
| Frequency range: | 150 - 20000 Hz |
| Sensitivity: | 95 dB (1W/1m) |
| Max. SPL: | 119 dB |
| Impedance: | 8 ohms |
| Attachment system: | 2x Mounting bracket |
| Flying points: | 2 x M8 thread |
| Connections: | 1 x built-in speaker socket (F)
1 x screw terminal |
| Speaker: | 1 x woofer (6.5") approximately 17 cm
Voice coil (1") approximately 2.5 cm
1 x Tweeter (1") approximately 2.5 cm |
| Speaker type: | Ceiling/wall speaker; Coaxial speaker |
| Material: | MDF (medium-density fiberboard) |
| Colour: | Black textured painted finish |
| Weight: | 8.90 kg |
