Fonestar SONORA-3TB

Fonestar SONORA-3TB -  Passive mounting speaker, equipped with a transformer for 100 V lines and low impedance option, ideal for fixed sound systems. Part of the SONORA series, this model reflects Fonestar's expertise in professional audio and is specifically designed for ambient sound applications and public address. With an elegant design and solid construction, the SONORA-3TB integrates perfectly into any type of space, from restaurants and cafes to shops, offices, or shopping centres.

The speaker delivers clear, balanced sound without distortion, making it suitable for both background music playback and vocal message transmission. It comes with all the necessary accessories for quick and easy installation, including an adjustable mounting bracket and screws. Reliability, versatility, and aesthetic finish make it an excellent solution for professional audio projects in commercial or institutional environments.

FEATURES:
• Speaker for professional sound, with 100 V line transformer and low impedance option

POWER:
• 20 W maximum
• 12 W RMS

BUILT-IN DRIVERS:
• 1 x 3” woofer

FREQUENCY RESPONSE:
• 130 - 20,000 Hz

IMPEDANCE:
• 12 W RMS @ 100 V (833 Ω)
• Low impedance: 8 Ω

SENSITIVITY:
• 84 dB @ 1 W / 1 m

MAXIMUM ACOUSTIC PRESSURE:
• 94 dB @ maximum power / 1 m

COVERAGE ANGLE:
• Horizontal / Vertical:
 – 270° / 270° @ 500 Hz
 – 180° / 180° @ 1 kHz
 – 120° / 120° @ 2 kHz
 – 100° / 100° @ 4 kHz (–6 dB)

MATERIAL:
• ABS housing with UV radiation resistance

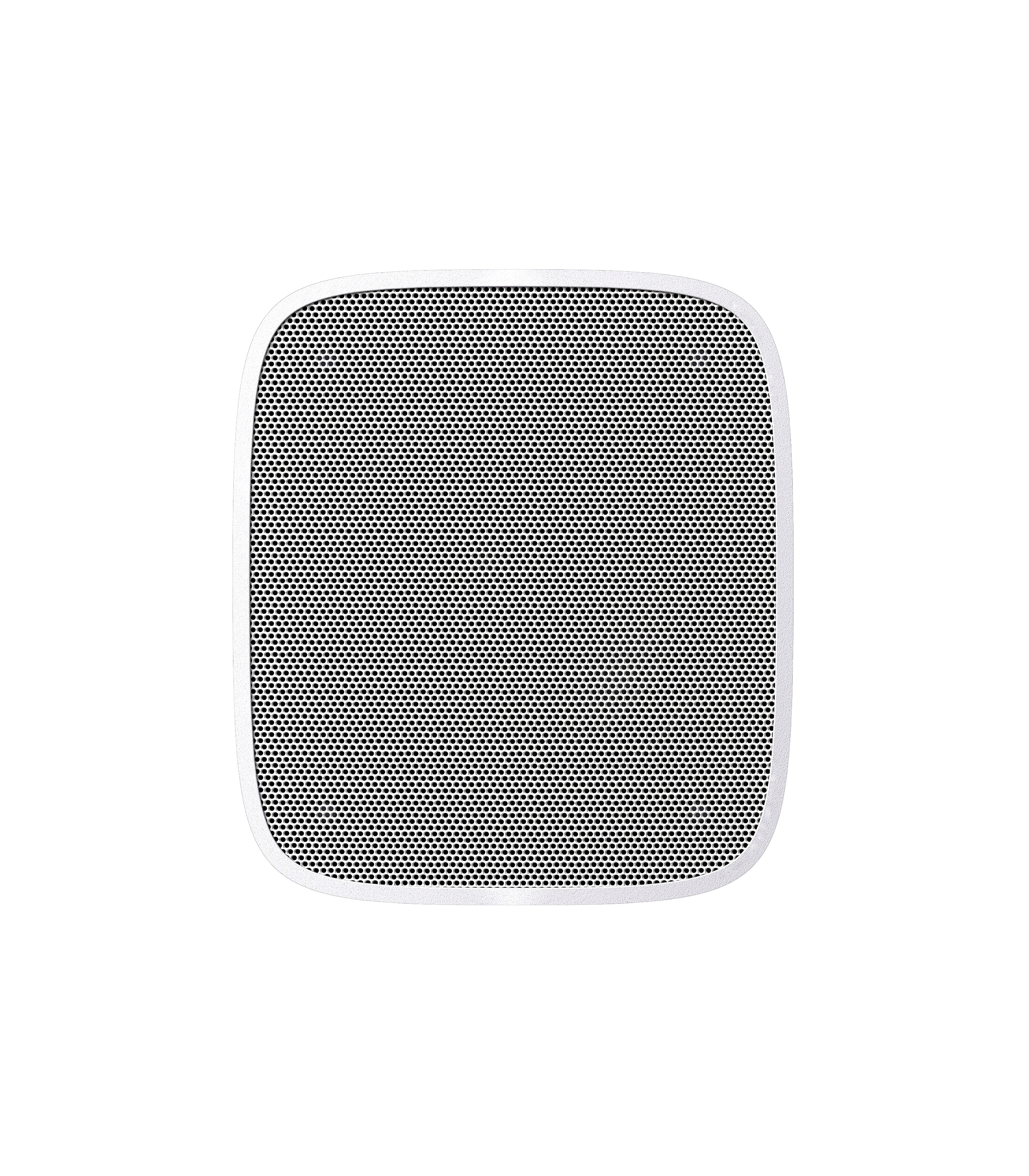

• Front grille made of aluminium, with electrostatic paint finish
• Weather-resistant support
• Stainless steel screws

SWITCH:

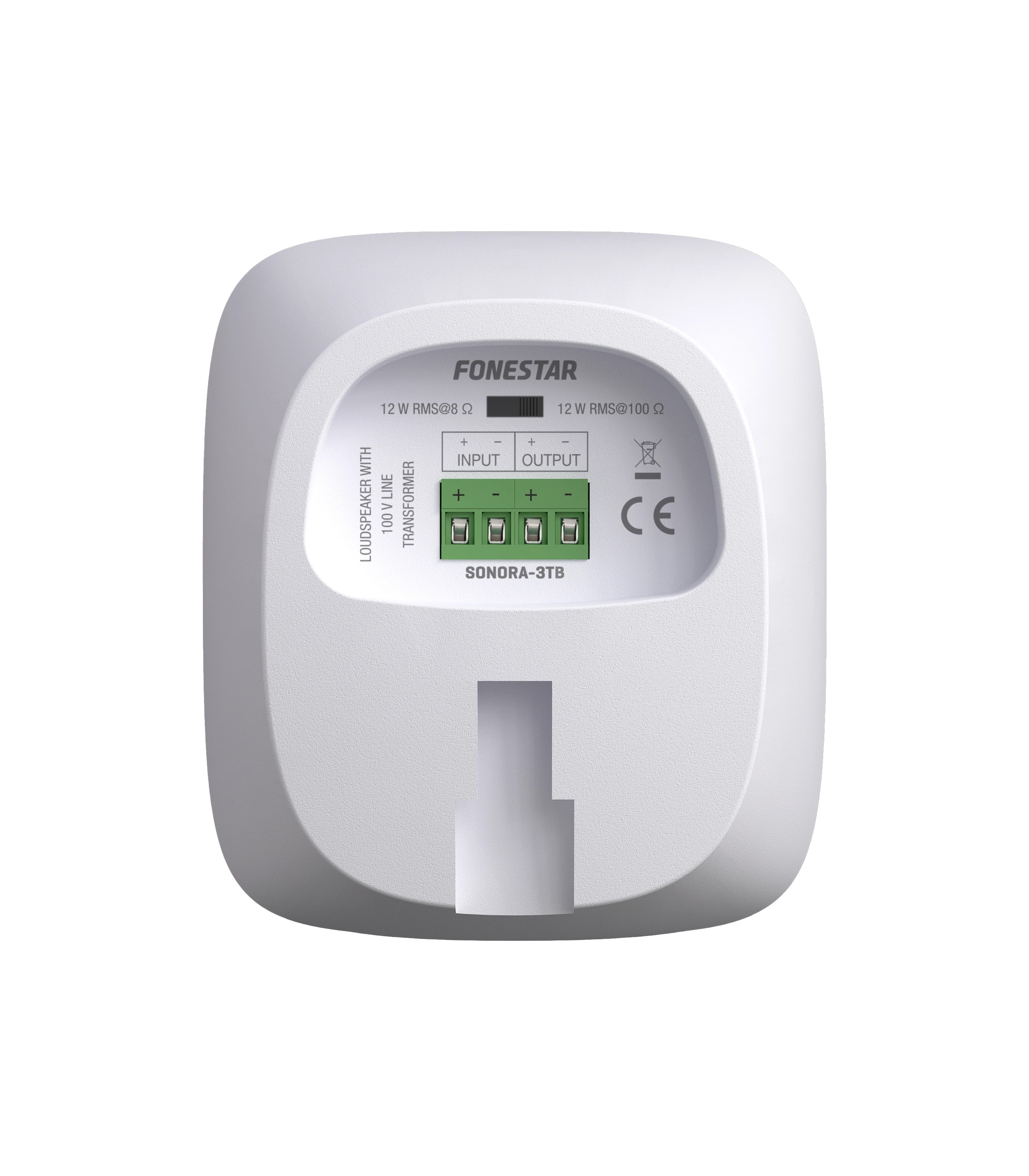

• Selector for operation on high impedance (High Z) or low impedance (Low Z)

CONNECTORS:
• Euroblock terminal (input and output) for cable with a cross-section of 0.25 – 2.5 mm²

TEMPERATURE RANGE:
• From –10°C to +60°C

COLOUR:
• White (RAL 9003)

DIMENSIONS:
• Speaker: 97 x 110 x 107 mm (depth)
• Wall mounting plate: 67 x 71 mm
• Speaker with support: 150 mm (depth)

WEIGHT:
• 0.7 kg

ACCESSORIES:
• Adjustable mounting bracket
 – Horizontal adjustment: ±30°
 – Vertical adjustment: +15° / –45°
