JTS MA-123

Attenuator

adjustable attenuator for balanced microphones
attenuation levels: -10 dB, -20 dB, -30 dB
frequency response: 20–20,000 Hz
input impedance: 1.6 kΩ @ -10 dB
compatible with low-Z balanced microphones and phantom power

29¹⁵ €

Currently unavailable. Request details

Central warehouse: 0

Add to cart

also deliverable via

150 points of loyalty

Shipping 8.00 €

Warranty 24 months

Returns 14 days

request details

JTS MA-123 Add to cart: 29¹⁵ €

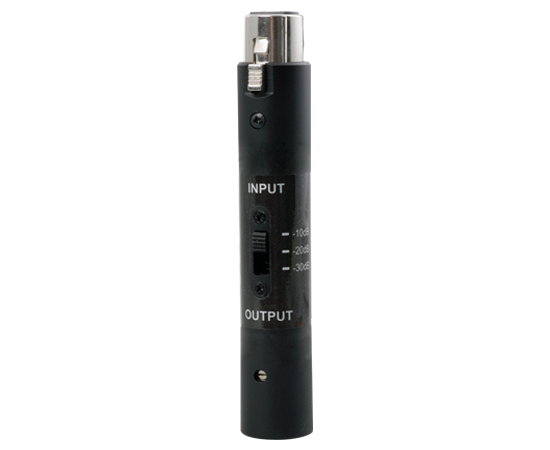

JTS MA-123 - adjustable attenuator for balanced microphones, connected between the microphone and the input of a mixer or preamplifier. It allows for signal level reduction of 10 dB, 20 dB, or 30 dB and can be used with microphones that use phantom power.

Adjustable attenuator for balanced microphones
Attenuation: -10 dB, -20 dB, -30 dB
Frequency response: 20–20,000 Hz
Input impedance: 1.6 kΩ @ -10 dB
Output impedance: 660 Ω @ -10 dB
Noise: < -115 dB
Distortion: <0.0011% @ -10 dB; <0.0012% @ -20 dB; <0.003% @ -30 dB
Input connector: XLR-Female
Output connector: XLR-Male
Compatibility: low-Z balanced microphones
Phantom power: compatible
Housing: metallic
Dimensions: Ø20.5 × 113.4 mm
Weight: 50 g
