Monacor SPH-165KEP

Mid-Range Speaker

ideal for high-quality Hi-Fi acoustic enclosures.
excellent performance in subwoofer applications and mid frequencies.
kevlar diaphragm for enhanced durability and sound quality.
power rating of 60W / 8 ohms with a peak power of 100W.
compact dimensions: 165 x 165 x 90 mm, weighing 1.71 kg.

146⁴⁷ €

Currently unavailable. Request details

Central warehouse: 0

Add to cart

also deliverable via

Shipping free

Warranty 24 months

Returns 14 days

request details

Monacor SPH-165KEP Add to cart: 146⁴⁷ €

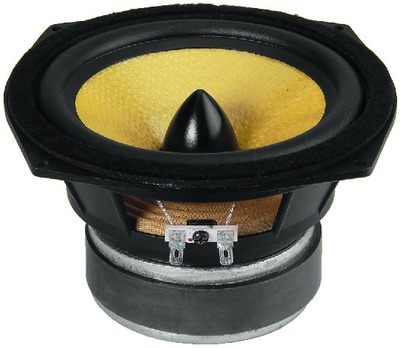

Monacor SPH-165KEP - mid-woofer, ideal for high-quality Hi-Fi acoustic enclosures, with excellent capabilities in subwoofer applications or mid frequencies, thanks to the Kevlar diaphragm. It has a power of 60W / 8 ohms, and the housing is made of cast aluminium. It features optimal transient response, resonance-free, with high thermal resistance.

Technical specifications:

Impedance (Z): 8 Ω
Frequency range: f3-7,000 Hz
Resonance frequency: fs-30 Hz
Power (PRMS): 60 WRMS
Peak power (PMAX): 100 WMAX
Sensitivity: 89 dB
Total Q Factor (Qts): 0.31
Equivalent volume (Vas): 38 l
DC resistance (Re): 6 Ω
Inductance of the coil (Le): 0.7 mH
Diameter of the coil: 35.5 mm
Voice coil former: Kapton
Linear excursion (XMAX): ±4.75 mm
Effective cone area (Sd): 127 cm2
Magnet weight: 500 g + 17 g
Magnet diameter: Ø 100 mm
Dimensions: 165 x 165 x 90 mm
Optimal operating temperature: 0-40 °C
Weight: 1.71 kg
