MEC Pickups Stereo + Mono Stacked Potentiometer, (05C220K / 05A220K) / B500K

Name: MEC Pickups Stereo + Mono Stacked Potentiometer, (05C220K / 05A220K) / B500K
Brand: MEC Pickups
SKU: M 85301
Price: 53.35 EUR
Availability: OutOfStock

Potentiometer

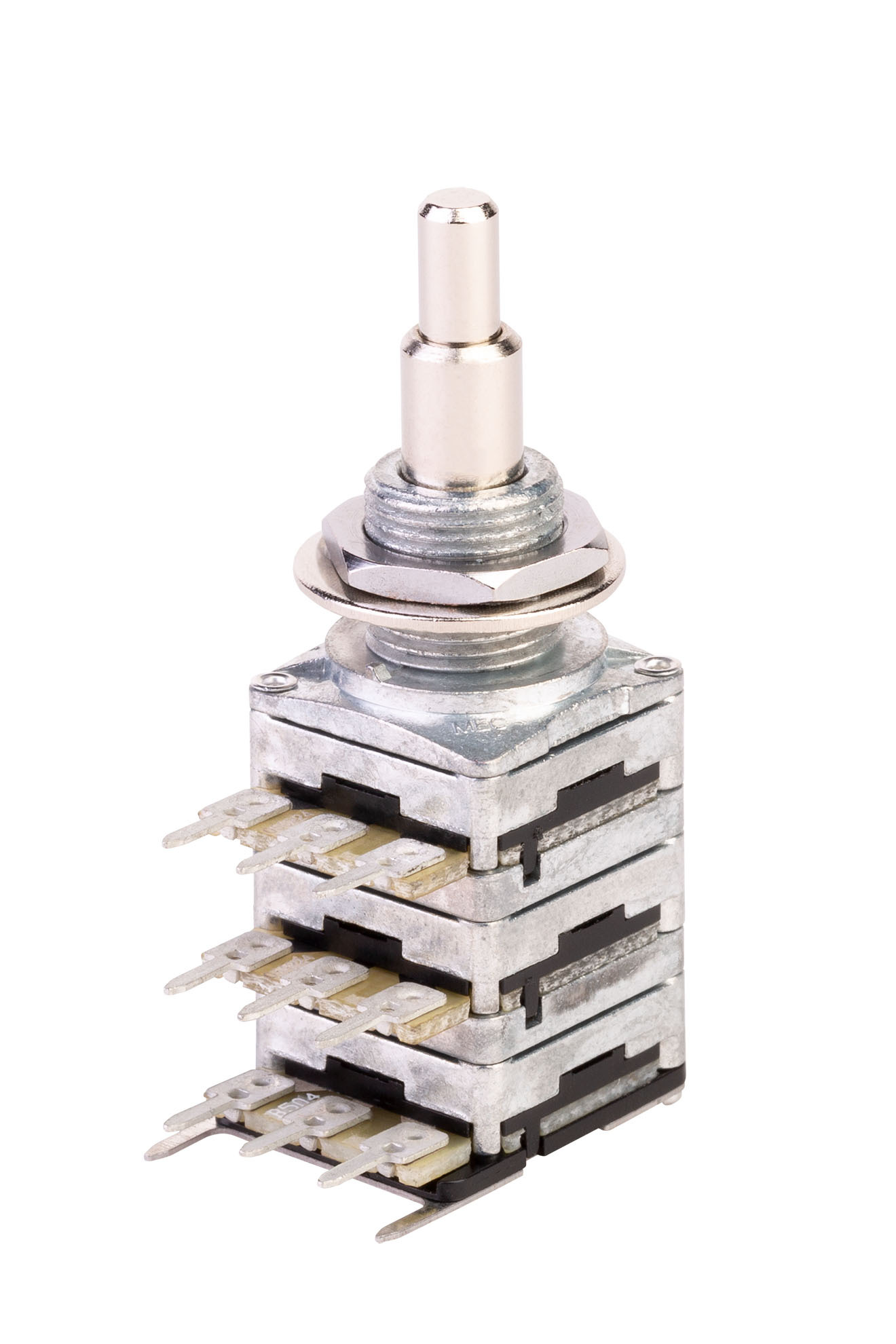

stereo + mono potentiometer with concentric shaft.
includes R1 (220 kOhm, reverse logarithmic), R2 (220 kOhm, logarithmic), and R3 (500 kOhm, linear).
ideal for balance control and volume for passive pickups.
m10 x 0.75 mm thread with a mounting diameter of 10 mm.
dimensions including terminals: 24 x 16 x 24 mm.

Variants:

53³⁵ €

Currently unavailable. Request details

Central warehouse: 0

Add to cart

also deliverable via

Shipping 8.00 €

Warranty 24 months

Returns 14 days

request details

MEC Pickups Stereo + Mono Stacked Potentiometer, (05C220K / 05A220K) / B500K Add to cart: 53³⁵ €

- stereo + mono potentiometer
- concentric shaft
- R1 = 05C220K (resistance 220 kOhm, (C) reverse logarithmic)
- R2 = 05A220K (resistance 220 kOhm, (A) logarithmic)
- R3 = B500K (resistance 500 kOhm, (B) linear)
- suitable for balance control (R1 & R2) and volume (R3) for passive pickups
- thread M10 x 0.75 mm
- mounting diameter 10 mm
- thread length 9 mm
- solid shaft
- shaft length 14 mm (internal), 7 mm (external)
- shaft diameter 4 mm (internal), 6 mm (external)
- includes nut and washer
- dimensions incl. terminals (L x W x H) 24 x 16 x 24 mm

- Note: The return and refund policy does not apply to electronic components if their wires have been cut or soldered, if they show signs of use, if they have already been installed, or if other damages affecting the condition of the goods are present.
