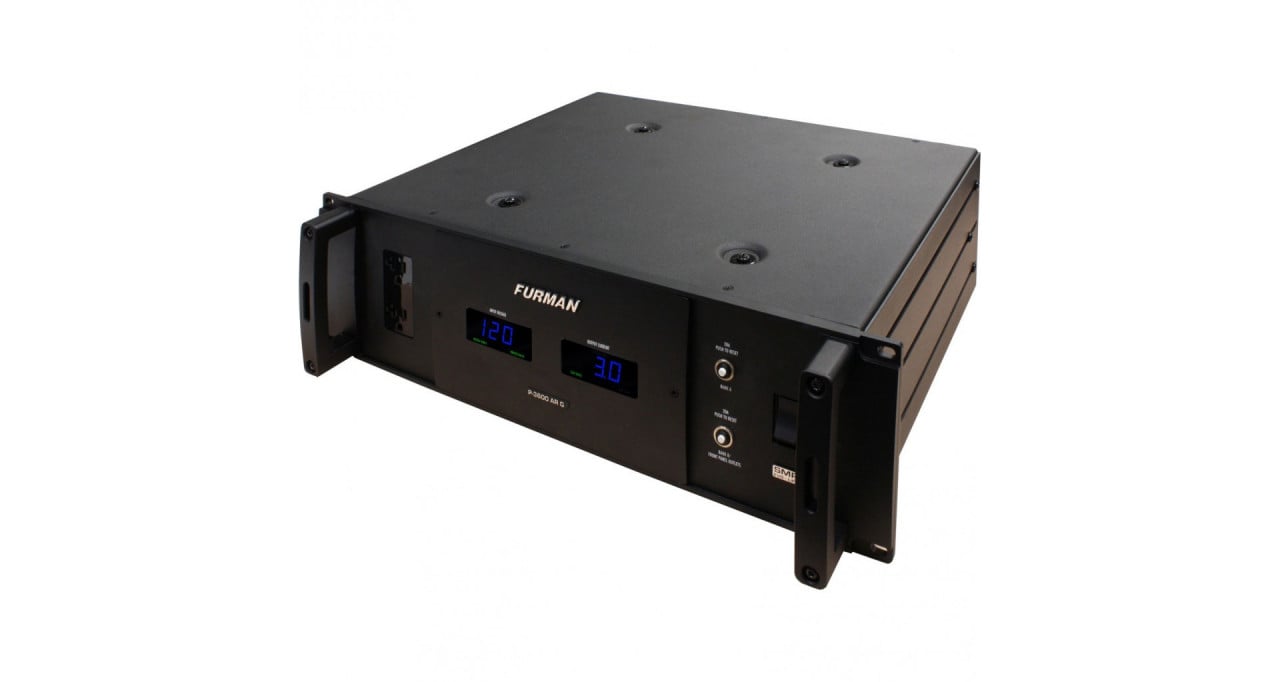

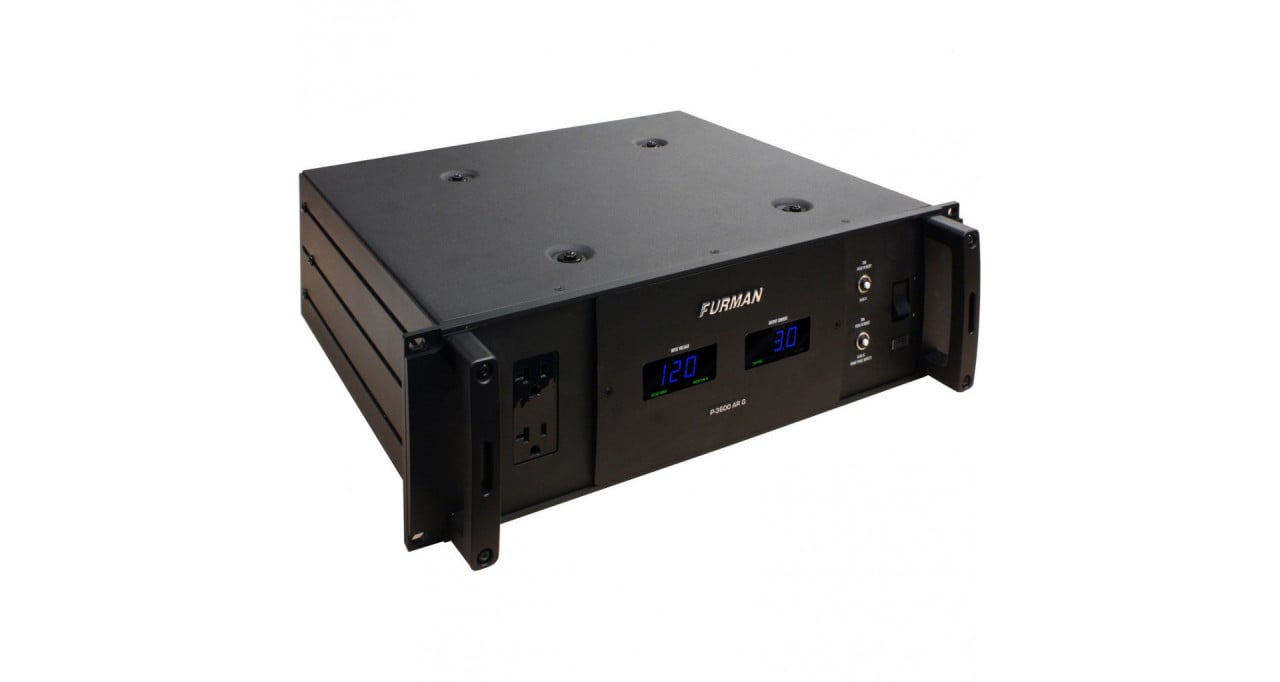

The prestigious P-3600 AR G is a voltage regulator that offers a unique solution in electric current management for A/V professionals worldwide. The P-3600 AR G ensures a stable power source at 120V from any input voltage between 100V to 127V or from 208V to 240V.
The device provides connected 120V equipment with stable voltage, electrical protection, and AC filtering, ideal for use with 120V A/V gear when travelling in countries with 100V, 220V, 230V, or 240V services.

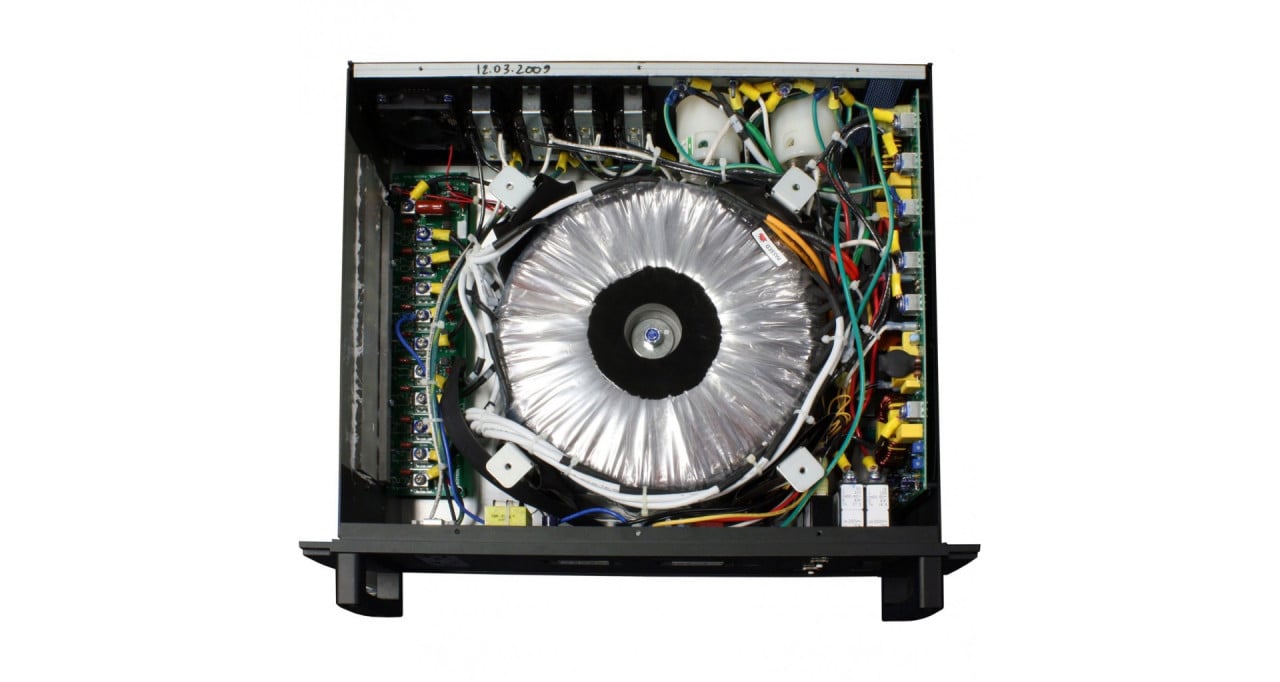

The predecessor of the P-3600 AR G, the Furman AR-PRO, was an indispensable product for many professional users. The updated model includes Furman's True RMS technology (using an ultra-low toroidal isolation transformer, high-current switching TRIACs, and microprocessor control) at step or staggered input voltages. The unit also offers exclusive FFT technologies for LiFT / SMP / EVS for professional-level protection and linear AC noise filtering.
These features, along with the P-3600 AR G's 30A output capacity and wide input voltage capture range, make it a unique solution among other voltage regulators / portable voltage regulators and a reliable alternative for typical applications or step-up/step-down applications.
- Regular output of 120 V from 100-127 and 208-240 V power sources
- Occupies 3U in rack
- Weight: 44.5 kg
Functions:
- Global True RMS Voltage Regulation
- Delivers a stable 120 volts of AC power (from any voltage source between 88V-134V and 170V-265V) to protect equipment from problems
- Surge Protection
- Furman’s exclusive SMP technology provides the highest level of surge & spike protection available.
- Noise Filtration
- LiFT offers AC power filtering to ensure clean power for unequaled audio & video clarity.
- Voltage Protection
- Advanced EVS circuitry detects dangerous voltage irregularities and safely powers down itself and connected equipment in unsafe conditions.
- Diagnostic Lights
- LED status indicators warn you when voltage is outside of nominal range or when protection has been compromised.
- Large LED Voltmeter
- Large LED voltmeter displays incoming line voltage.
- Large LED Ammeter
- Large LED ammeter displays output current draw.
- 30 Amp Rating
- 30 Amp rating featuring a high inrush magnetic circuit breaker for added protection.
- 11 Total Outlets
- 11 total outlets (nine rear panel outlets and two front panel convenience outlets).
Specifications:
General
- Prestige Series Family
- Line Voltage 120 (volts)
- Number of Outlets 11
- Number of Isolated Banks 0
- Outlet Descriptions All 11 outlets are regulated, protected, and filtered. Rear panel: (8) 20 amp outlets and (1) 30 amp outlet. 2 convenience outlets of 20 amps on the front panel.
- Rack Mountable Yes
- Rack Ears Included Yes

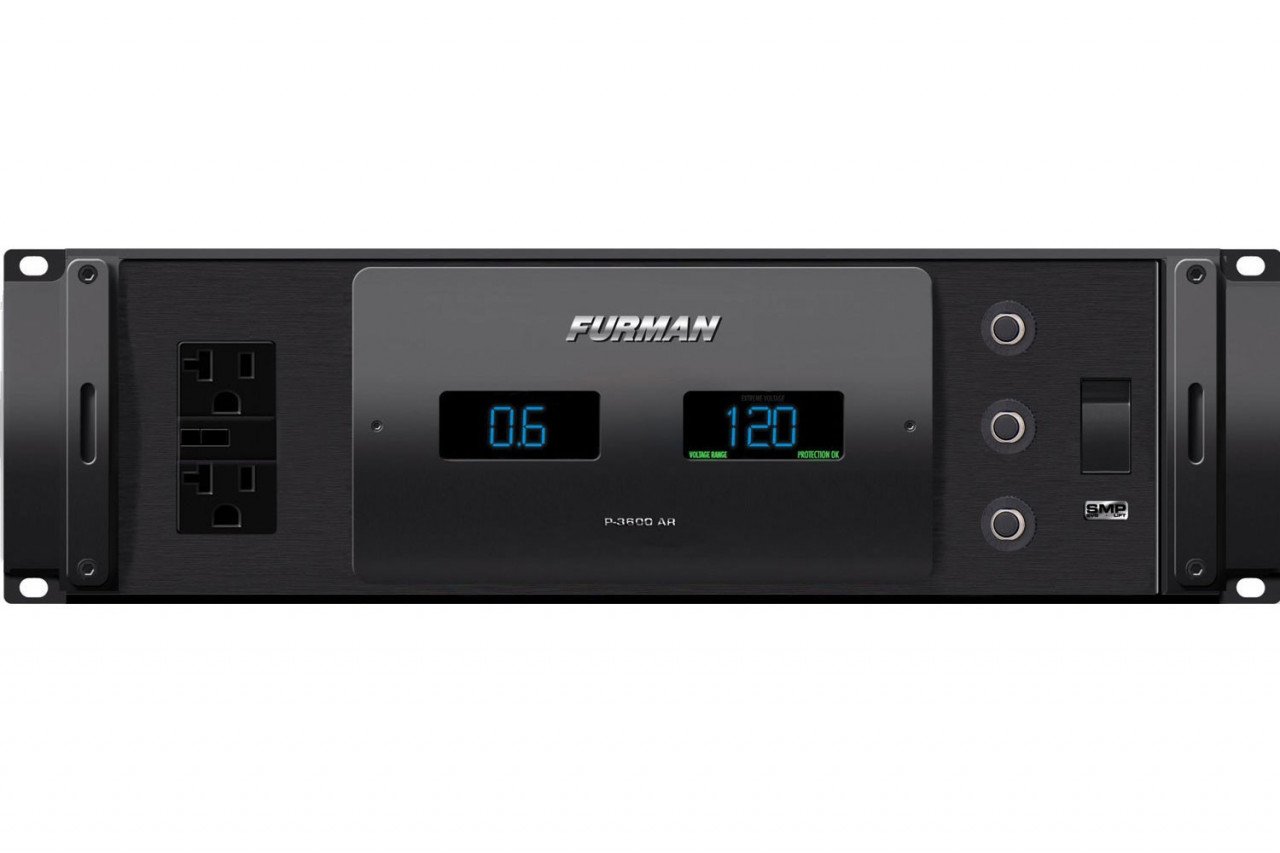

- Meter(s) on Front Panel LED voltmeter displays incoming line voltage, LED ammeter displays output current draw.
- Front Panel Media Lights No
- Control Front Panel: - On/Off switch - Output bank reset buttons
- Voltage Regulation Capture Range: (LOW) 88-133 VAC @ 50/60Hz (HIGH) 170-265 VAC @ 50/60Hz
- Compliance ecTUVus
- USB Charging N/A
- Low Voltage Trigger N/A
- AC Power Input Male L-14 twistlock (twistlock cable mount connector included)
- Dimensions 19” W x 14.25” D x 5.25” H
- Weight 98 lbs
AC Protection
- AC Protection Technology Global True RMS Voltage Regulation Extreme Voltage Shutdown Multi-Stage Protection Non-sacrificial protection with zero ground contamination
- Overvoltage Shutdown 145 V AC nominal (input 120 V AC) 275 V AC nominal (input 240 V AC)
- Maximum Rated Current 30 (Amps)
- Initial Shutdown Level 191V peak @ 3,000 Amps
Filtering
- Filtering Technology LiFT
- Filtering Capability
- -10 dB @ 10KHZ -40 dB @ 100 KHZ -55 dB @ 500KHZ
- Signal Line Protection No
Shipping Information
- Length 24 (inches)
- Width 23 (inches)
- Height 13.5 (Inches)
- Weight 110 (Lbs)
- Unit of Measure Each
- UPC 654061028215
- Master Pack Qty 1
Other Specifications
- Response Time: 1 nanosecond
- Maximum Surge Current: 6,500 Amps
- AC Input: Male L-14 twistlock input (twistlock cable mount connector included)
