Furman P-1400 AR E

Furman P-1400 AR E - voltage stabiliser / distributor, which provides a stable AC power supply of 230V, to protect electronic equipment from damage that can be caused by unstable voltage issues, surges, fluctuations, etc. It accepts an input voltage range of 188V-270V, which it transforms into a stable 230V or 240V (selectable), ±10V. Voltages above this range can be converted to usable levels. It also filters and purifies the AC power, reducing line noise.

Features:

• Provides the highest level of protection against constant overvoltage and voltage spikes.
• Noise filtering through LiFT technology for audio / video clarity.
• Overcurrent protection via EVS circuits, which detect dangerous current levels, and disconnect the equipment connected to the P-1400 AR E as well as the power unit, to prevent damage.
• Bright LED diagnostic indicators alert when the voltage is outside normal values, or when protection has been compromised.
• True RMS voltage regulation.
• USB port on the front of the unit, allowing charging of various media devices or powering a USB lamp.
• Digital voltmeter / ammeter, indicating line voltage and True RMS current consumption.

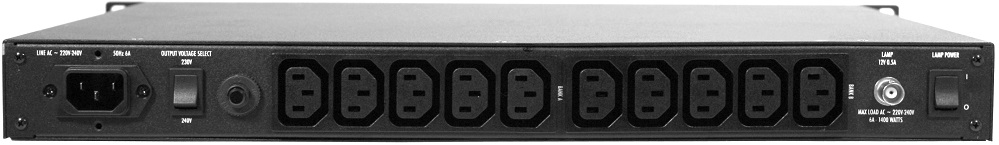

• 11 isolated output sockets (10 on the back of the unit and one on the front), minimising interference between components and noise contamination.
• The BNC power socket, located on the back of the unit, provides the option to power a standard gooseneck lamp for lighting.

Technical specifications:

• Maximum current: 6A
• Power cable: Captive AWG, black 2.5M cable with IEC connector
• BNC socket w/Switch: 12VAC 500MA max
• Operating voltage: 170 to 274 VAC
• Overvoltage disconnect: 275 VAC Nominal
• Approximate input voltage: 174 to 264 VAC
• Protection against voltage spikes: line to neutral, no ground leakage
• Maintaining voltage spikes within normal limits: peak of 375 VAC at 3,000 A
• Response time: 1 nanosecond
• Maximum surge: 6,500 A
• Noise attenuation: 10 dB at 10 kHz, 40 dB at 100 kHz, 50 dB at 500 kHz
• Dimensions: 483mm W x 305mm D x 45mm H
• Weight: 7 kg.
• Power consumption: 5 W
