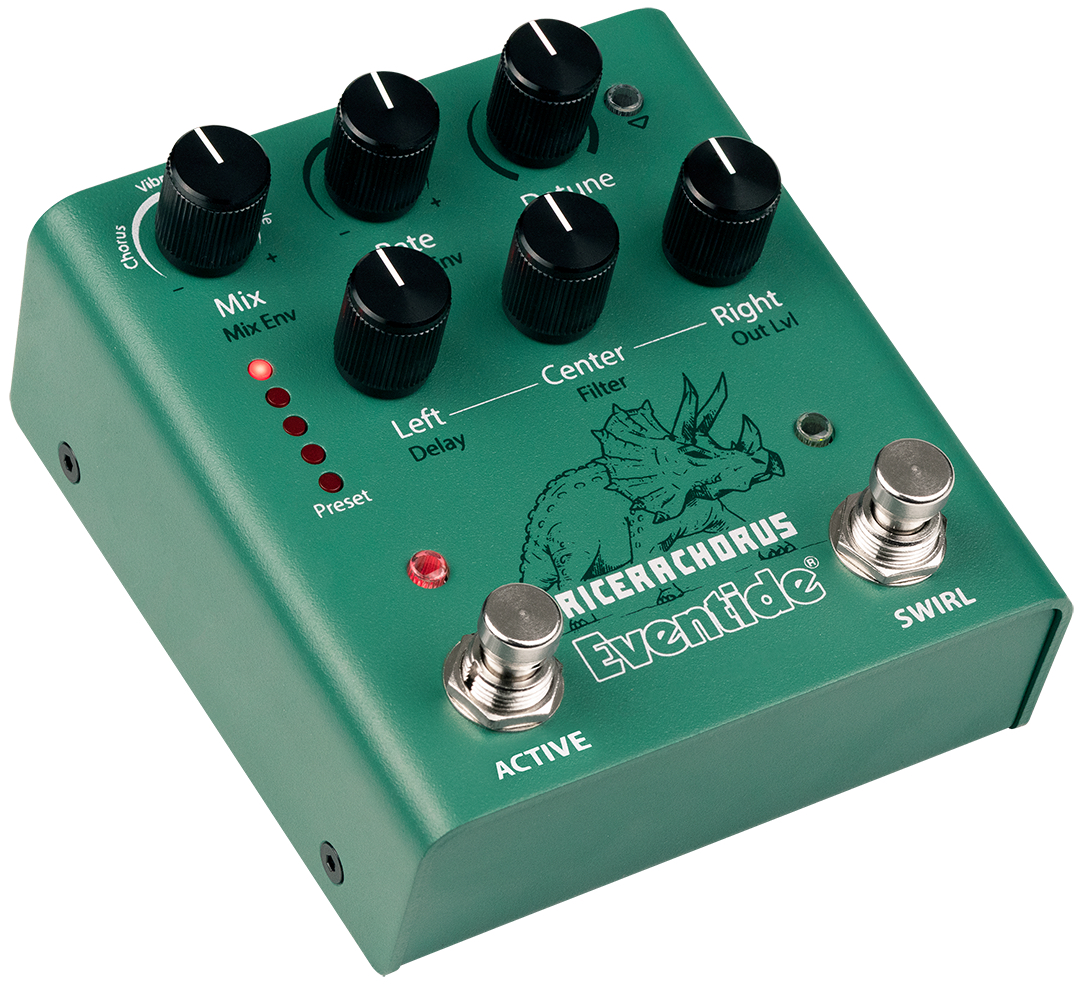

Eventide TriceraChorus - Inspired by the classic Tri-Stereo Chorus and stompbox effects from the 1970s and early 1980s, the TriceraChorus pedal combines rich Bucket Brigade-style choruses with Eventide's legendary MicroPitch detonation for a lushness that rivals the jungles of the late Cretaceous period. The TriceraChorus features three independent chorus voices and three unique chorus effects that can be used to create a wide stereo spread with waves of pulsating modulation. The innovative "Swirl" footswitch adds psychedelic tones, phasing, and Univibe-style effects. It has never been easier to shape deep and fine modulation for guitar, bass, synthesizers, strings, vocals, and much more.
Features:
Three independent chorus voices: left, centre, and right
Three types of chorus: Chorus, Vibrato, Chorale for a wide range of tonal possibilities
Dedicated "Swirl" footswitch capable of generating psychedelic tones, phasing, and Univibe-style sounds
Five presets loaded at your feet, with dozens more available via the Eventide Device Manager (EDM) software
Active footswitch with dual action can latch or momentarily engage
Guitar/Line Level switch on the rear panel for matching levels with guitar, synthesizers, loop FX, or DAW interface
Map any combination of parameters to an expression pedal
Use a single auxiliary switch to access Rate or a triple auxiliary switch for easy preset changes (up/down/load)
MIDI capability over TRS (with MIDI to TRS cable or converter box) or USB (with host MIDI controllers)
Multiple bypass options: Buffered, Relay, DSP+FX, or Kill dry
Catch-up mode helps you recall sound when switching between presets/parameters
Eventide Device Manager application for PC or Mac for software updates, system settings, and creating/saving presets
Technical Specifications:
Connectors:
Input: 1/4″ TRS / Mono = tip, Stereo = tip and ring
Out 1: TS Mono / 1/4″ Mono output
Out 2: TS Mono / 1/4″ Stereo output
EXP: 1/4″ TRS / Expression pedal, Aux switch, or MIDI I/O
Mono/stereo switch: Sets input to Mono (Tip) or Stereo (Tip + Ring)
Guitar/line level switch: Optimises internal gain structure
Mini USB: Software updates, MIDI I/O
DC input jack: 5.5 mm / 2.1 mm jack / centre negative (-)
Analog I/O:
Input impedance: 700k ohms Mono, 990k ohms Stereo
Max input, guitar: +8dBu
Max input, line: +14dBu
Output impedance: 220 ohms
Recommended load impedance: 10k ohms
Power: 9V DC @ 200mA / centre negative (-), 5.5 mm/2.1 mm jack (standard BOSS)
