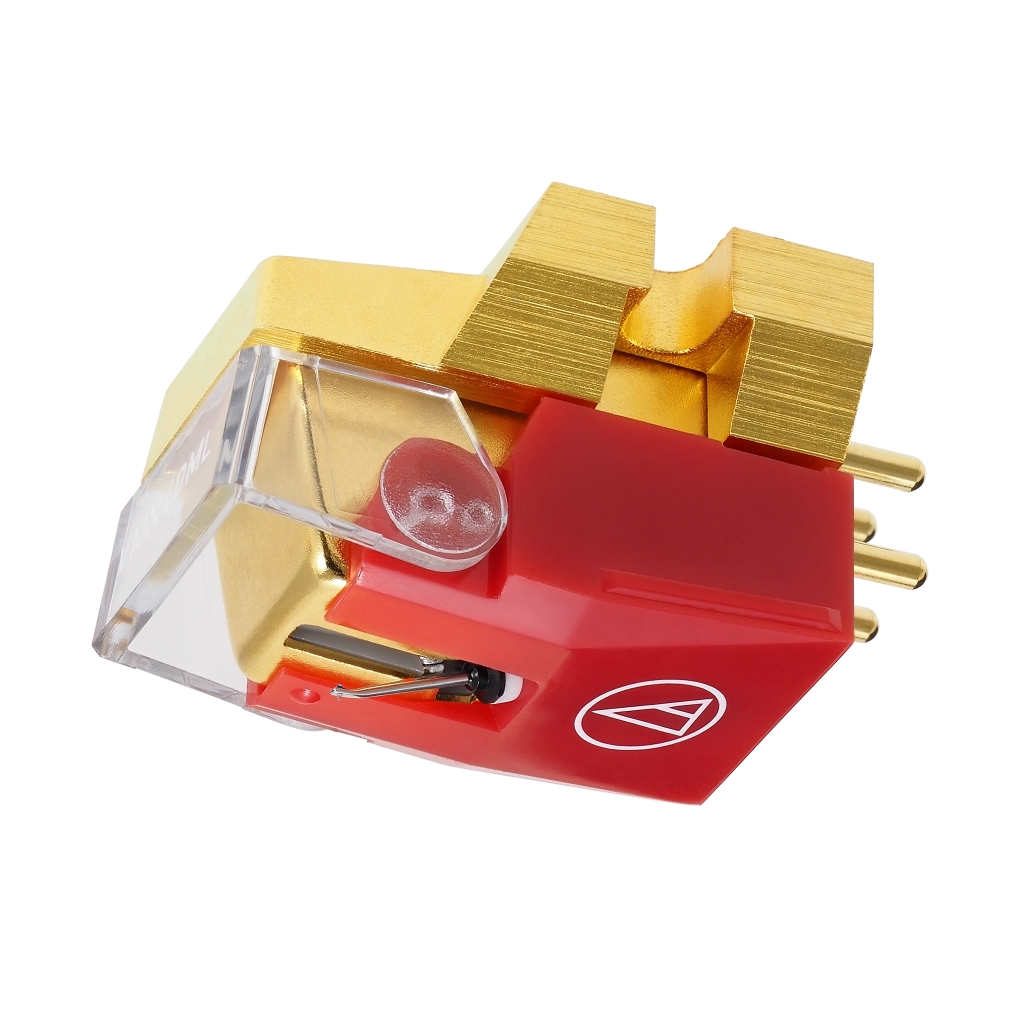

Audio-Technica VM-740 ML

Pickup cartridge

stereo pickup cartridge with 2 moving magnets and MicroLine™ stylus.
frequency response from 20 to 27,000Hz for high-quality sound.
includes various installation accessories for easy setup.
die-cast aluminium housing reduces vibrations and enhances performance.
recommended load impedance of 47,000Ω for optimal use.

284⁸⁰ €

Currently unavailable. Request details

Central warehouse: 0

Add to cart

also deliverable via

1464 points of loyalty

Shipping free

Warranty 24 months

Returns 14 days

request details

Audio-Technica VM-740 ML Add to cart: 284⁸⁰ €

Audio-Technica VM-740 ML - stereo pickup cartridge, featuring 2 moving magnets and a MicroLine™ diamond-profile stylus, toroidal coils, a shielding plate between the 2 stereo channels, and a die-cast aluminium housing that reduces vibrations and provides natural electrical shielding.

Technical specifications:

Type: Moving Magnet
Mounting: 1/2” centres
Frequency response: 20 - 27,000Hz
Channel separation: 28dB (1kHz)
Channel output balance: 1.0dB (1kHz)
Output voltage: 4.0mV (1kHz, 5cm/sec.)
Vertical tracking angle: 23˚
Tracking force range for vertical tracking angle: 1.8 – 2.2g (2.0g standard)
Stylus shape: MicroLine™
Stylus size: 0.12 x 2.2 mil
Cantilever: Aluminium Tapered Pipe
Coil impedance: 2,700Ω (1kHz)
Static compliance: 40 x 10-6 cm/dyne
Dynamic compliance: 10 x 10-6 cm/dyne (100Hz)
Recommended load impedance: 47,000Ω
Recommended load capacitance: 100 – 200pF
Weight: 8.0g
Dimensions (H x W x L): 17.3 x 17.0 x 28.2 mm
Replacement stylus: VMN40ML
Included accessories: 5mm ×2 and 10mm ×2 cartridge installation screws, ×2 washers, Hexagon nut ×2, non-magnetic screwdriver ×1, brush ×1, fire Lead set ×1
