Klotz AES/EBU (DMX) patch cable2x 0.22 mm² - PVC - 13.77 kg/m - 500 m

Digital AES/EBU cable

cablu digital AES/EBU cu impedanță de 110 Ohm.
secțiune conductor 0,22 mm², ecranare dublă.
diametru exterior compact de 4,5 mm.
lungime 500 m, rezistență la flacără.

Variants:

1 357²⁴ €

Currently unavailable. Request details

Central warehouse: 0

Add to cart

also deliverable via

Shipping free

Warranty 12 months

Returns 14 days

request details

Klotz AES/EBU (DMX) patch cable2x 0.22 mm² - PVC - 13.77 kg/m - 500 m Add to cart: 1 357²⁴ €

0.22 mm² conductor cross section (AWG 24)
110 Ohm characteristic impedance
double shielded (AL/PET foil + braid)
flexible outer jacket, Ø 4.5 mm

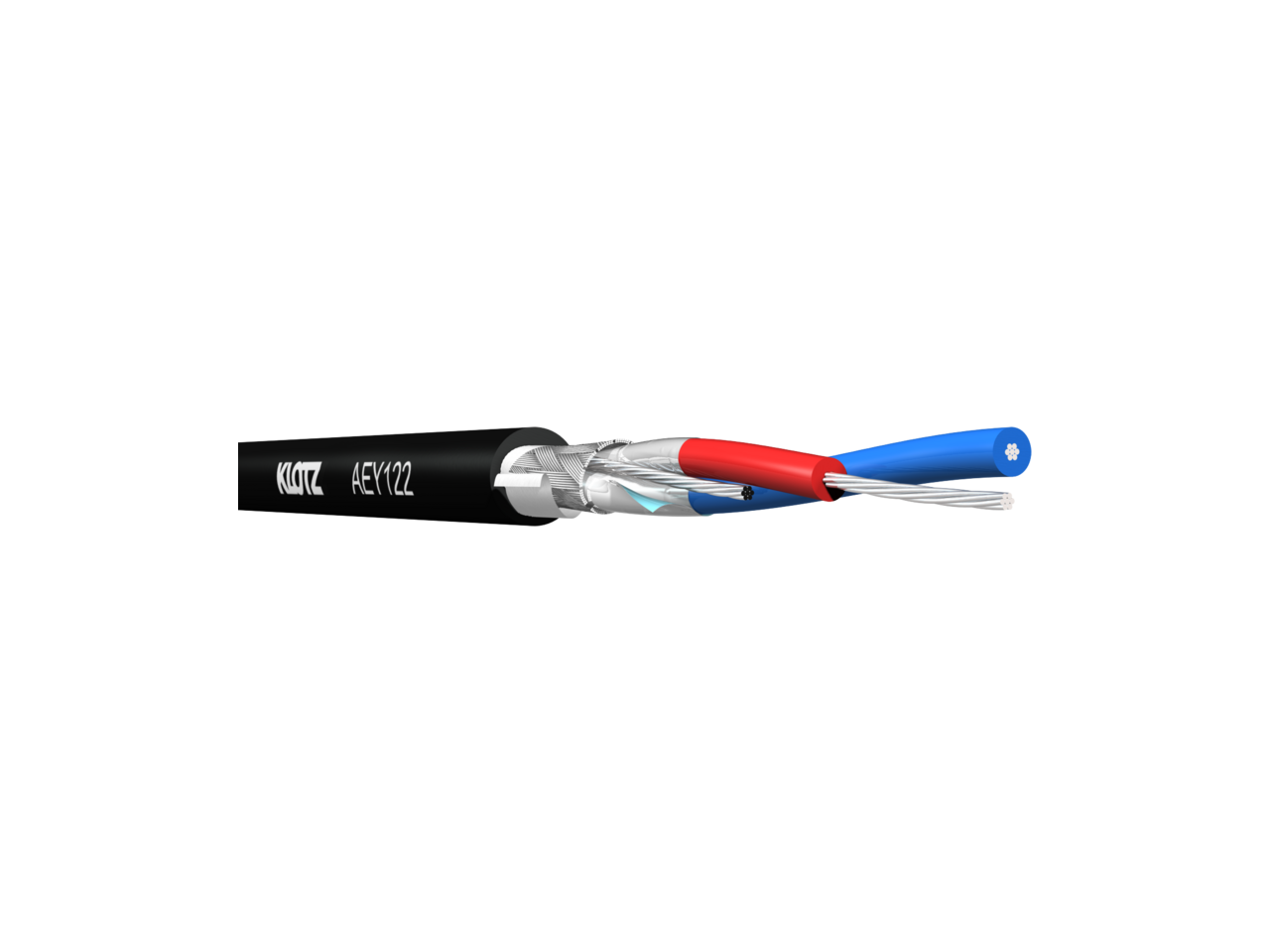

The compact digital 110 Ohm cable for interference-free transmission of digital AES/EBU audio signals. The inner conductors insulated with foam polyethylene are shielded by a plastic-lined aluminium foil and very dense braiding. Handling is greatly simplified by the filler stranded drain wire in between. The compact outer diameter allows all standard connector types to be used and enables ideally dimensioned cablings.

design

cond. construction: stranded tinned copper, 7x 0.20 mm

cond. cross section: 0.22 mm²

insulation: foam-skin PE

shielding: AL/PET foil + tinned stranded drain wire + tinned copper braid (coverage 85%)

outer jacket: PVC, matt

mechanical & thermal characteristics

operating temperature: -25°C / +70°C

min. bending radius:

installed: 6x overall diameter

mobile use: 10x overall diameter

no hazardous substances: acc. to EU directivo RoHS 2011/65/EU from 08.06.2011

CE conformity: acc. to EU directivo LVD 2006/95/EG

flame retardancy: flame retardant acc. to IEC 60332-1-2

heat of combustion: 293 kJ/m

electric

conductor resistance:

capacitance:

cond./cond.: 47 pF/m

characteristic impedance: 110 Ω

nom. attenuation [dB/100m]:

1 MHz:

3 MHz:

4 MHz:

6 MHz:

10 MHz:

20 MHz:

insulation resistance: > 10 GΩ x km

test voltage:

cond./cond.: 1200 V

cond./shield: 500 V

Caracteristici

outer jacket	PVC
outer Ø	4.5 mm
cable color	black
operating temperature	-25°C / +70°C
weight	13.77 kg/m
length	500 m
