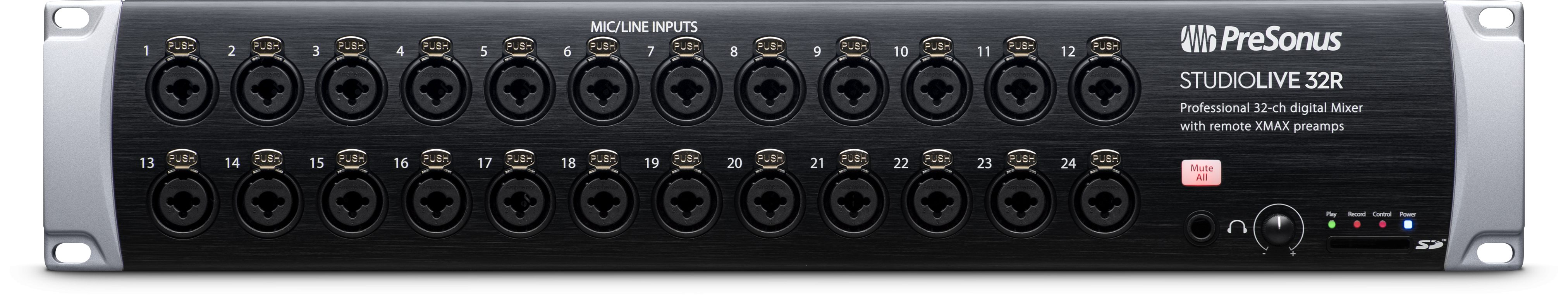

Presonus StudioLive 32R, digital audio mixer with 32 channels that offers the processing power of large consoles in a compact format. Equipped with a dual-core PreSonus FLEX DSP engine, the StudioLive 32R is capable of processing 40 channels, 26 mix buses, and 286 simultaneous processors - including 4 stereo reverb systems and Fat Channel plugin models on each input channel and mix bus.
With 128 (64x64) USB channels for recording, 128 AVB I/O channels, flexible routing options, and studio-level audio quality, the StudioLive 32SC mixer provides an exceptional experience.
Seen as an integrated module within a complex ecosystem, Presonus StudioLive 32R also efficiently and ergonomically integrates recorder components, multichannel USB audio interface, SD card reader, AVB-compliant equipment interconnection interface (avoiding a proprietary standard that would require the purchase of additional modules or accessories to ensure compatibility, valid in the case of exiting the manufacturer's ecosystem), dedicated DSPs for audio processing, and software.
The set of implementations makes redundant any purchase of equipment that would be complementary in other competing cases (audio interface, recorder, external audio processors, communication modules, etc.), directly contributing to environmental protection.
- 40 channels:
- 32 x XMAXX preamps
- 2 x stereo auxiliary inputs, balanced
- 16 x mix outputs
- 1 x headphone output
- 26 x mix buses:
- 16 x FlexMix that can be Aux, Subgroup, Matrix
- 2 x Master outputs
- 286 simultaneous processors:
- HPF
- Gate / Expander
- Compressor with Fat Channel plugin models
- Parametric EQ with 4 or 6 bands with Fat Channel plugin models
- Limiter
- Graphic EQ with 31 bands
- 4 x Flex FX slots with emulations of renowned reverbs and delays
- State Space-Modeled Fat Channel compressor and EQ plugins available on each input and output bus
- Flex FX multi-effects processor with 4 locations and 4 dedicated effects buses
- USB recording on 128 channels, 40 x 40
- Integrated SD recorder 34 x 34 with Virtual Soundcheck mode
- Networking via AVB, 64 x 64 channels for connecting to NSB stage boxes, EarMix 16M, other mixers, etc.
- User profile system: allows setting different rights for various operators
- Dynamic range: 115 dB (A-wtd, 48 kHz)
- Internal processing: 32-bit, floating point
- Sample rate: 24 bits 48 kHz, 44.1 kHz
- DAW control:
- Advanced integration with Studio One
- MCU emulation mode for Logic
- HUI emulation for ProTools
- Software:
- UC Surface: fully controllable remotely via computer, iPad or Android tablets
- QMix-UC: monitoring software via Android/iOS tablets/phones
- Capture: with Automated Virtual Soundcheck and scene storage along with the audio source
- Studio One Artist: DAW software
- Dimensions: 483 x 305 x 90 mm
- Weight: 5 kg
