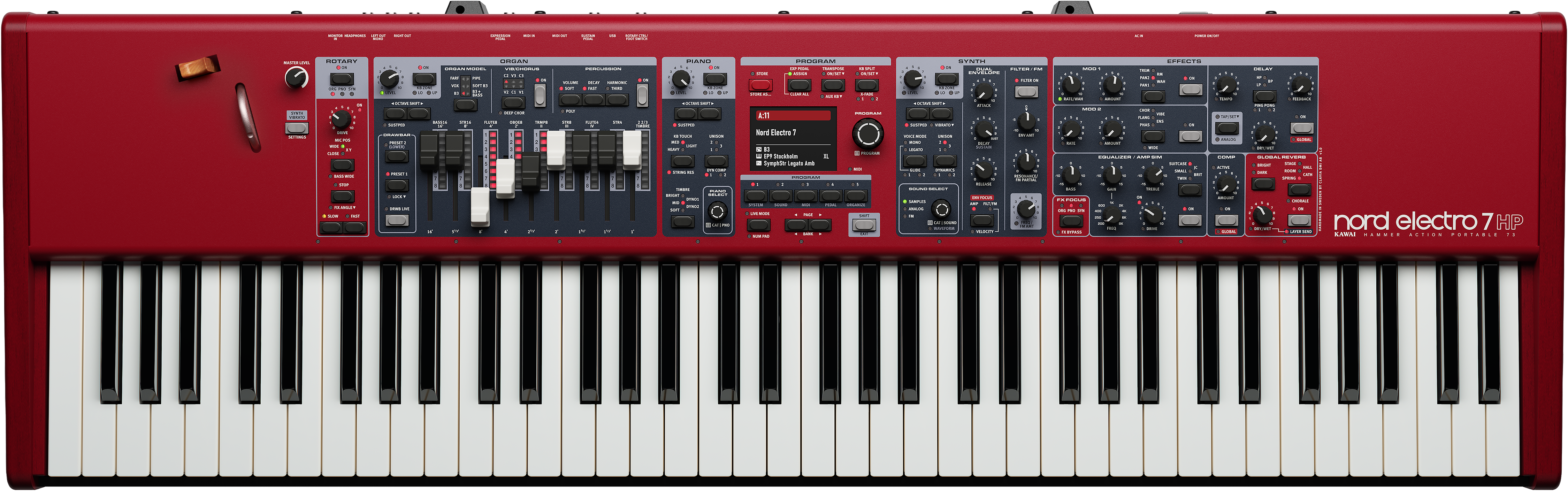

Nord Keyboards Electro 7 – HP – Professional stage organ with lightweight Kawai Hammer Action keyboard, dedicated to musicians seeking authentic organ, piano and synthesizer sounds in a single compact instrument, quick to set up and extremely expressive in every way. With physical drawbars, a new colour screen and organ engine taken from the Nord Organ 3, the Electro 7 HP is a modern standard for stage and studio.
- 73 lightweight Kawai Hammer Action keys
- New panel design with large, clear and easy-to-read colour screen
- Fast and intuitive interface, optimised for live use
- Pitch Stick and Modulation Wheel for expressive real-time control
- Physical drawbars with LEDs for authentic organ control
- Nord Organ 3 engine with B3, B3 + Bass, Soft B3, Vox, Farfisa and Pipe models
- Advanced Rotary Speaker emulation with multiple microphone positions: Close, Wide, XY, plus Bass Wide
- Piano sounds from the Nord Piano Library, with realistic dynamic response
- Dynamic Compression, Unison and Timbre for enhanced expressiveness
- Synth section with Sample, Analog and FM sounds
- Mono, Legato and Glide modes for expressive control
- Low-Pass Filter with resonance and dedicated envelopes for Amp and Filter/FM
- FM Partial & FM Amount, Vibrato with adjustable rate, intensity and delay
- Dedicated effects for organ, piano and synth: Reverb, Delay, Modulations, Amp simulations
- Spring Reverb placed before Rotary Speaker, global Reverb control per layer
- Assignable Expression Pedal for synth parameters and effects
- Fluid transitions between sounds, without interruptions
- Splits and layers with crossfade
- Kawai Hammer Action keyboard for comfort and speed
- Lightweight and portable construction, ideal for stage and studio
- Complete connectivity: audio, MIDI, USB
- 500 memory programs + Live Mode
- Made in Sweden, Nord professional standard
Organ Section
- Models: B3, B3 + Bass, Soft B3, Vox, Farfisa, Pipe
- Nord Organ 3 engine
- Nord Organ 3 Rotary Speaker emulation
- 3 microphone positions: Close, Wide, XY + Bass Wide option
- Vibrato/Chorus with B3 Deep mode
- Adjustable control for percussion (level and decay)
- 3 tonewheel modes (vintage level)
- Physical drawbars + manual presets
- Mounting for Half-Moon Switch
Piano Section
- Compatible with Nord Piano Library
- Categories: Grand, Upright, Electric, Digital/Layer, Clav, Harpsichord, Mallet
- 120 voices polyphony
- String Resonance
- Dedicated timbres for each type of piano
- Dynamic Compression
- Unison (3 levels)
- 3 KB Touch settings
Synth Section
- Synthesis: Sample, Analog, FM
- Compatible with Nord Sample Library
- 30+ voices polyphony
- Low-pass filter with resonance
- Dual envelope for Amp and Filter/FM
- FM Partial & FM Amount
- Mono, Legato, Glide
- Vibrato with adjustable rate, intensity and delay
- Unison (3 levels)
Effects
- Dedicated effects for each section (Organ / Piano / Synth)
- Modulation FX with Rate & Amount control
- New Spring Reverb (placed before Rotary)
- Amp simulations: Twin, Small, Suitcase, JC, Brit
- 3-band EQ with sweepable mids
- Delay with Tap Tempo, Ping-Pong, Analog mode
- Compressor with Global mode
- Global reverb: Spring, Room, Stage, Hall, Cathedral
- Separate reverb control per layer
Connectivity
- L/R audio outputs – 6.35 mm jack (unbalanced)
- Headphone output – 6.35 mm jack
- Monitor input – 3.5 mm stereo jack
- Expression pedal input – 6.35 mm TRS jack
- Sustain input – 6.35 mm jack
- Footswitch / rotary control input – 6.35 mm jack
- MIDI In / Out – 5-pin DIN
- USB Type-B (MIDI, update, sound transfer)
- IEC C14 power supply
Memory & control
- 20 banks × 25 programs = 500 locations
- Live Mode: 5 live programs
- Global transpose ±6 semitones
- Fine tune ±50 cents
- Aux Keyboard (external keyboard)
Dimensions & weight
- Product dimensions: 1071 × 129 × 341 mm
- Weight: 13 kg
