Tascam IF-AE16

AES/EBU Interface Card

aES/EBU interface card for DA-6400 and DA-6400dp recorders.
supports 32 input and output channels with two cards.
built-in sample rate converter for various formats.
input frequencies range from 32k to 192k Hz.
compact dimensions: 107 x 40 x 161.5 mm, weight: 222g.

920¹² €

Currently unavailable. Request details

Central warehouse: 0

Add to cart

also deliverable via

Shipping free

Warranty 24 months

Returns 14 days

request details

Tascam IF-AE16 Add to cart: 920¹² €

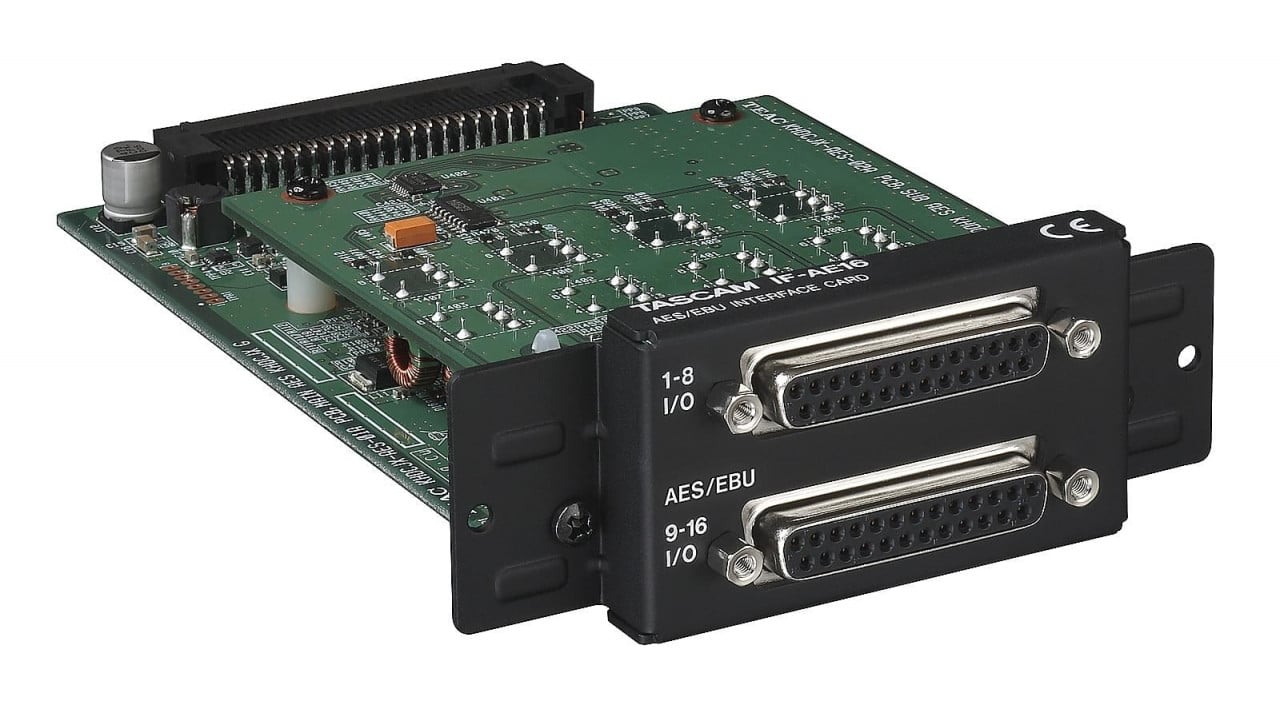

IF-AE16 is an AES/EBU input/output interface card for the DA-6400 and DA-6400dp digital multitrack recorders.

Key features:

With 16 inputs and 16 outputs, two IF-AE16 cards can be used to activate 32 input and output channels.

The inputs feature a built-in sample rate converter that accepts a wide range of formats.

Technical specifications:

Format: 44.1k/48k/88.2k/96k Hz, 24-bit
Number of channels: 16
Transmission is double speed when 88.2 or 96 kHz is selected.

Digital audio inputs/outputs: AES/EBU 1-8 I/O, AES/EBU 9-16 I/O

Connectors: 2×8-channel 25-pin D-sub (female)
Locking screws: No.4-40 UNC (inch type)
Pin assignments: TASCAM Pin assignments
Input frequencies: 44.1k/48k/88.2k/96k Hz (sampling rate converter OFF)
32k - 192k Hz (sampling rate converter ON)
Input format: AES3-2003/IEC60958-4 (AES/EBU) / IEC60958-3 (S/PDIF)
Output format: AES3-2003/IEC60958-4 (AES/EBU)
Dimensions: 107 x 40 x 161.5 mm
Weight: 222g

Product code: ZD-045152

Unit of sale: piece
