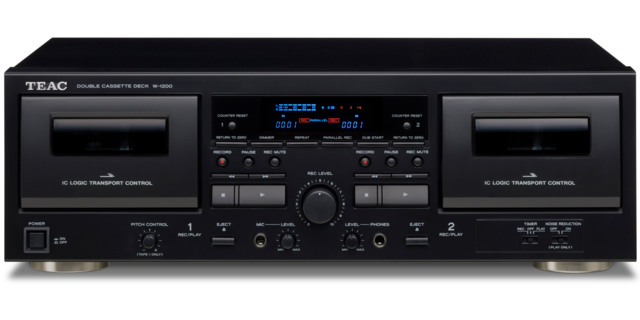

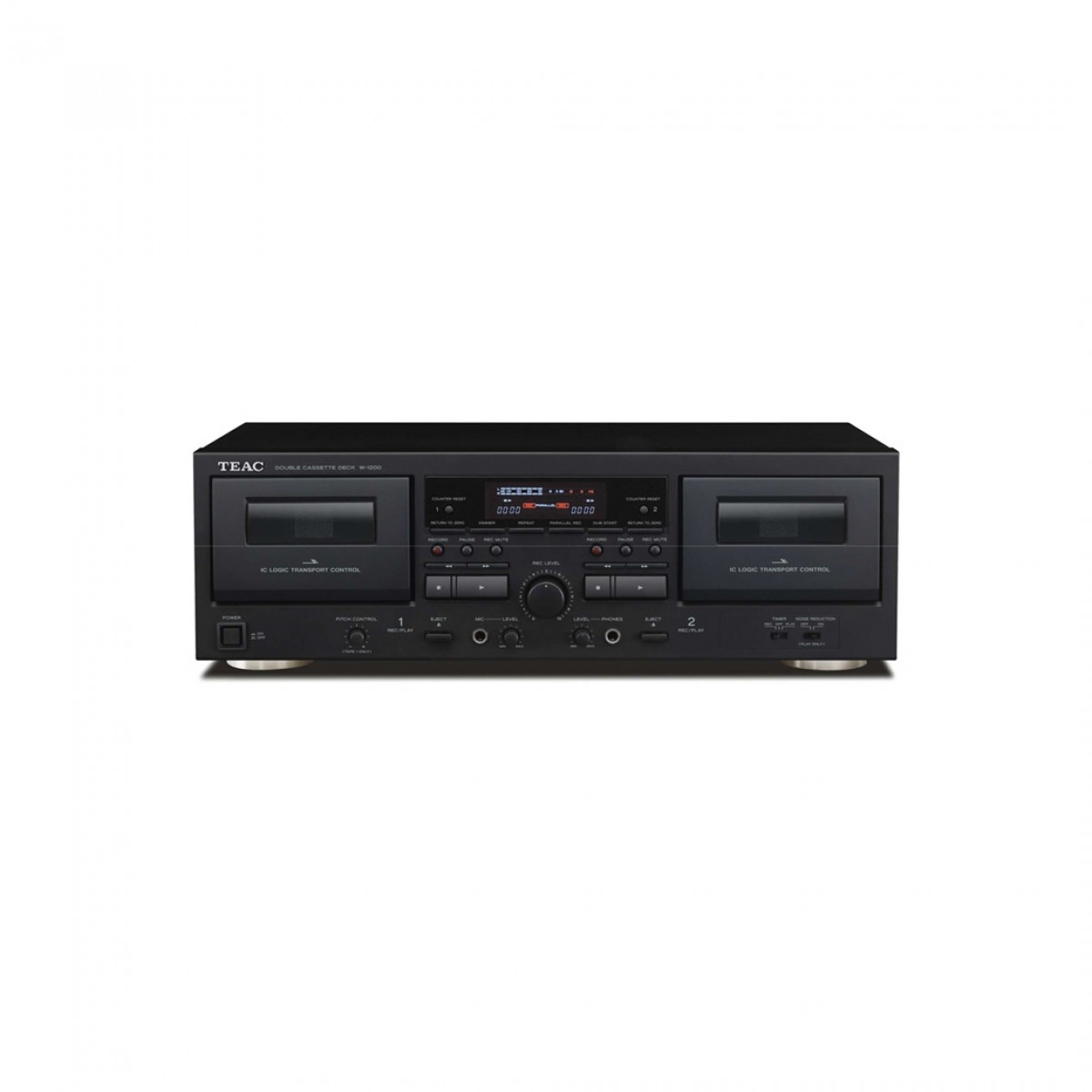

TEAC W-1200 Double Cassettedeck Black - A double cassette deck, designed for vintage audio enthusiasts and those who wish to digitise their cassette collection. It offers a wide range of modern features while maintaining the traditional characteristics of a quality deck.
The W-1200 is equipped with two recording/playback mechanisms that use a single-direction logic IC, providing superior stability and durability. It features two unidirectional cassette decks, microphone mixing, USB digital output, and other versatile recording functions. The cassette deck also allows for karaoke singing, digital recording of cassettes, and recording minutes from conferences.
The W-1200 delivers impeccable digital audio quality, at CD level, up to 48 kHz/16-bit PCM. The USB and RCA outputs allow for saving recordings from cassettes to PC and connecting to audio output devices. Its sleek black design will be a wonderful addition to your home's character. Its refined design perfectly matches the sound quality it delivers.
Features:
- Double cassette deck for recording and playback on both decks, with independent mechanisms
- Noise reduction system that suppresses hiss during playback
- REC MUTE function creates four-second pauses with a single press
- Microphone input, ideal for karaoke nights
- Parallel recording, allowing simultaneous recording on two cassettes
- Remote control for deck operation without getting up from the sofa
- USB output for digital recording of cassettes
- Fluorescent display that informs you about all deck functions
- Pitch control and RTZ function for a superior musical experience
- Elegant design that adds a touch of luxury to your home
- RCA output for connection to other audio equipment
- The noise reduction system helps ensure clear and pleasant listening
Technical Specifications:
- Track system: 4 tracks, stereo on 2 channels
- Head construction: Recording/playback head × 1 (for each deck) | Erase head × 1 (for each deck)
- Tape speed: 4.8 cm/sec
- Pitch control: ±12%
- Fast winding time: approximately 120 seconds (for C-60 cassette)
- Wow and flutter: 0.25% (W.RMS)
- Frequency response (total):
- High-quality tape (Type II): 30 Hz – 15 kHz (±4 dB)
- Normal tape (Type I): 30 Hz – 13 kHz (±4 dB)
- Signal-to-noise ratio (total): 59 dB (at maximum recording level, A-weighted)

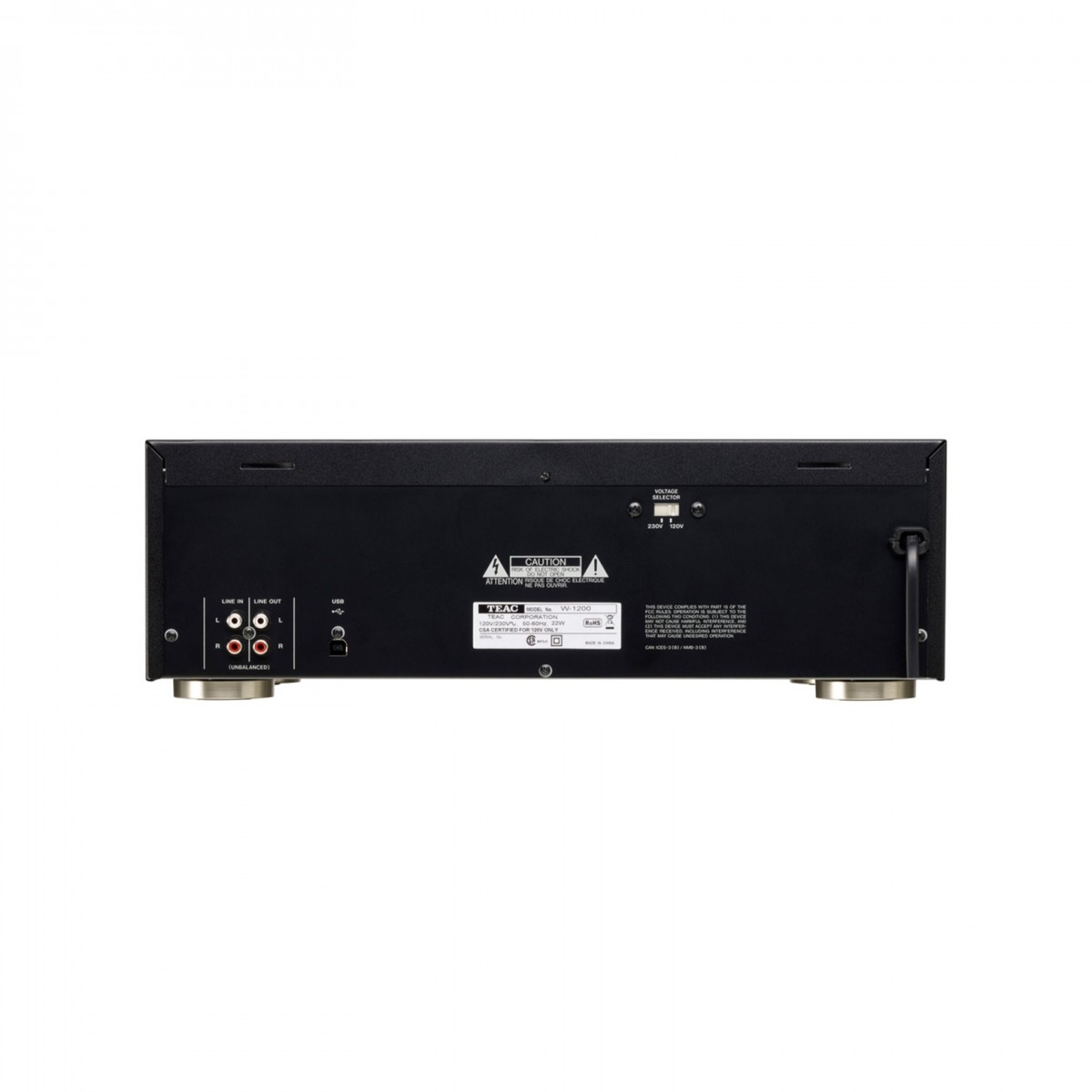

Analog inputs and outputs:
- Analog RCA inputs:
- Reference level: 0.28 V
- Input impedance: 30 kΩ or higher
- Microphone input (standard mono jack):
- Reference level: 0.38 mV
- Input impedance: 3 kΩ or higher
- Analog RCA outputs:
- Reference level: 0.46 V
- Load impedance: 50 kΩ or higher
- Headphone output: 15 mW (32 Ω)
Digital interface:
- USB 2.0 Full Speed:
- Connector: USB type B port
- Sampling frequency: according to CD standard (48 kHz / 16-bit PCM)
Power and consumption:
- Power supply (Europe model): AC 230 V, 50 Hz
- Power consumption: 14 W
Dimensions and weight:
- Dimensions (L x W x H): 435 x 145 x 285.8 mm (including protruding parts)
- Weight: 5.5 kg
Included accessories:
- Wireless remote control
- AAA batteries
- Rack mounting screw kit (2 pieces)
- User manual
- RCA cable
