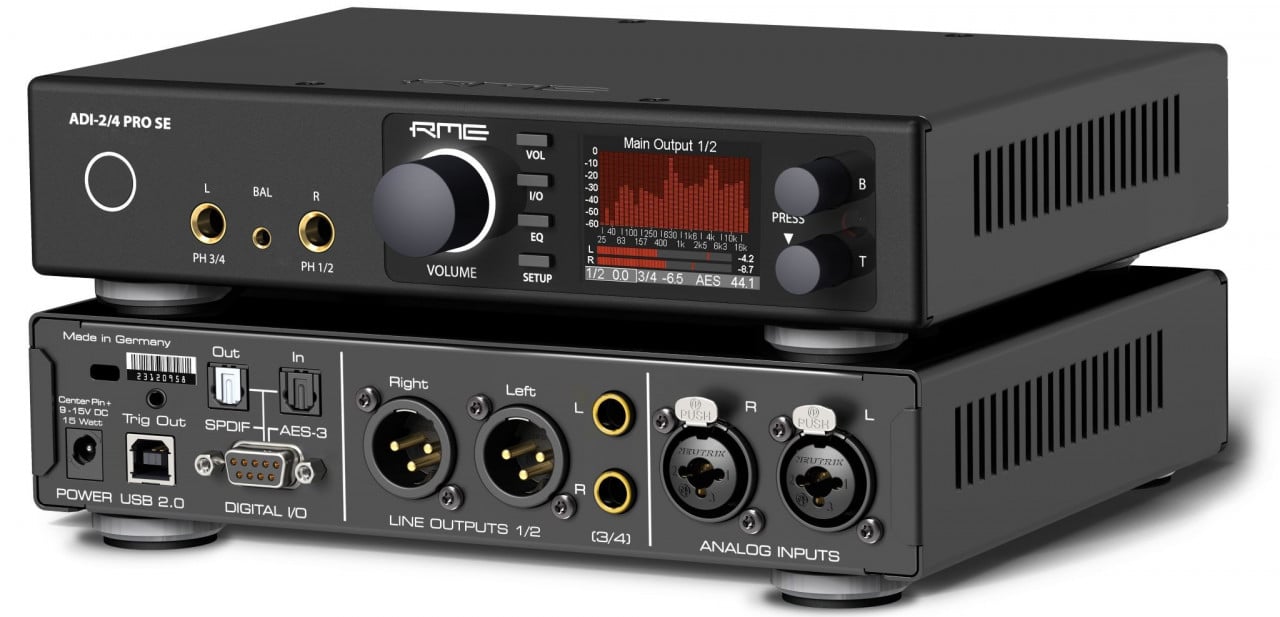

RME ADI-2/4 Pro SE

RME ADI-2/4 Pro SE is an audio interface with 2 inputs and 4 outputs capable of AD/DA conversion at a resolution of 32-bit and a sampling rate of 768 kHz. The audio interface can play back and record both PCM and DSD formats. It features a wide range of analog and digital inputs and outputs, as well as 2 high-end headphone outputs. Among other things, the RME ADI-2/4 Pro SE audio interface delivers excellent results in the digitization and archiving of analog recordings such as vinyl records, tape recordings, audio cassettes, and other sources.

The RME ADI-2/4 Pro SE audio interface is among the most high-performance equipment from the manufacturer, providing a high-fidelity audio production experience. With a remarkable resolution of 32 bits and a sampling frequency of up to 768 kHz, this interface captures and reproduces all acoustic subtleties, offering unlimited possibilities in audio post-processing. The interface is equipped with a 2-channel A/D converter and a 4-channel D/A converter.

One of its distinctive features is the SteadyClock FS technology, which ensures precise and stable real-time synchronization. The RME ADI-2/4 Pro SE easily adapts to different working environments, supporting AES/EBU, ADAT, and S/PDIF connections, as well as options for recording and playback in both PCM and DSD formats. The interface has two high-end headphone outputs, ensuring accurate and detailed monitoring in any working conditions.

Being USB 2.0 Class Compliant, the interface is easy to integrate into Mac OS X, iOS, Windows environments, or even as a standalone system. The IPS display of the interface aids in its easy operation and shows various DSP functions, such as Peak level indicators, a 30-band spectrum analyser, or the status of S/PDIF, AES, and USB connections.

Technical specifications:

• Type: AD/DA Converter
• Channels: 2 input, 4 output
• Sampling rate: 768kHz
• Resolution: 32-bit
• Analog Inputs: 2 x XLR-1/4" combo (microphone/line)
• Analog Outputs: 2 x XLR, 2 x 1/4"
• Digital Inputs: 1 x DB-9 (breakout cable: AES XLR, S/PDIF Coax), 1 x Optical (S/PDIF, ADAT)
• Digital Outputs: 1 x DB-9 (breakout cable: AES XLR, S/PDIF Coax), 1 x Optical (S/PDIF, ADAT)
• Headphone Outputs: 2 x 1/4" (L/R), 1 x 4.4mm TRRRS (Pentaconn)
• USB: 1 x Type B
• Other I/O: 1 x 1/8" (trigger)
• Special Features: SteadyClock FS
• Power Supply: 12V DC (power adapter included)
• Dimensions: 215 x 44 x 160 mm
• Weight: 1.2 kg
