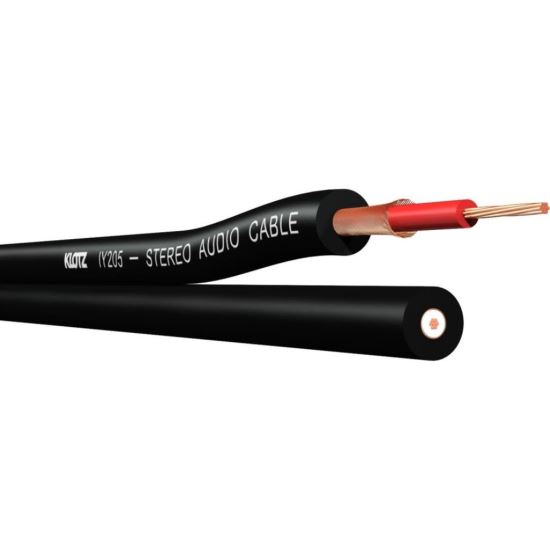

Klotz IY205

Klotz IY205, is a cable that raises the bar for excellent signal transmission in home entertainment applications or professional DJ-ing. The IY205 consists of two individual cables with a zipper design that allows for easy separation. The cable can be used for applications such as a Y adapter - for example, from a mini stereo jack to two RCA connectors. The inner conductor is stranded, flexible, with PE insulation to maintain low capacitance and prevent high-frequency loss. A copper shielding effectively minimizes interference while maintaining flexibility and is easy to work with.

• Conductor: copper wires, 7 x 0.20 mm
• Cross-sectional area: 0.22 mm2
• Core insulation: PE
• Shielding: spiral copper wires
• Number of cores: 2
• Base arrangement: parallel, separable
• Outer jacket: PVC, matte
• Dimensions: 5.0 x 10.0 mm
• Minimum bending radius: 20 mm
• Operating temperature: -20°C/+70°C
• Conductor resistance: <85Ω/km
• Capacitance: 130pF/m
• Insulation resistance: >1 GΩ x km
• Outer diameter is 2 x 5 mm
