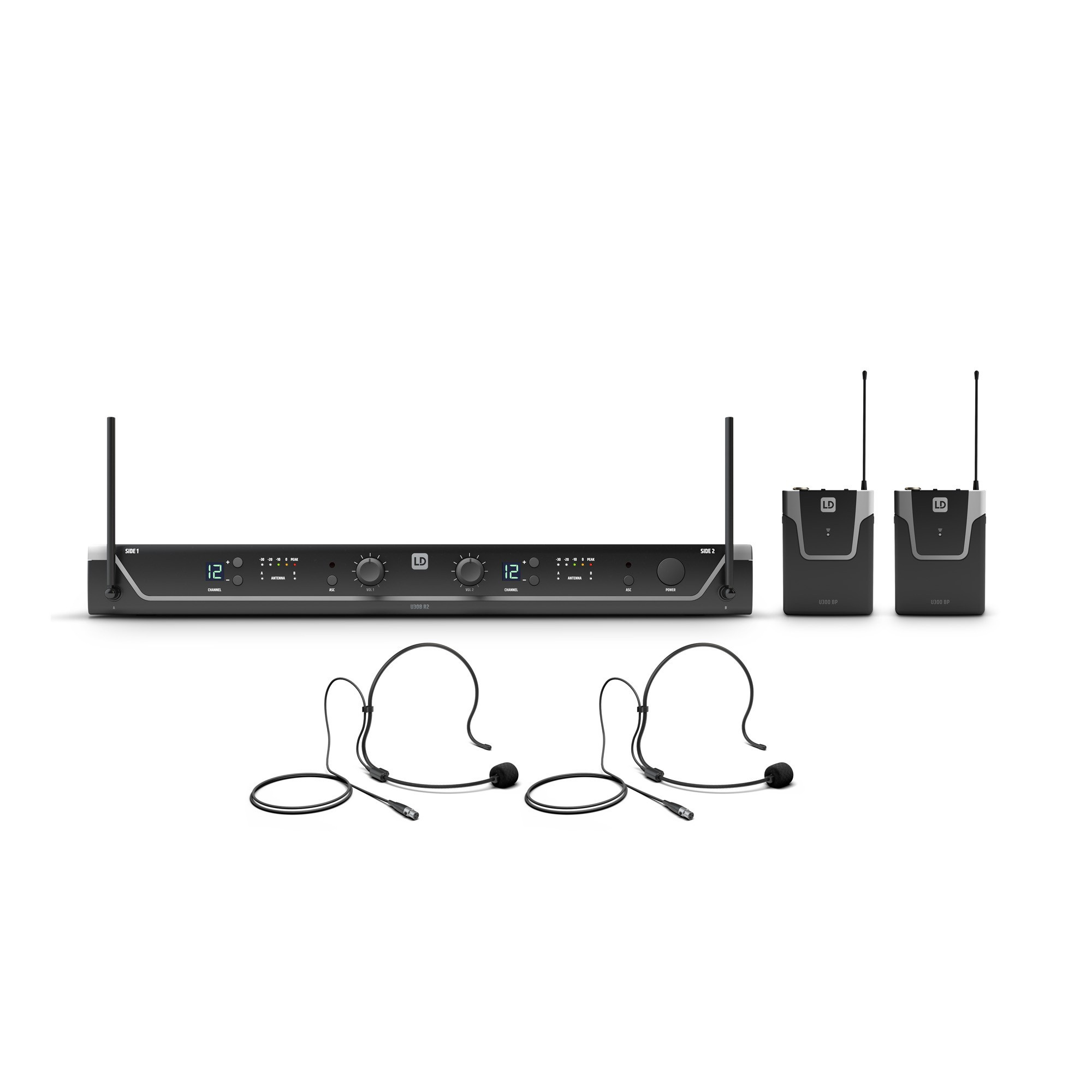

LD Systems U305 BPH 2

LD Systems U305 BPH 2 - UHF diversity wireless system with FM technology.

• 12 selectable channels
• Range of 100 meters in ideal conditions
• Up to 6 systems can be used simultaneously
• Infrared ASC synchronization between transmitter and receiver
• Squelch with pilot tone
• Transmitter operating time of 10 hours with two AA batteries
• Receiver in robust metal housing
• Rack mounting kit included

The set includes:

• Transmitter
  • 584 - 608 MHz, 584 - 608 MHz
  • Frequency response: 25 - 16,000
  • 12 channels
  • 1 group
  • Input: mini XLR
  • 2 AA batteries included
  • Operating time of 10 hours with alkaline batteries
• Dual receiver
  • 584 - 608 MHz, 584 - 608 MHz
  • Frequency response: 35 – 16,000
  • FM
  • 12 channels
  • Outputs: 3 x XLR/ 1 x 6.3 mm jack
  • 2 AA batteries included/ rechargeable battery included
• Microphone
  • Cardioid
  • Input: mini XLR
  • Nominal impedance: 680 ohms
  • Frequency response: 20 – 20,000
  • Phantom power required: 5 V
