Audac ALTI6M/W

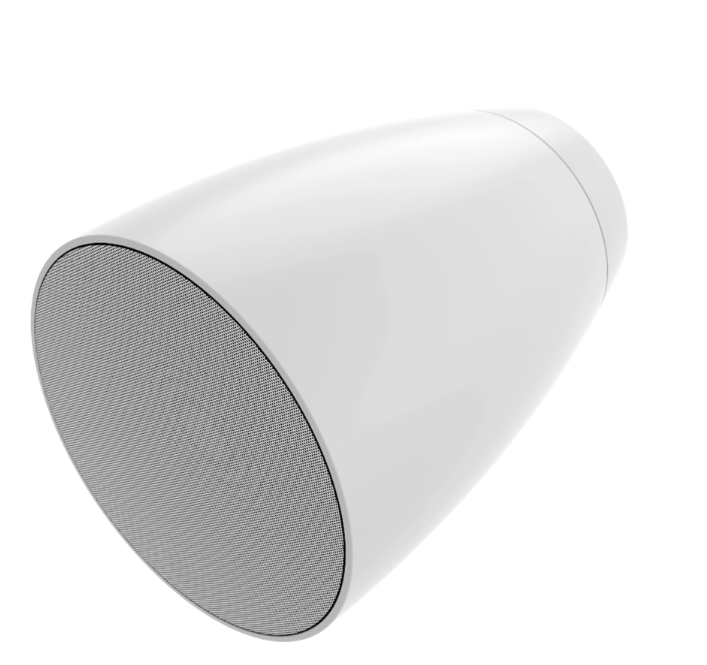

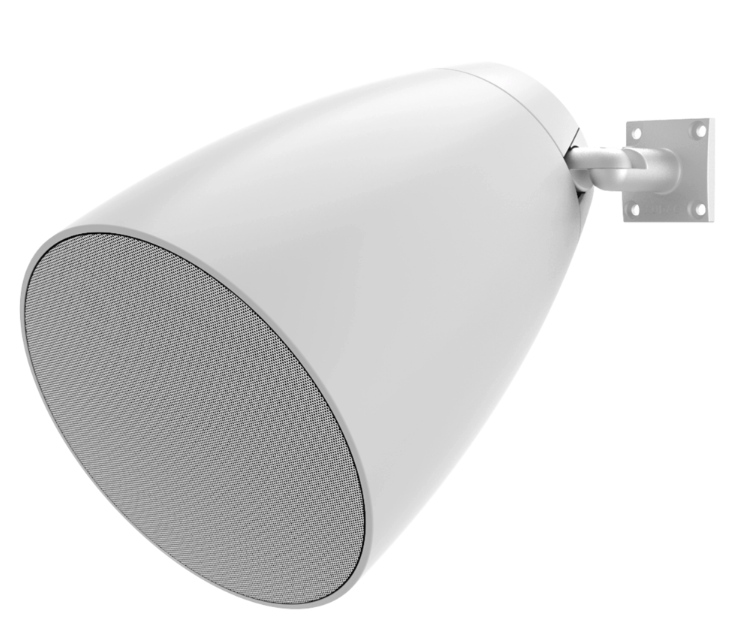

Audac ALTI6M White – Speaker with mounting bracket for wall installation, designed for wall and ceiling mounting. This allows for maintaining the same design and identity of the audio system throughout the installation, in cases where some areas do not permit the use of suspended solutions due to ceiling height or structures. The acoustics and construction are made identically, while connections are made via weather-resistant AWX5™ connectors, this construction having an IP65 rating.

ALTI6M features a 2-way configuration: a 6.5" driver, with a 1" soft dome tweeter mounted coaxially and is equipped with a phase connector for excellent off-axis performance. The 2-way combination with a high-quality polypropylene enclosure and high-level acoustic engineering guarantees premium performance for demanding applications. It achieves a continuous power of 60 Watts (RMS) and a maximum power of 120 Watts.

Specifications:

• Type of speaker coaxial 2-way
• Power 120 W
• RMS Power 60 W
• Impedance 16 Ω
• Line transformer Connections
• Dispersion Conical 115° (average from 500 Hz to 5 kHz @ -6 dB)
• Connectors AWX-5 waterproof connector
• Sensitivity (1 W/1 m) 83 dB
• Sound pressure (max. W/1m) @ 16 Ω 101 dB
• Frequency range (-10 dB) 61.5 Hz - 20 kHz
• Response (± 3 dB) 75 Hz - 17 kHz
• Protection rating IP65

• 1 - 83 Ω - 100 V / Not used - 70 V / 60 W
• 2 - 167 Ω - 100 V / 60 W - 70 V / 30 W
• 3 - 333 Ω - 100 V / 30 W - 70 V / 15 W
• 4 - 667 Ω - 100 V / 15 W - 70 V / 7.5 W

Product features:

• Dimensions 230 x 302 mm
• Connection cable length 0.7 m
• Construction Polypropylene
• Front finish Aluminium grille
• Mounting and handling 2-way rotating mounting bracket
• Included accessories 5-pin connection cable (70 cm)
• 2-way rotating mounting support
