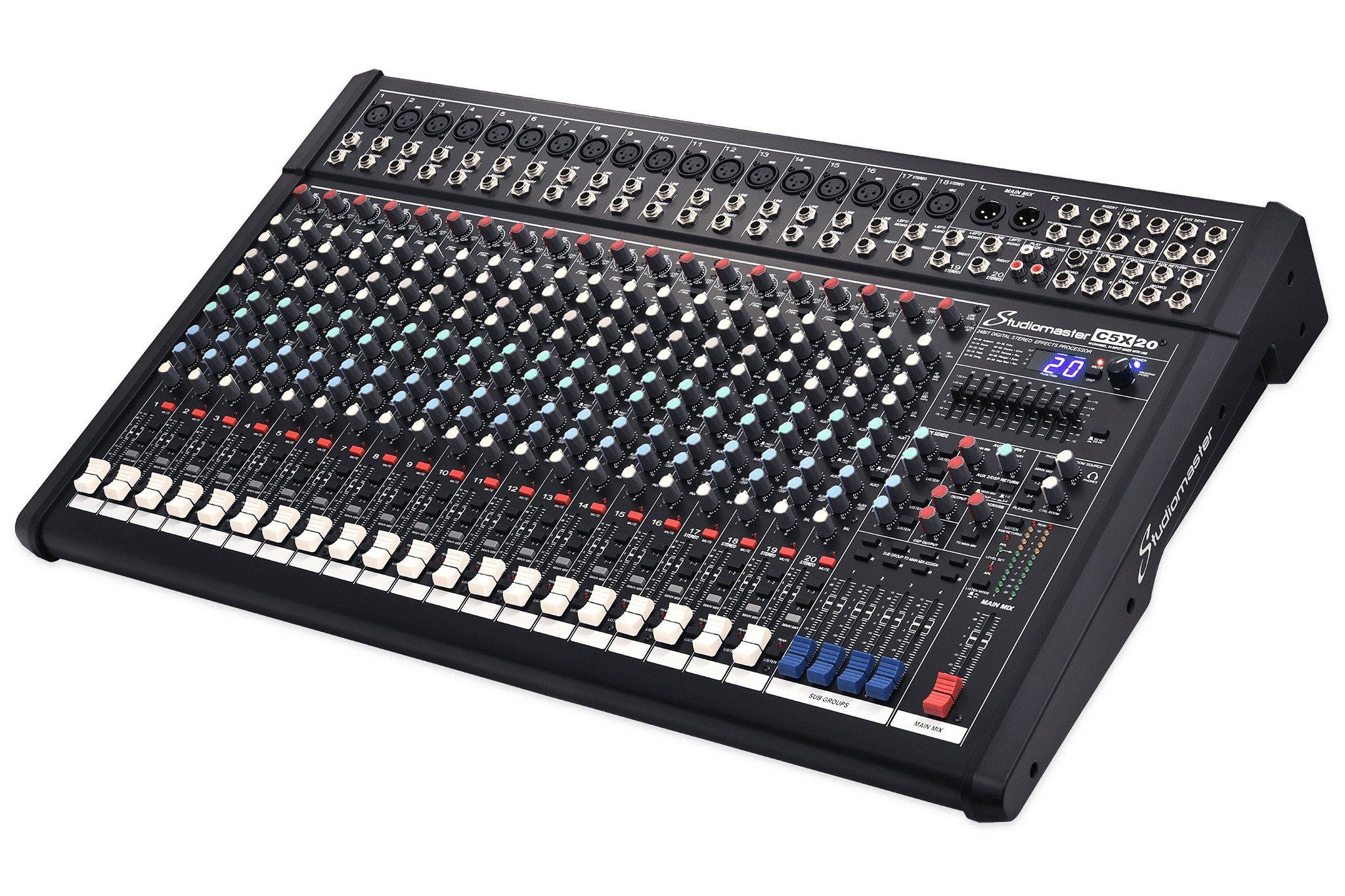

Studiomaster C5X-20 - Studiomaster C5X-20 – Analogue mixer with 20 channels, including 16 microphone inputs and 4 stereo inputs, as well as up to 6 AUX buses. It features an ultra-low noise microphone preamplifier, +48V phantom power, and a 24-bit DSP processor that offers a wide range of effects, including multiple types of Reverb (Ambient, Plate, Hall), Delays, Chorus, Tremolo, Flanger, and many more.
The DSP includes 10 presets, each with 10 variables, along with a “Mute DSP” switch and a peak indicator. Additionally, the 4-band EQ for mono/stereo channels allows for precise control over the mix in applications such as small to medium live events, fixed audio installations, or studio recordings.
- Analogue audio mixer with 20 channels, DSP effects & microphone preamplifier
- Connections (inputs/outputs):
- Mono microphone inputs x 16 (with gold-plated XLR connector and balanced TRS)
- Stereo inputs x 4 (with balanced TRS connector)
- 2TRK input: can be routed to the main mix and Control Room/Headphone outputs
- Main outputs: balanced XLR for main mix L/R
- Control Room/Headphone outputs: balanced
- Auxiliary outputs: 4 AUX SEND buses
- Subgroup outputs: 4 mono subgroups
- USB input: for audio playback (MP3)
- USB output: for audio recording
- Equalisation (EQ):
- Channels 1–16: 3-band EQ with variable MID
- Channels 17–20: 4-band EQ
- Integrated 24-bit DSP:
- Effects such as Reverb, Delay, Chorus, Tremolo, Flanger, etc.
- 10 DSP presets with 10 variable parameters
- MUTE DSP switch for activating/deactivating effects
- Peak indicator: for signal monitoring
- Microphone preamplifiers: ultra-low noise with +48V Phantom power
- Switches:
- MUTE and SOLO (PLF) on all channels
- PRE/POST on each channel
- SUB1-2, SUB3-4 and MAIN L/R for signal routing
- Power supply: 100V - 240V AC
- Dimensions: 525 x 80 x 390 mm
- Weight: 7.3 kg
