Klotz PowerLink 4-channel power distribution TRUSS1x power IN - 4x power OUT - 1x powerCON TRUE1 M - 4x powerCON TRUE1 F

• 1x input and 4x output
• extremely rugged housing acc. to UL94 class V-0
• suitabel for outdoor use in ultraviolet light acc. to UL746C
• ultra light construction
• quick and easy attachment to the truss
• 2x truss mounting clamp with safety ring
• optional M10 mounting (POWER-LK-BR)
• current carrying capacity up to 16A / 250V
• quality tested acc. to VDE 0701-0702
• complies to IEC 62368-1

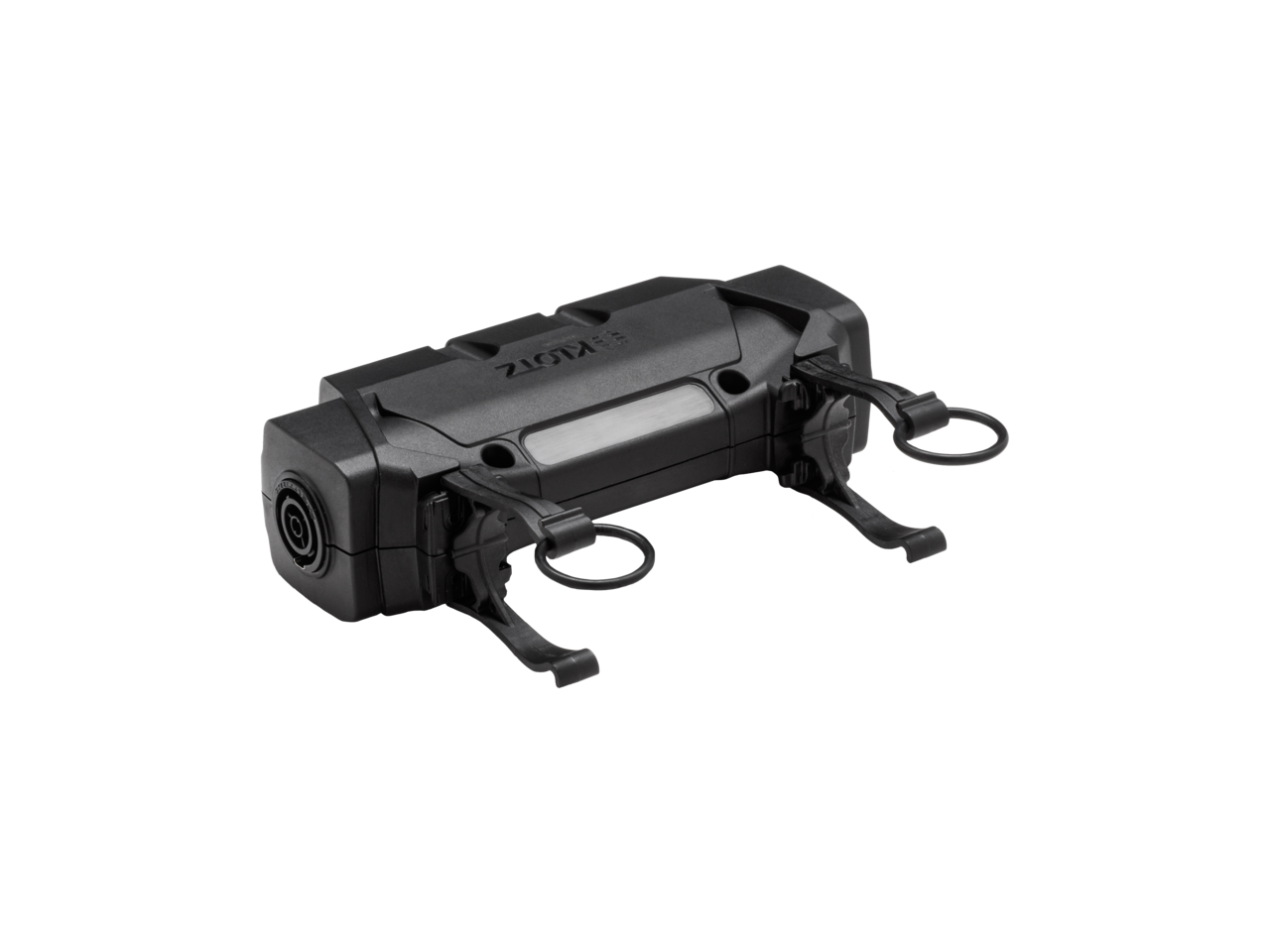

The PowerLink Truss & Stagebox is an extremely robust, ergonomic and easy-to-use power distribution system. It is equipped with one input and four outputs. It offers a current carrying capacity of up to 16A/250V. Due to the compact size and the ergonomic arrangement of the connections, easy handling is guaranteed even in tough everyday stage use - and even with gloves. The plastic housing has a design with rounded absorber edges, but also the robust surface is particularly shock-absorbent. External forces are thus perfectly diverted. Inside the box, reinforcing cross ribs, in conjunction with six enclosure screws, give the PowerLink Truss & Stagebox a very high level of resistance and ensure compliance with current safety standards. A fall from truss height is easily absorbed, which underlines the robustness and durability. In addition, the housing is ultra-light. The PowerLink Truss & Stagebox can be easily and quickly attached to a truss via two PowerLink Clamps; additional securing with two O-rings is also possible. Alternatively, the box can be equipped with an optional metal bracket on the underside. This has 2 pre-drilled holes as well as an M10 screw connection to ensure screwed fastening.

box

housing: plastic, Ultramid C3U

panel connectors: powerCON TRUE1 (compatible)

channels: 4

connector 1: 1x powerCON TRUE1 M (compatible)

connector 2: 4x powerCON TRUE1 F (compatible)

Caracteristici

connector 1	1x powerCON TRUE1 M
connector 2	4x powerCON TRUE1 F
housing	plastic, Ultramid C3U
housing color	black
