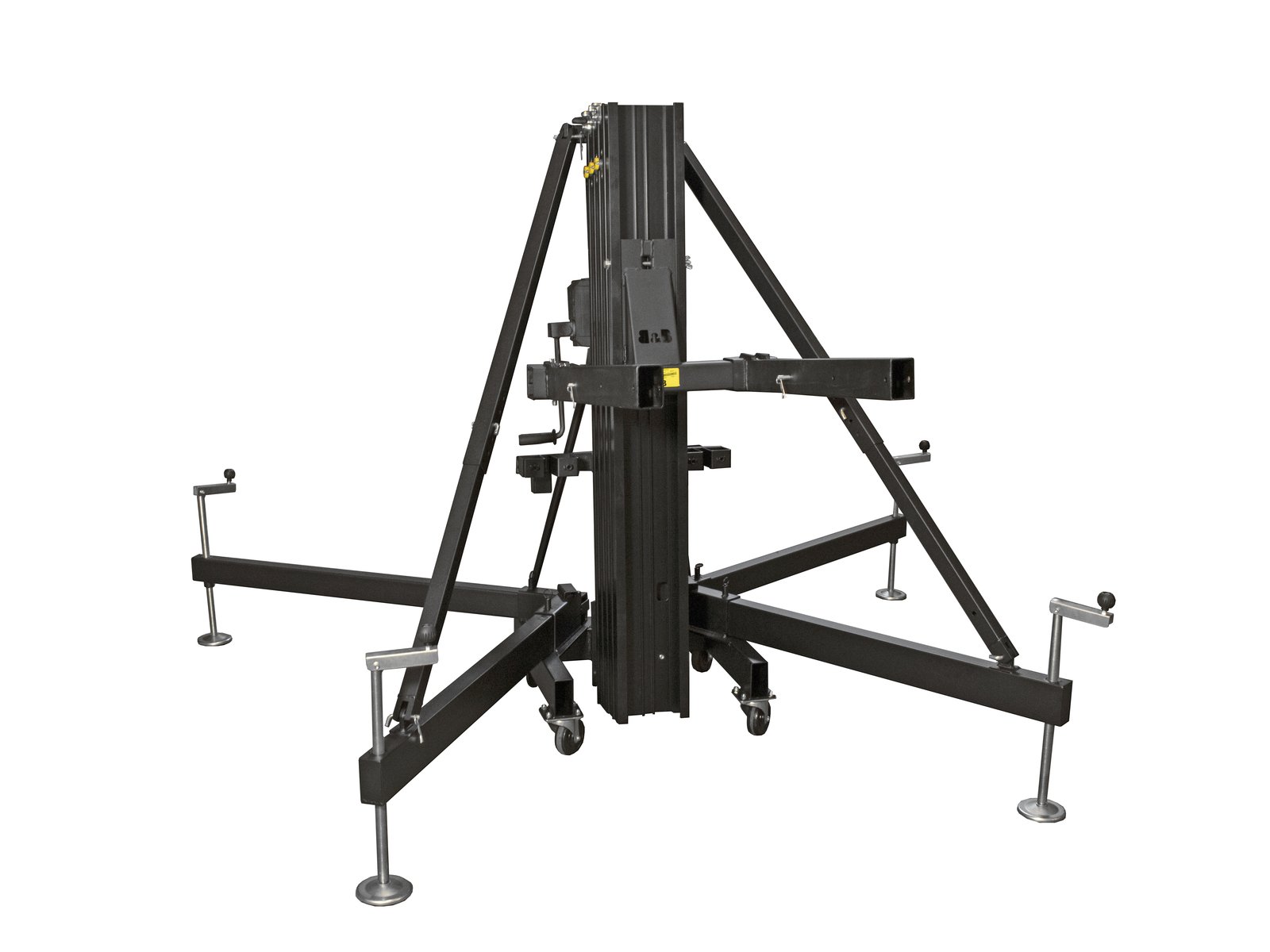

Block And Block ALFA-50 Truss lifter 550kg 5.1m

Truss stand

high-quality truss stand for loads up to 550 kg, made in the EU.
telescopic support with safety bolts for secure height adjustments.
aL-KO 1201 PLUS winch with a maximum load of 1350 kg.
corrosion-resistant with an epoxy coating and includes a spirit level.
weight: 207.00 kg, compliant with DIN EN 13157 and EN 12100 standards.

5 823⁴⁰ €

Currently unavailable. Request details

Central warehouse: 0

Add to cart

Shipping free

Warranty 24 months

Returns 14 days

request details

Block And Block ALFA-50 Truss lifter 550kg 5.1m Add to cart: 5 823⁴⁰ €

High-quality truss stand for loads up to 550 kg, manufactured in the EU:

Telescopic support in four sections
Safety bolts for locking sections at different heights
Locking bolts in the base area for securing the arms
Arms with adjustable axle and steel plate with non-slip rubber base
Corrosion protection through epoxy coating
Spirit level to ensure vertical positioning
Connection for grounding
Transport wheels for moving the lift when retracted
AL-KO 1201 PLUS winch: maximum load 1350 kg with automatic holding brake
Galvanized steel ropes 7x19+1, manufactured according to standard 13414-1:2004, tensile strength 1770N/mm2
Material: S-275-J0H carbon steel, manufactured according to standards EN10219 and EN10305.5
Compliant with DIN EN 13157 and EN 12100 I and II

Specifications:

Maximum transport capacity: 550 kg
Standard: DIN EN 13157, EN 12100 I and II
Height: Maximum: 510 cm above the 4 sections
Minimum: 166 cm
Type (general stands): Truss lifter
Weight: 207.00 kg

Product code: 5900043E

Unit of sale: piece
