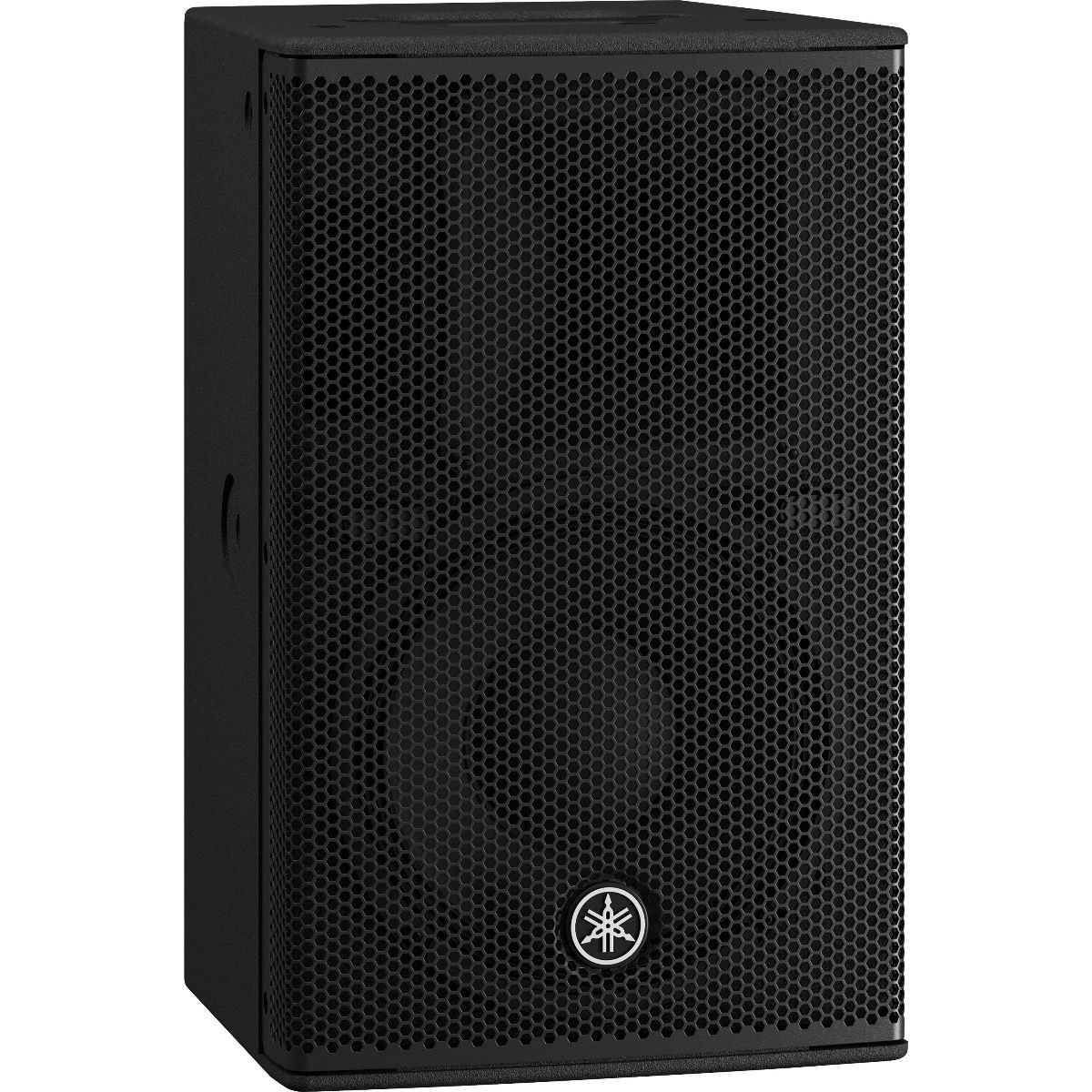

Yamaha DHR-10

Active Speaker

2-way, bass reflex design for optimal sound performance.
frequency response from 52 Hz to 20 kHz, ideal for various applications.
class D amplification with RMS power of 325 W for powerful audio output.
rotatable coverage of H90° x V60° for versatile placement options.
durable plywood cabinet and lightweight design for easy transport.

566²⁵ €

Currently unavailable. Request details

Central warehouse: 0

Add to cart

Shipping free

Warranty 24 months

Returns 14 days

request details

Yamaha DHR-10 Add to cart: 566²⁵ €

Yamaha DHR-10 - Active speaker with a robust, portable design made from durable plywood. It is an ideal choice for fixed installations and small events.

2-way, bass reflex design
Frequency response: 52 Hz - 20 kHz
Coverage: H90° x V60° (rotatable)
Crossover: 1.9 kHz FIR-X tuning (linear phase FIR filter)
Max SPL: 128 dB
10” low-frequency driver, 2” voice coil
1.4” high-frequency driver, 1” voice coil
Class D amplification
RMS power: 325 W (LF: 260 W, HF: 65 W)
Peak power: 700 W (LF: 500 W, HF: 200 W)
4-speed fan cooling
AD/DA converters: 24 bit 48 kHz
Processors: HPF: OFF, 100 Hz, 120 Hz, 24 dB/Oct.; D-CONTOUR: FOH/MAIN, MONITOR, OFF
Input/output connectors: INPUT1: Combo x1, INPUT2: Combo x 1 + RCA pin x 2 (unbalanced), OUTPUT: XLR3-32 x 1 (CH1 or mix CH1+CH2)
Cabinet material: plywood
Handle located on top of the speaker
Dimensions: 305 mm x 494 mm x 300 mm
Weight: 15.0 kg

Product code: VDJ6330

Unit of sale: piece

Specifications:

Amplification - continuous power:	325 W
Mid-bass speaker:	10"
High speaker:	1.4"
Lower frequency limit (Hz):	52 Hz
Upper limit high frequencies (kHz):	20 kHz
Maximum SPL (dB):	128 dB
Enclosure:	Wood
