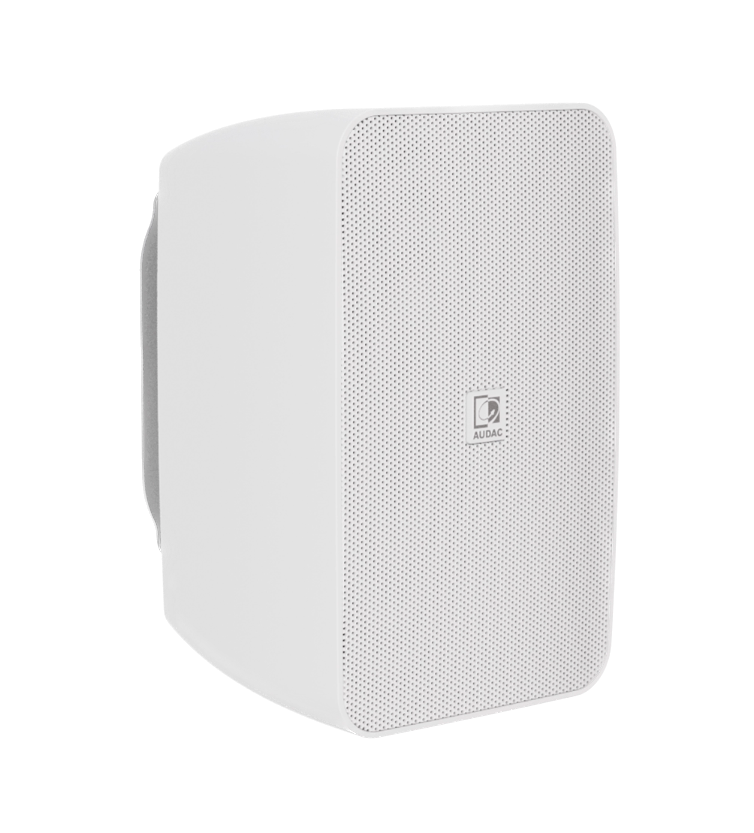

Audac ARE S5A White - is a 2-way audio system, consisting of an active unit and a passive one that must be connected together. It offers an easy and flexible solution for a wide variety of applications. The 2-way speaker is carefully constructed from high-quality components, resulting in a 5 ¼" woofer and a ½" high-frequency tweeter. This craftsmanship combined with an integrated DSP creates an extremely clear and powerful sound experience for a wide range of applications.
The integrated amplifier can deliver a power of 2 x 40 Watts and includes a stereo line input that is implemented balanced and unbalanced, allowing convenient connection to any type of audio source. Unbalanced audio sources are connected via a 3.5 mm jack connector, while balanced sources can be connected to the terminal block input connection, allowing long signal runs without interference. A volume potentiometer allows the user to adjust the sound intensity level, while the two-band tone control enables equalisation of high and low frequencies. The automatic standby mode reduces power consumption when no input signal is detected. The active speaker includes a stereo amplifier module, which also delivers the input signal to the passive unit.
A specially designed support system allows the speakers to be installed close to the wall, while the embedded support structure ensures an optimal system image. ARES5A can be mounted both horizontally and vertically, with an inclination of up to 45° on both sides, allowing positioning of the speaker in the correct direction. Due to the fact that the support itself consists of 2 angles of 45°, installation in corners or even on the ceiling can be easily achieved. The optional inclined mounting support set MBK455 allows an additional tilt of 90° when necessary.
To ensure optimal safety during and after installation, ARES is equipped with an M6 drop safety device.
A remote input connection implemented via an RJ45 connector allows connections to the wall panel, enabling system expansion through remote input modules. A variety of optional remote input units with different input possibilities are available.
Specifications:
- RMS/AES Power 2 x 20 W
- Dynamic Power 2 x 40 W
- Sensitivity (1W/1m) 89 dB
- Sound Pressure (max. W/1m) 105 dB
- Frequency Response (± 3 dB) 80 Hz - 20 kHz
- Nominal Power Consumption (1/8 MUP) 11.3 W
- Standby < 0.35 W
- Inputs Balanced stereo connector 2 x Euro terminal block with 3 pins (pitch - 3.81 mm)
- Unbalanced stereo connector 3.5 mm Jack (2x)
- Remote connector RJ45
- Power Supply 100 ~ 240 V AC / 50 ~ 60 Hz
- IEC C7/C8 power input connector
- Remote connectors RJ45
- Outputs Passive Speaker Euro terminal block with 2 pins (pitch - 5.08 mm)
- High HF driver 13 mm (PEI tweeter)
- Low LF driver 5 1/4" (polypropylene)
- Horizontal Dispersion 210° (average -6 dB / 100 Hz - 10 kHz)
- Vertical Dispersion 205° (average -6 dB / 100 Hz - 10 kHz)
Features:
- Dimensions 150 x 240 x 146 mm (without support) and 150 x 240 x 194 mm (with support)
- Weight 3.5 kg (pair)
- Construction ABS
- Front Finish Powder-coated steel grille with padding
- Support Powder-coated steel
- Impact-resistant and UV-resistant ABS construction
- Included Accessories
- Mounting bracket
- Power cable
- 3.5 m speaker connection cable
- Screws and wall plugs
- Optional WP205 - ARES5A wall panel (NOT INCLUDED)
