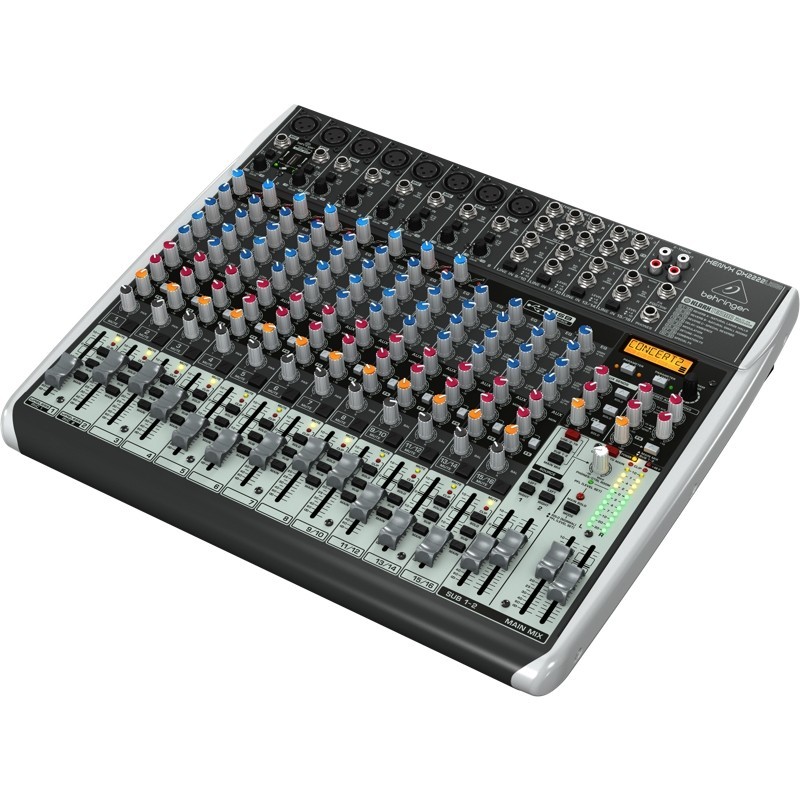

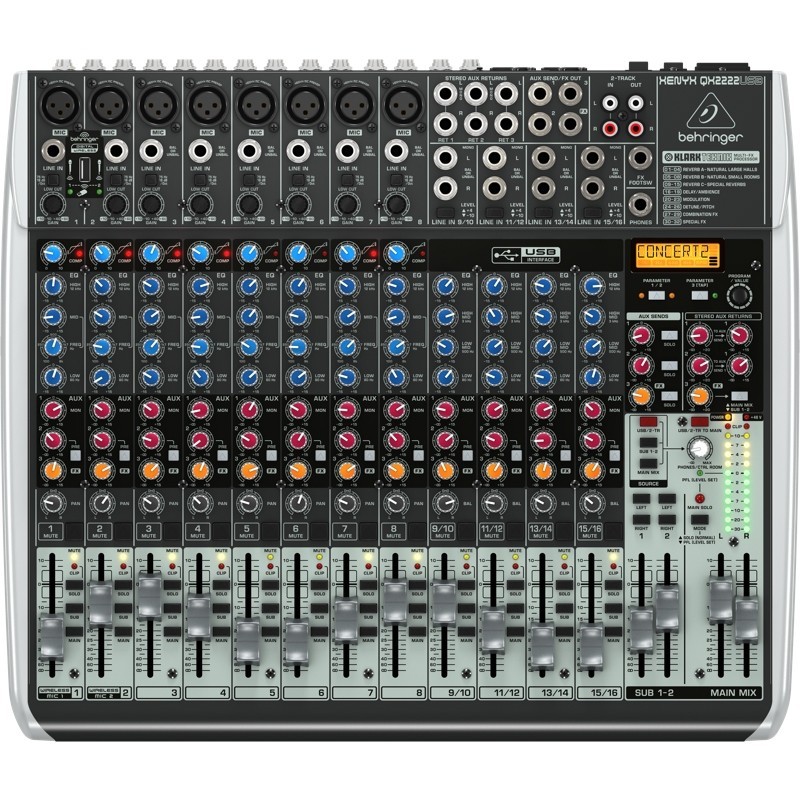

Behringer Xenyx QX2222USB - audio mixer with USB audio interface, 4 stereo channels, 8 microphone inputs with XENYX preamps, phantom power +48V and compression, 3 auxiliary sends per channel, 2 subgroups, "wireless-ready" channels for automatic connection of ULM wireless microphones, Klark Teknik effects processor with 100 effects. Includes audio editing and recording software.
The built-in 24-bit dual-engine effects processor has 32 presets including reverb, chorus, flanger, delay, pitch shifter, and multi-effects. You can edit the parameters of each preset and a tempo button is included to sync time-based effects. The eight integrated compressors are designed to simplify the dynamics control process in your mix. With a single button, you can shape the amount of compression you need for any given sound. The eight XENYX preamps provide a dynamic range of 130 dB, and the "British" style 3-band EQs allow you to finely adjust the mix. The mixer includes a USB port for connecting up to two digital wireless microphones. The XENYX QX2222USB is suitable for recording studios, video editing suites, live sound mixing, podcasting, and much more.
Technical specifications:

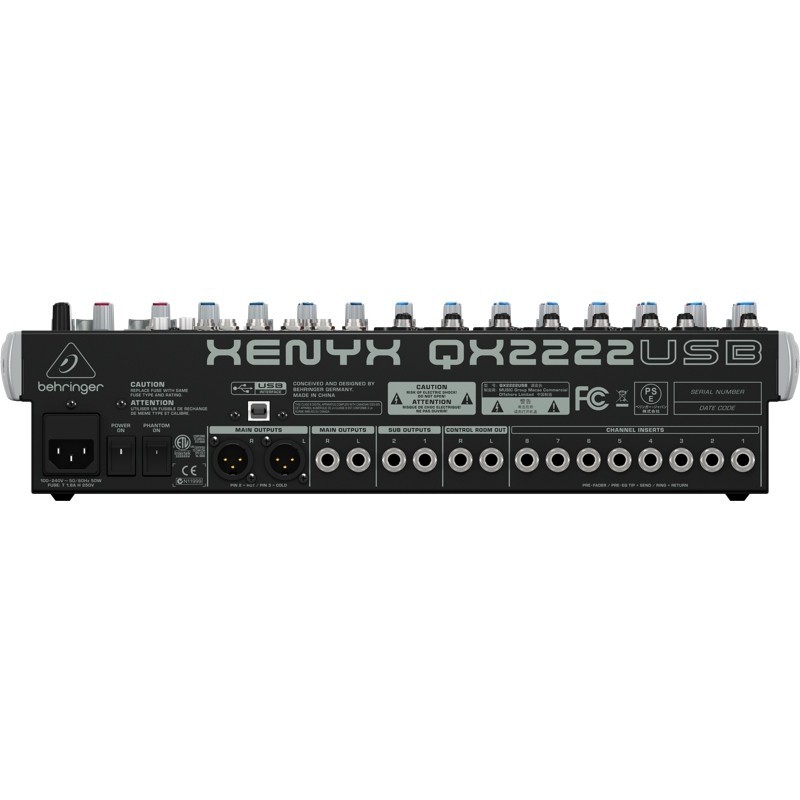

- Total number of inputs: 22
- Microphone/line inputs:
- 8 microphone inputs with XLR connectors
- 8 line-level inputs with 1/4" TRS jack connectors
- Stereo line inputs: 4 with 1/4" TRS jack connectors, left/right input pairs
- Aux Sends: 3 with 1/4" TRS jack connectors, balanced
- AUX Returns: 3 with 1/4" TRS jack connectors, balanced
- Inserts: 4
- BUS Outputs (Groups): 2 sub-groups
- Master Trk Inputs/Outputs:
- 2 x balanced XLR
- 2 x 1/4" TRS jack
- ALT Inputs/Outputs: 2 x 1/4" TRS jack
- Stereo RCA outputs: 2
- Monitor outputs: 2 x 1/4" TRS jack (control room outputs)
- Headphone output: 1 x 1/4" stereo jack
- EQ section: 3-band EQ with mid sweep on each channel
- Solo/Mute: Mute and solo buttons on each channel
- Volume control per channel: 60 mm linear potentiometers (faders)
- Trim/Gain control: yes
- Metering: 12-segment stereo LED meters
- LED Clip indicator: on each channel
- Microphone inputs:
- Connector type: XLR, electronically balanced, discrete input circuit
- Microphone input noise (E.I.N.): 20 at 20,000 Hz
- Preamp frequency response:
- < 10 at 150,000 Hz (-1 dB)
- < 10 at 200,000 Hz (-3 dB)
- Microphone input to main output:
- Gain range: 10 to 60 dB
- Maximum input level: +12 dBu at +10 dB Gain
- Impedance: approximately 2 kΩ balanced
- Signal-to-noise ratio: 106 dB / 108 dB A-weighted (0 dBu In at +22 dB gain)
- Total harmonic distortion (THD): 0.005% / 0.004% A-weighted
- Phantom Power: selectable, +48V
- Line input:
- Connector type: 1/4" TRS jack, balanced
- Impedance: approximately 20 kΩ, 10 kΩ unbalanced
- Gain range: -10 to +40 dB
- Maximum input level: 30 dBu
- Stereo input:
- Connector type: 4 x 1/4" TRS jack, balanced
- Impedance: approximately 20 kΩ, 10 kΩ
- Gain range: -20 to 20 dB
- Maximum input level: 22 dBu
- EQ type for mono channels:
- Low frequencies: 80 Hz, ± 15 dB
- Mid frequencies: 100 to 8,000 Hz, ± 15 dB
- High frequencies: 12,000 Hz, ± 15 dB
- EQ type for stereo channels:
- Low frequencies: 80 Hz, ± 15 dB
- Mid frequencies: 500 Hz, ± 15 dB
- High frequencies: 3,000 Hz, ± 15 dB
- High frequencies: 12,000 Hz, ± 15 dB
- AUX section:
- AUX Sends: 3 x 1/4" TRS jack connectors, balanced
- Impedance: approximately 120 Ω
- Maximum output level: 22 dBu
- AUX Returns: 1/4" TRS jack connector, electronically balanced
- Impedance: approximately 20 kΩ balanced, 10 kΩ unbalanced
- Maximum input level: 22 dBu
- Main outputs:
- Connectors: XLR, balanced
- Impedance: approximately 240 Ω balanced, 120 Ω unbalanced
- Maximum output level: 28 dBu
- Control Room outputs:
- Connector type: 1/4" TS jack balanced
- Impedance: approximately 120 Ω
- Maximum output level: 22 dBu
- Headphone output:
- Connector type: 1/4" TRS jack, unbalanced
- Impedance: 25 Ω
- Maximum output level: +21 dBu / 150Ω (+25 dBm)
- DSP:
- Type: Klark Teknik
- Converter: 24-bit Sigma-Delta, 64/128-times oversampling
- Sampling rate: 40 kHz
- Wireless:
- USB dongle: supports signals from 2 independent Behringer ULM microphones
- USB Audio: Stereo input/output
- USB Type: Type B
- Converter: 16-bit
- Sampling rate: 48 kHz
- Noise:
- Main mix at -∞ with channel fader at -∞: -100 dB / -103 dB A-weighted
- Main mix at 0 dB with channel fader at -∞: -85 dB / -88 dB A-weighted
- Main mix at 0 dB with channel fader at 0 dB: -78 dB / -80 dB A-weighted
- Power supply: 100 to 240 V, 50/60 Hz
- Consumption: 50 W
- Fuse rating: 100 to 240 V: T 1.6 A H 250 V
- Power connector: standard IEC
- Dimensions (H x W x D): 430 x 370 x 90.0 mm
- Weight: 4.80 kg
