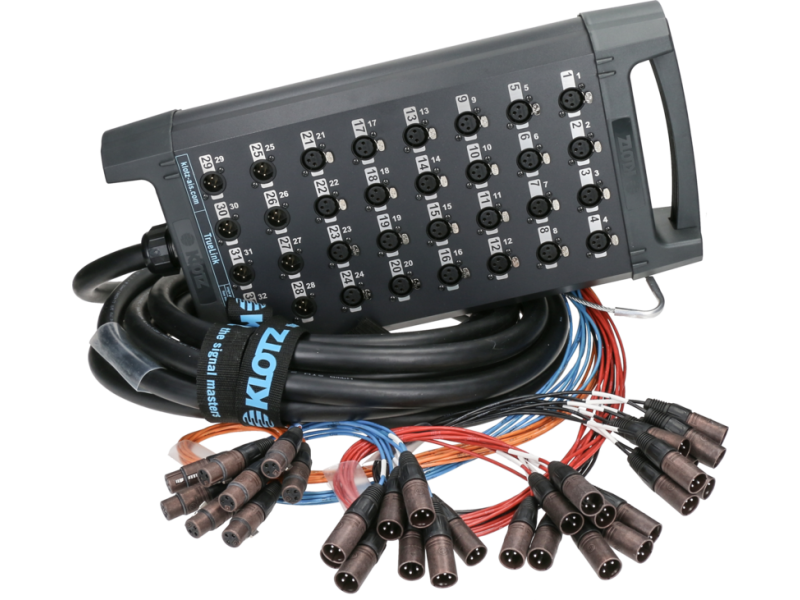

Klotz TrueLink 24/8 XLR 3p32-channel - single ground - 20 m

• made of robust extruded aluminium profile (3 mm), scratch-proof powder coating, black, break-proof plastic caps with integrated handle
• very compact multicore cable with 0.22 mm² conductor cross section achieved by foil shielded pairs without jackets

Our TrueLink Stage Boxes feature a sophisticated concept and versatile configuration options, and are ideal for a broad range of uses. Whether the FOH desk is 10m or 50m away, there’s a TrueLink Stage Box for every situation. The housing is made from a 3mm solid aluminium extruded section with breakproof plastic sides and has a carry handle or a cable outlet on both sides, depending on the model. Anything is possible – from 16-in-4 to 32-in-8, with round multipin connectors or, on request, with Harting connectors. There’s even a parallel version with one input and output per channel (as a passive split box) and a data stage box version for four CAT cables and eight digital audio channels.

box

housing: made of robust extruded aluminium profile (3 mm), scratch-proof powder coating, black, break-proof plastic caps with integrated handle

dimension: l=500 mm; w=245 mm; h=100 mm

panel connectors: 24x female, 8x male - plastic shell, gold-plated contacts

strain relief (box side): ZEFLEX, plastic spiral anti-kink protection

cable

channels: 32

cable typ: audio multicore - n x 2x 0.22 mm²

strain relief (cable end): steel mesh with loop

fanout connectors: 24x male, 8x female - sparkling bronze metallic shell, silver-plated contacts

fanout length: 0.8 m

Caracteristici

channels	32
XLR inputs	24
XLR outputs	8
length	20 m
