- high-quality aluminum design, black matt RAL, with non-slip rubber feet and abrasion-resistant laser engraving
- PolyWIRE, Ø 0.22 mm², high flexible studio multicore, XLPE insulation (cross-linked PE)
- outstanding sound quality on stage and in the studio
- ideal for studio installation or everyday stage use
- incl. metal cable pulling grip as strain relief
- incl. KLOTZ cable carrier with brass eyelet

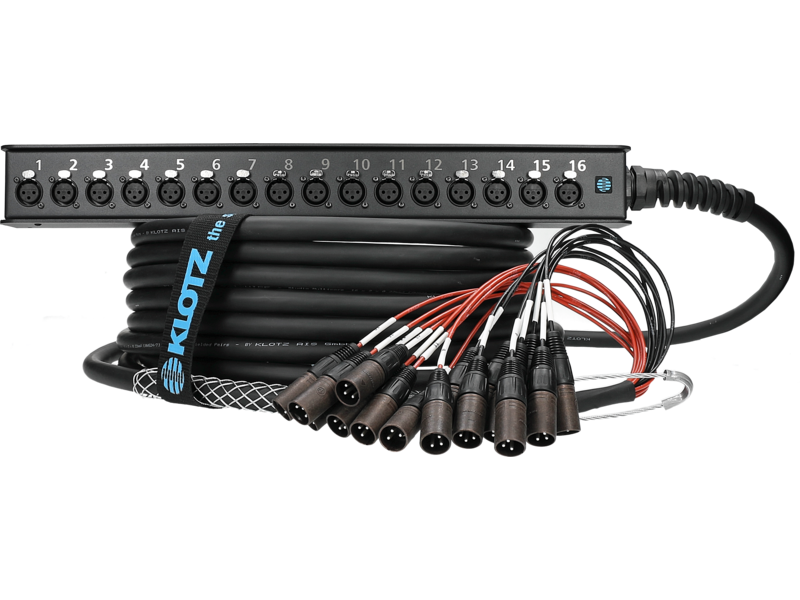

These popular stage boxes feature compact dimensions and premium details. They are available in configurations that reflect common practice and are ideal as sub-stage boxes, as sub-distribution panels for drumkits, or even as full-scale multicore systems. Every combination from 6 to 16 inputs and 2 to 4 outputs is possible, and multicore lengths from 5 to 30 m extend into every corner of small and medium-sized stages. SLW Stage Boxes naturally have the KLOTZ hallmark features you would expect: our own XLR boards developed in-house, plus neatly ordered cable runs with matching strain relief elements which ensure that the hand-soldered contacts are never exposed to tensile strain – significantly extending the life of the stage box. The rugged aluminium housing has non-slip rubber feet and laser-engraved labelling. 12-channel models and upwards have a metal cable grip with suspension loop for strain relief and anti-kink protection. And by the way, the budget-friendly StraightLinks are entirely Made in Germany!
box
| housing: high-quality aluminum design, black matt RAL, with non-slip rubber feet and abrasion-resistant laser engraving |
| dimension: l=496 mm; w=61 mm; h=64.5 mm |
| panel connectors: 16x female - sparkling bronze metallic shell, silver-plated contacts |
| strain relief (box side): ZEFLEX, plastic spiral anti-kink protection |
cable
| channels: 16 |
| cable typ: PolyWIRE, Ø 0.22 mm², high flexible studio multicore, XLPE insulation (cross-linked PE) |
| jacket: PVC, soft, matt |
| fanout connectors: 16x male - sparkling bronze metallic shell, silver-plated contacts |
| fanout length: 0.4 m |
Caracteristici
| channels | 16 |
| XLR inputs | 16 |
| XLR outputs | 0 |
| length | 30 m |
