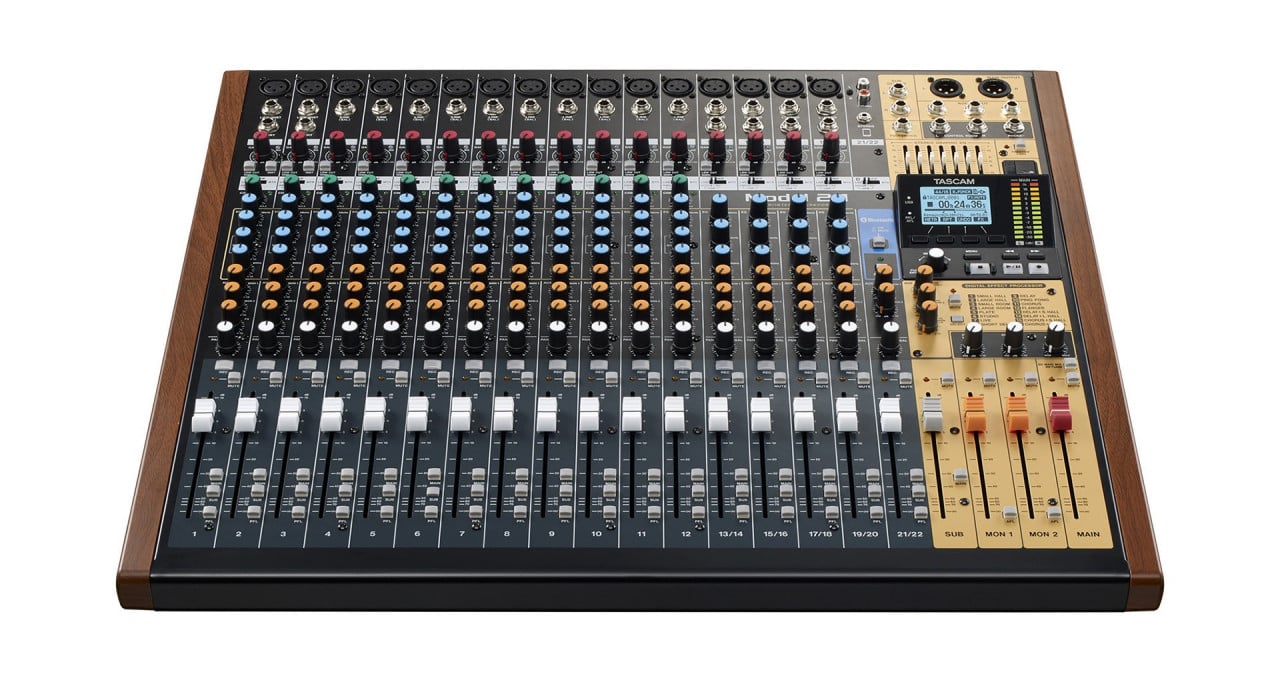

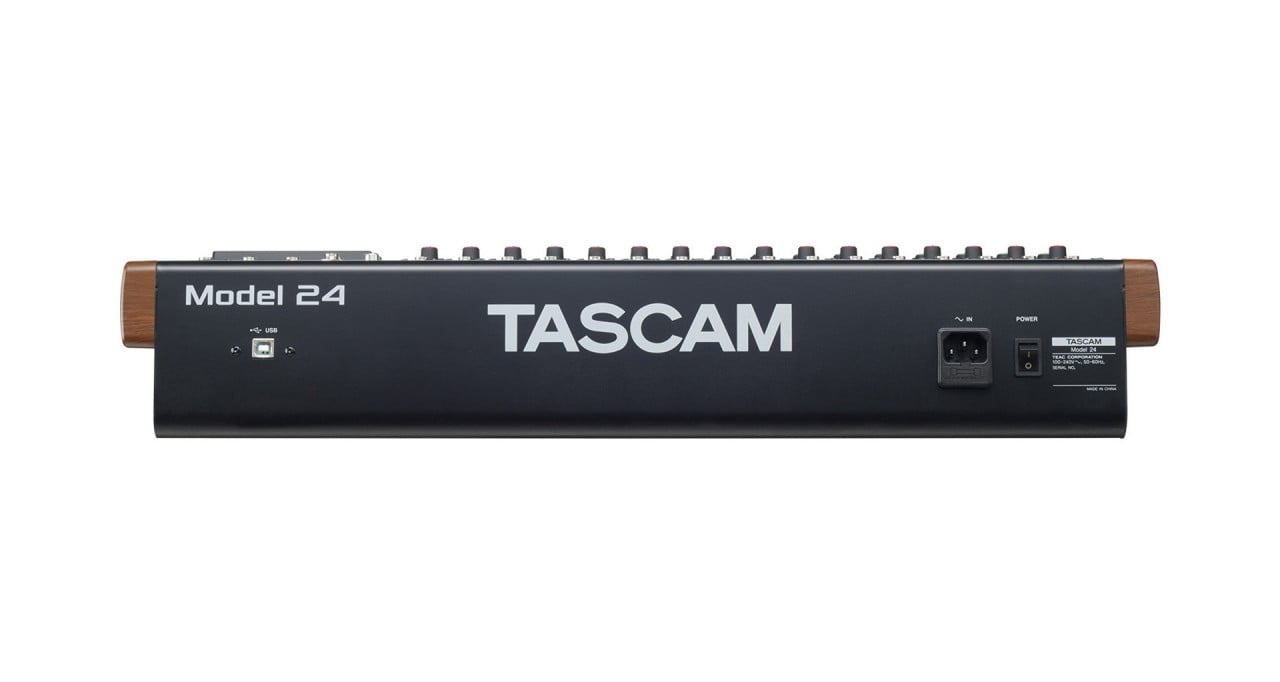

Tascam Model 24

Model 24 is an analogue mixer with 24 channels, ideal for music production and also functions as a USB audio interface.

Storage

• SD (512 MB – 2 GB)
• SDHC (4–32 GB)
• SDXC (64–512 GB)

• File system: FAT16 (SD), FAT32 (SDHC), exFAT (SDXC)
• Recording format: WAV (BWF, max 2 GB)
• Playback formats: WAV
• Sampling frequency: 44.1 kHz, 48 kHz
• Audio resolution: 16 bits, 24 bits
• Recording channels: 24 max. (22 + stereo mix)

Audio Inputs and Outputs

• Microphone inputs (CH 1–12, 13/14–19/20)
• XLR-3-31, balanced
• Nominal level: -8 dBu
• Maximum level: +10 dBu
• Minimum level: -58 dBu
• Gain range: 0-50 dB
• Impedance: 1.8 kΩ

Line Inputs (CH 1–20): 6.3 mm TRS Jack, balanced

• Nominal level: +4 dBu
• Maximum level: +22 dBu
• Gain range: -10 dB to +40 dB (CH 1–6)
• Impedance: 22 kΩ

Inserts (CH 1–2)

• 6.3 mm TRS Jack
• Nominal level: 0 dBu
• Maximum level: +18 dBu
• Impedance: 5 kΩ

Stereo Inputs (CH 21-22)

• RCA, Unbalanced
• Maximum level: +8 dBV
• Nominal level: -10 dBV
• Impedance: 10 kΩ

Main Output

• XLR-3-32, balanced
• Nominal level: +4 dBu
• Maximum level: +22 dBu
• Impedance: 200 Ω

SUB, MONITOR, FX, CONTROL ROOM Outputs

• 6.3 mm TRS, balanced
• Nominal level: -2 dBu
• Maximum level: +16 dBu
• Impedance: 100 Ω
• Headphone output: 6.3 mm Jack
• Maximum power: 80 mW + 80 mW (at 32 Ω)

USB Specifications

• Connection: USB Type C
• Transfer format: USB 2.0 high speed

USB Audio Specifications

• Sampling rate: 44.1 kHz, 48 kHz
• Audio resolution: 16 bits / 24 bits
• Inputs: 12 audio channels
• Outputs: 10 audio channels

Channel EQ

• Low Cut: 100 Hz, –12 dB/Oct.
• High Cut: 12 kHz, ±15 dB
• Mid Cut: Variable 100 Hz - 8 kHz, ±15 dB (Mono) / Fixed 600 Hz, ±15 dB (Stereo)

Graphic EQ

• Frequencies: 125/250/500/1k/2k/4k/8k (Hz)
• Gain: ±15 dB

Audio Performance

• Output Noise: –100 dBu
• EIN: –128 dBu
• THD+N
• Frequency response: 20 Hz - 30 kHz Analog, 20 Hz - 20 kHz Digital
• Crosstalk: -80dB

Maximum Gain

• 74 dB (MIC - MAIN OUT)
• 50 dB (MIC - INSERT OUT)
• 74 dB (MIC - SUB OUT)
• 79 dB (MIC - CR OUT)
• 75 dB (MIC - MONITOR OUT)
• 75 dB (MIC - FX OUT)
• 24 dB (USB/SD - MAIN OUT)

• Power supply: AC 100–240 V, 50/60 Hz
• Power consumption: 52 W
• Dimensions: 580 mm × 513 mm × 117 mm
• Weight: 10.2 kg
• Operating temperature range: 5–35 °C
• Included accessories: Power cable, User manual, TASCAM ID recording guide
