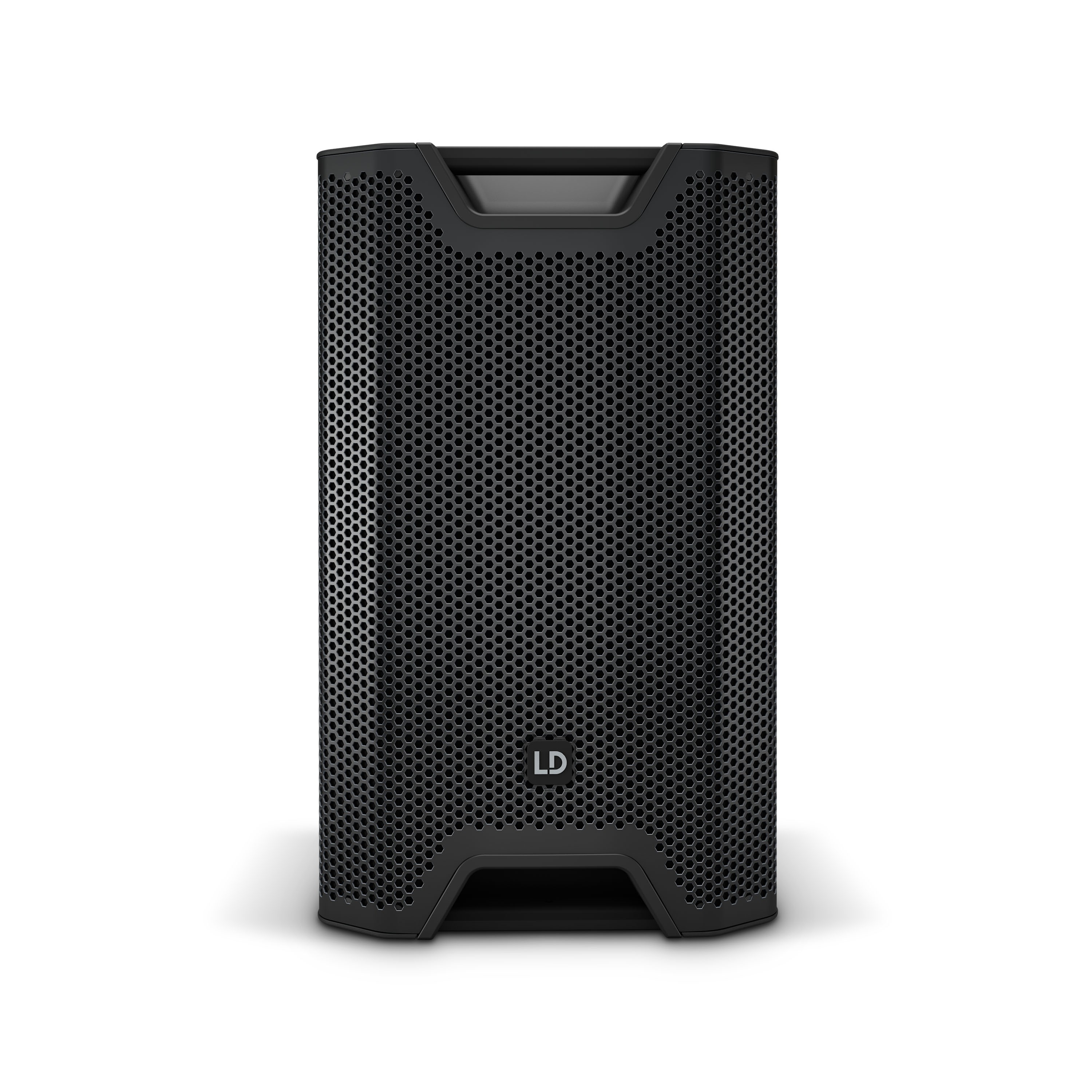

LD Systems ICOA 12A BT


Active Coaxial Speaker

  • 12" low-frequency driver and 1" high-frequency driver for excellent sound quality.
  • class D amplification delivering 1200W max / 300W RMS for powerful performance.
  • dynX DSP with 4 presets, 3-band EQ, and delay function for versatile sound control.
  • integrated Bluetooth module for wireless audio streaming.
  • robust polypropylene cabinet with bass-reflex design for enhanced bass response.
LD Systems
41761
In stock and deliverable.
Central warehouse: 3
Add to cart
2163 points of loyalty
Shipping free
Warranty 24 months
Returns 14 days

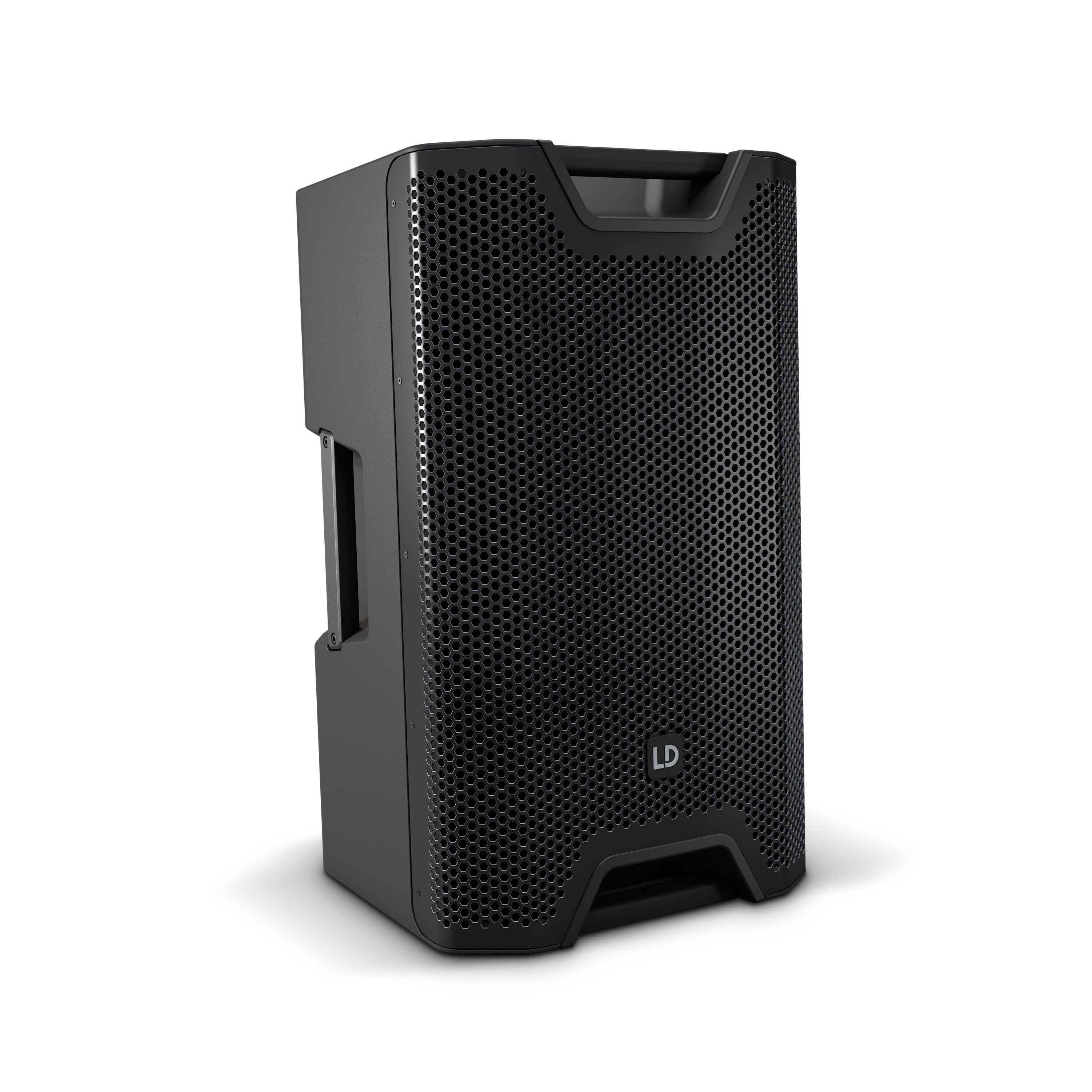

LD Systems ICOA 12A BT, an active wideband speaker that impresses with excellent sound, even at low frequencies. The ICOA 12A is very versatile, flexible, and suitable for a multitude of applications thanks to the extended coaxial design with a rotatable CD BEM horn and precisely calibrated DynX DSP. The BT version features an integrated Bluetooth reception module.

  • 12" / 304.8 mm low-frequency driver
  • 1" / 25.4 mm high-frequency driver, 1" voice coil

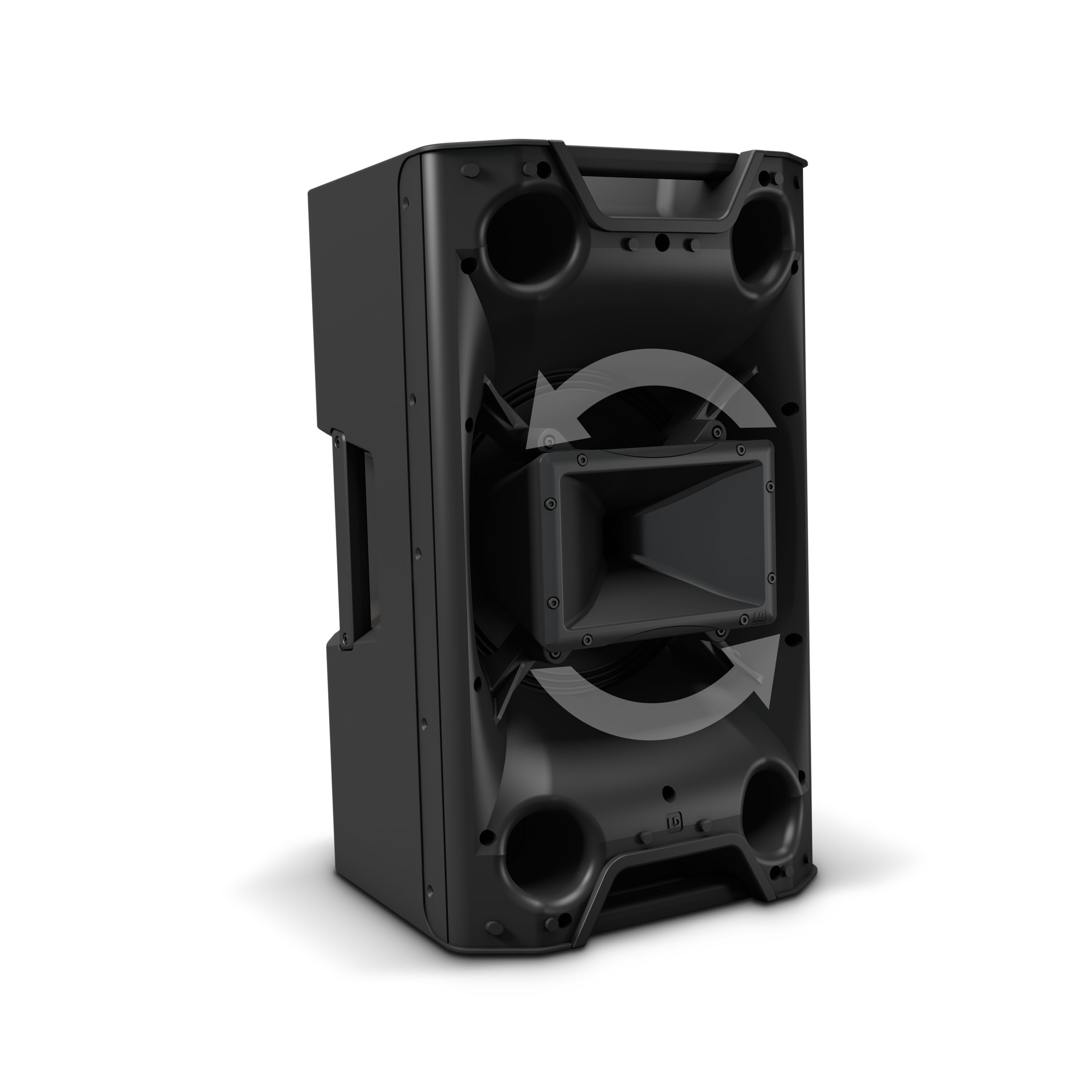

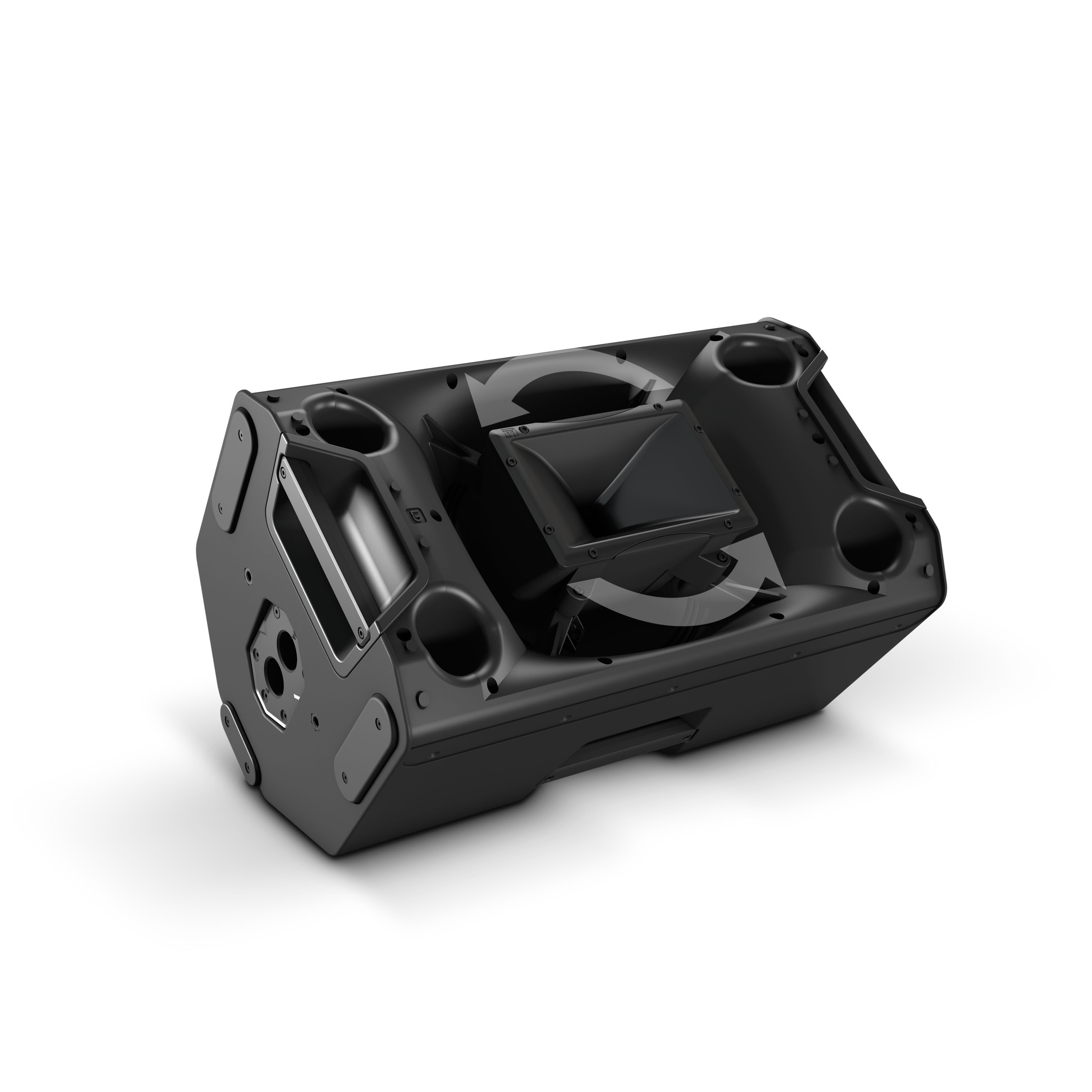

  • Rotatable BEM horn
  • Coverage H x V: 90° x 50°
  • Class D amplification: 1200W max / 300W RMS
  • DynX DSP with 4 selectable presets, 3-band EQ, and delay function
  • Frequency range: 50 Hz - 20 kHz
  • Crossover frequency: 2 kHz
  • Maximum sound pressure level: 126 dB SPL
  • Protection circuits: multiband limiter, overvoltage, overcurrent, thermal

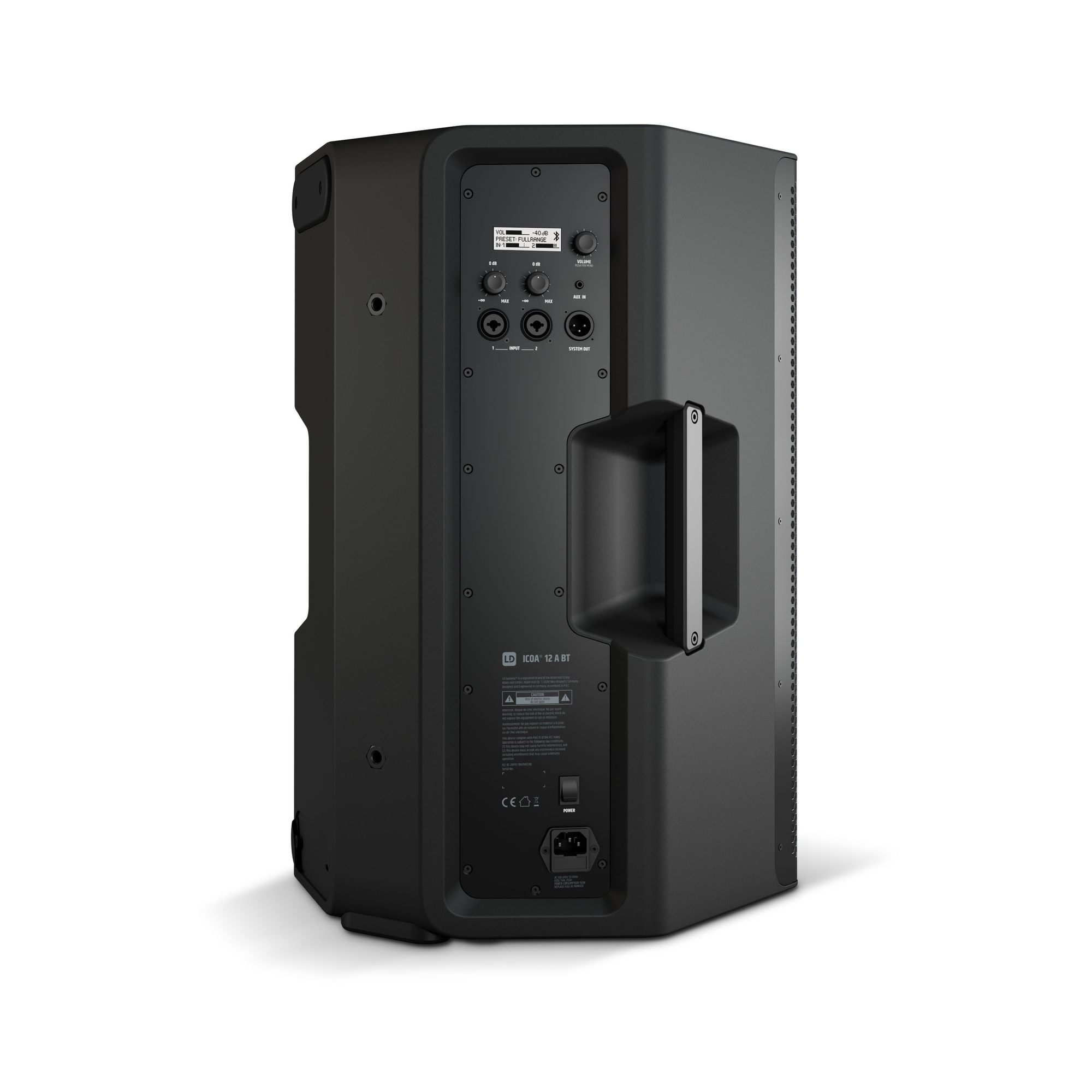

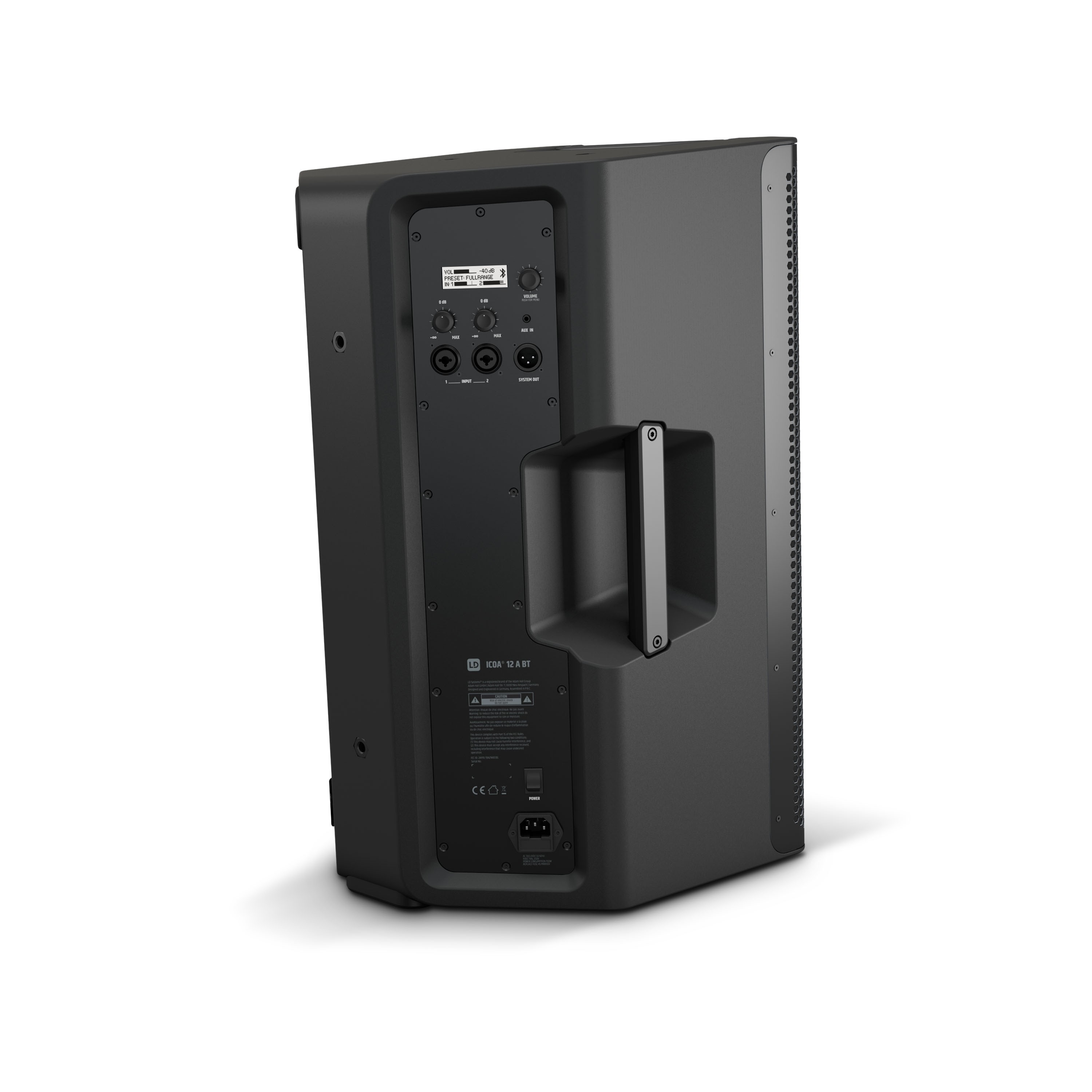

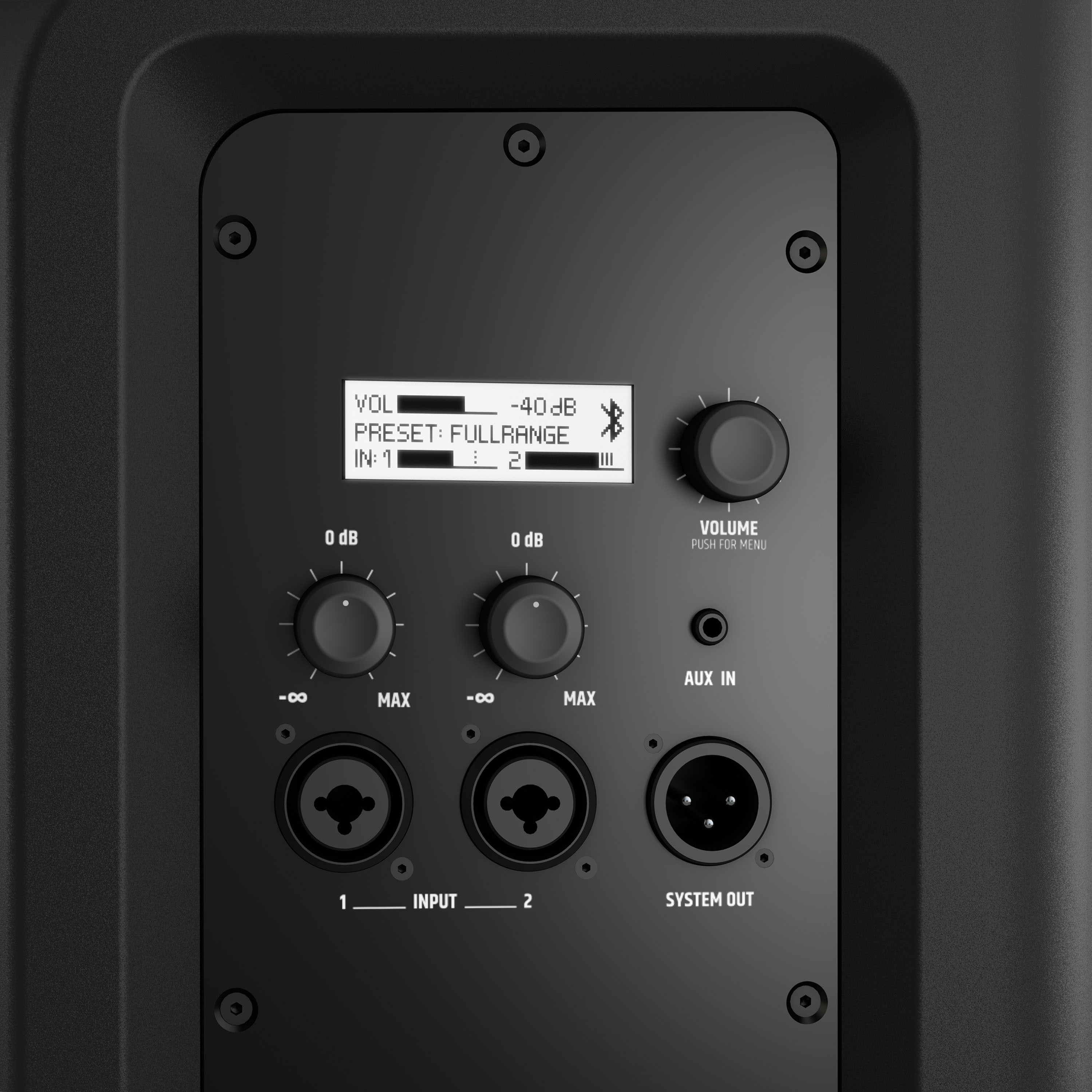

  • Controls: 2 x gain, rotary encoder and push button for DSP settings
  • Inputs/Outputs:
    • 2 x balanced mic/line inputs XLR/Jack combo
    • 1 x auxiliary input 3.5 mm Jack
    • 1 x XLR output
  • Polypropylene cabinet, bass-reflex construction

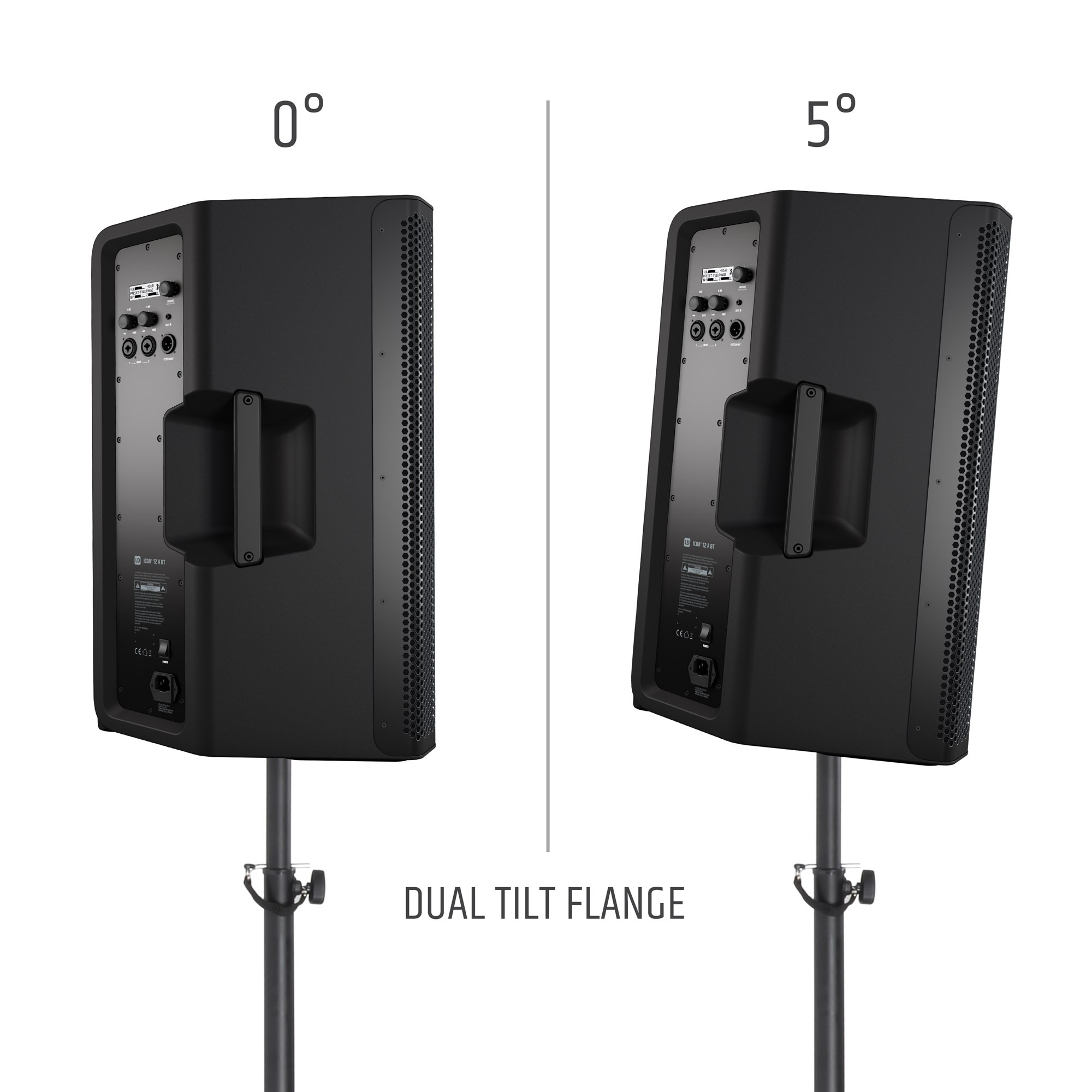

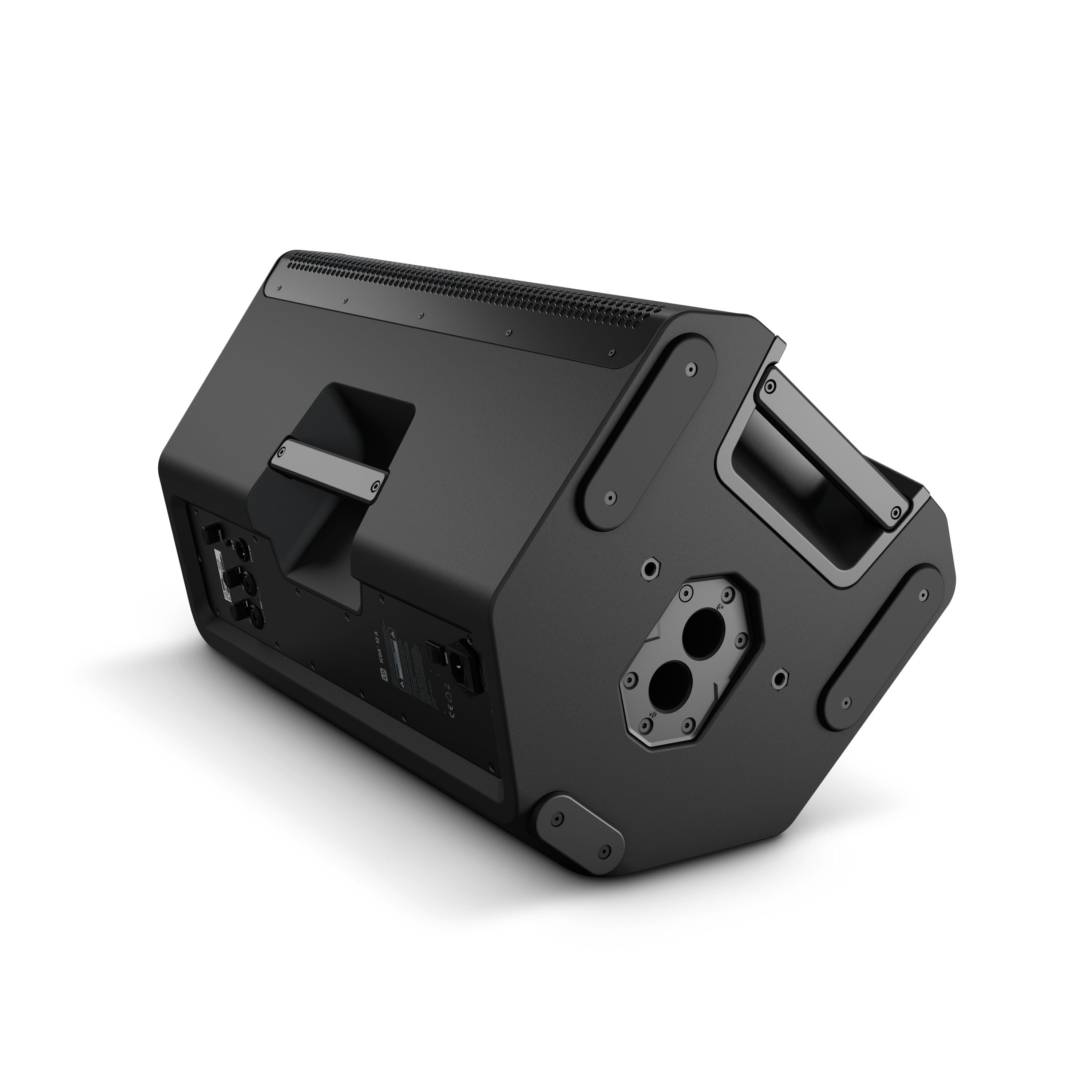

  • 2 x stand mounts with a diameter of 36 mm: tilt of 5° and 0°

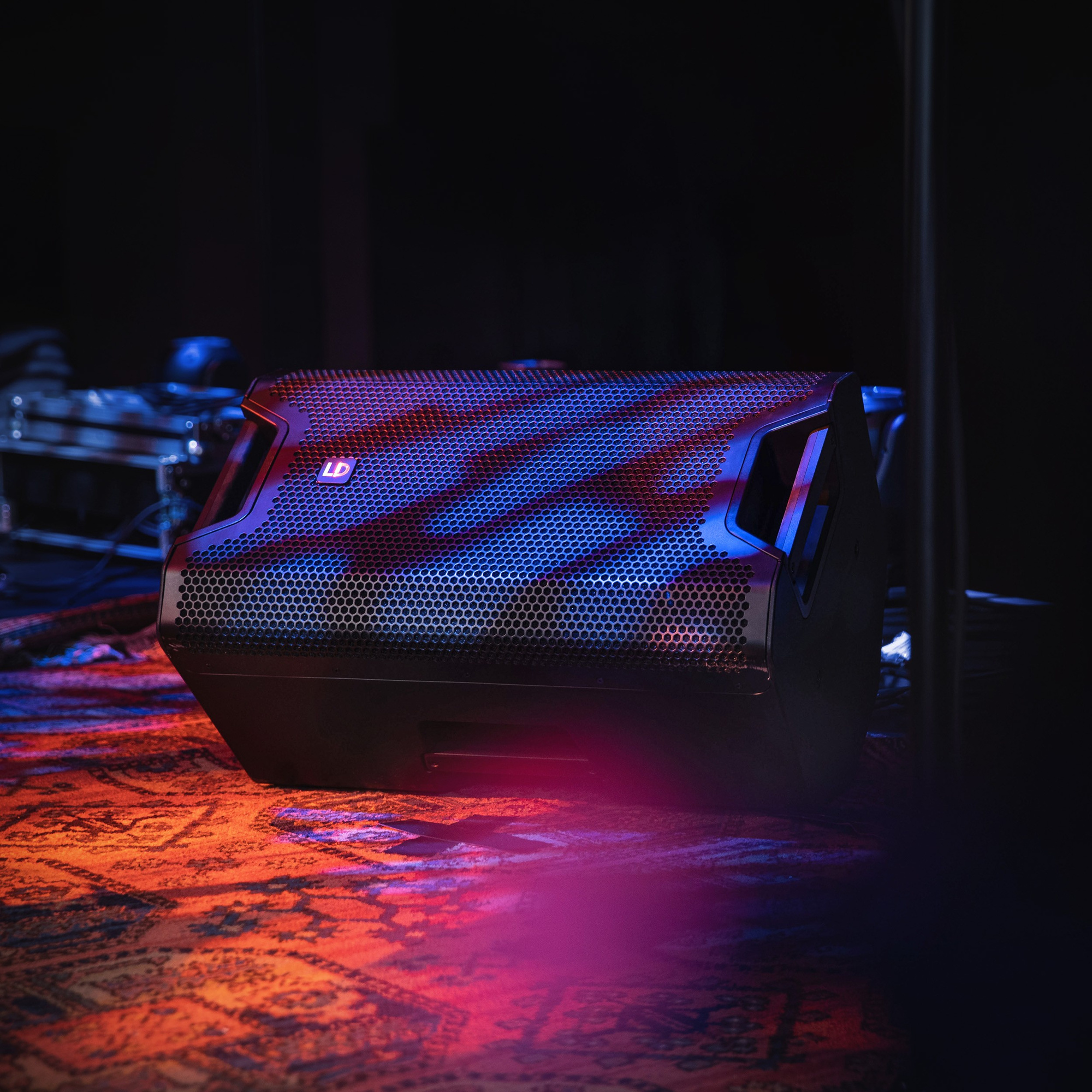

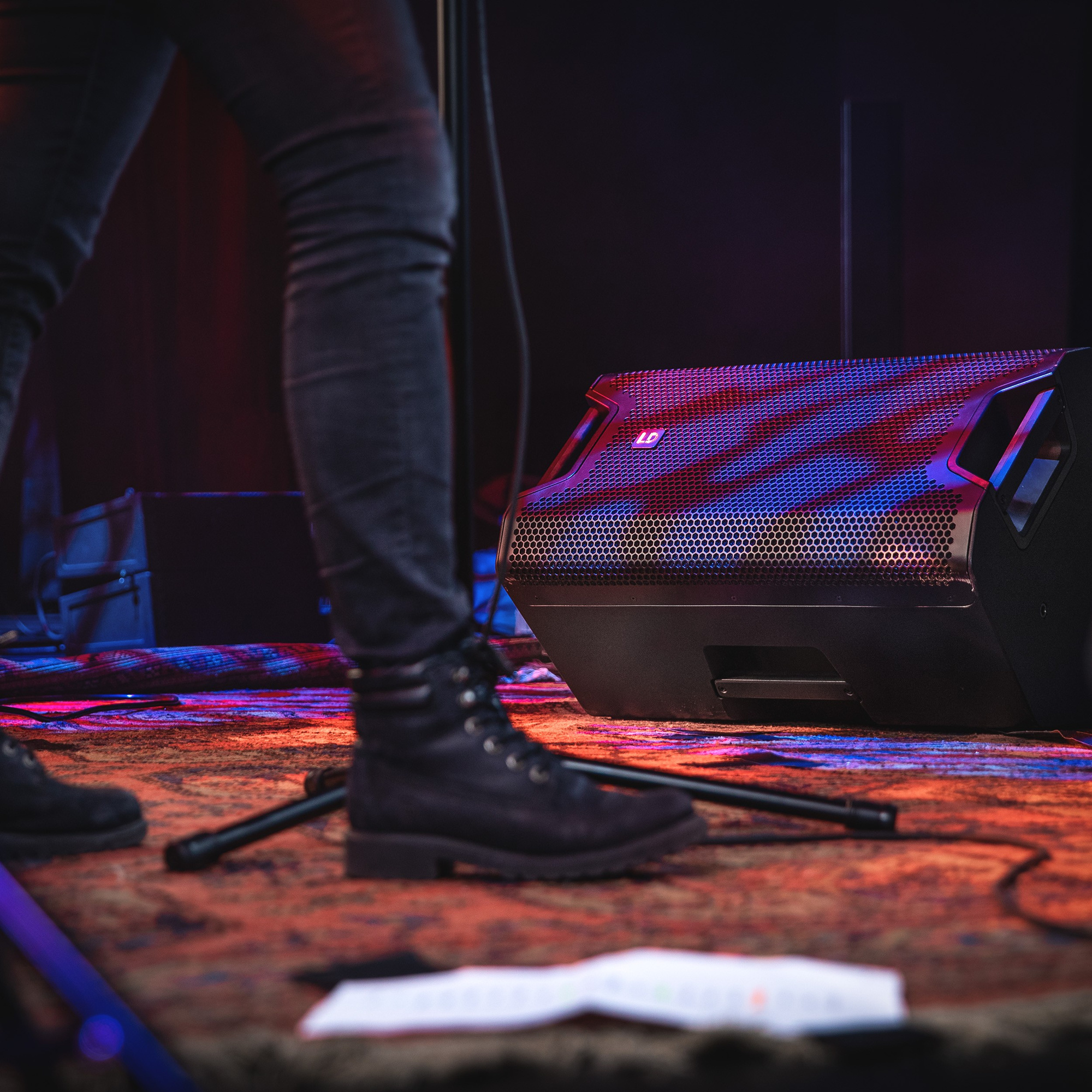

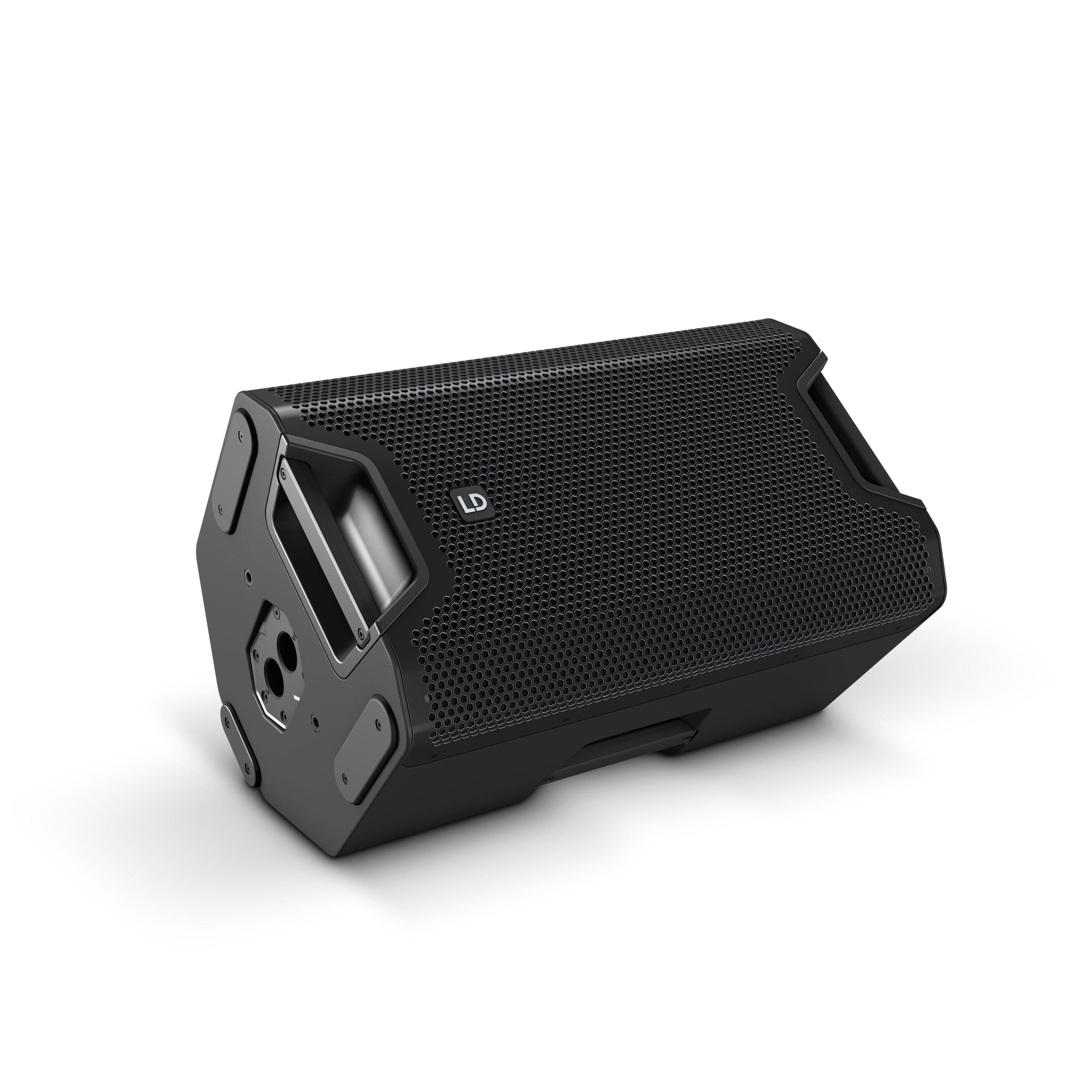

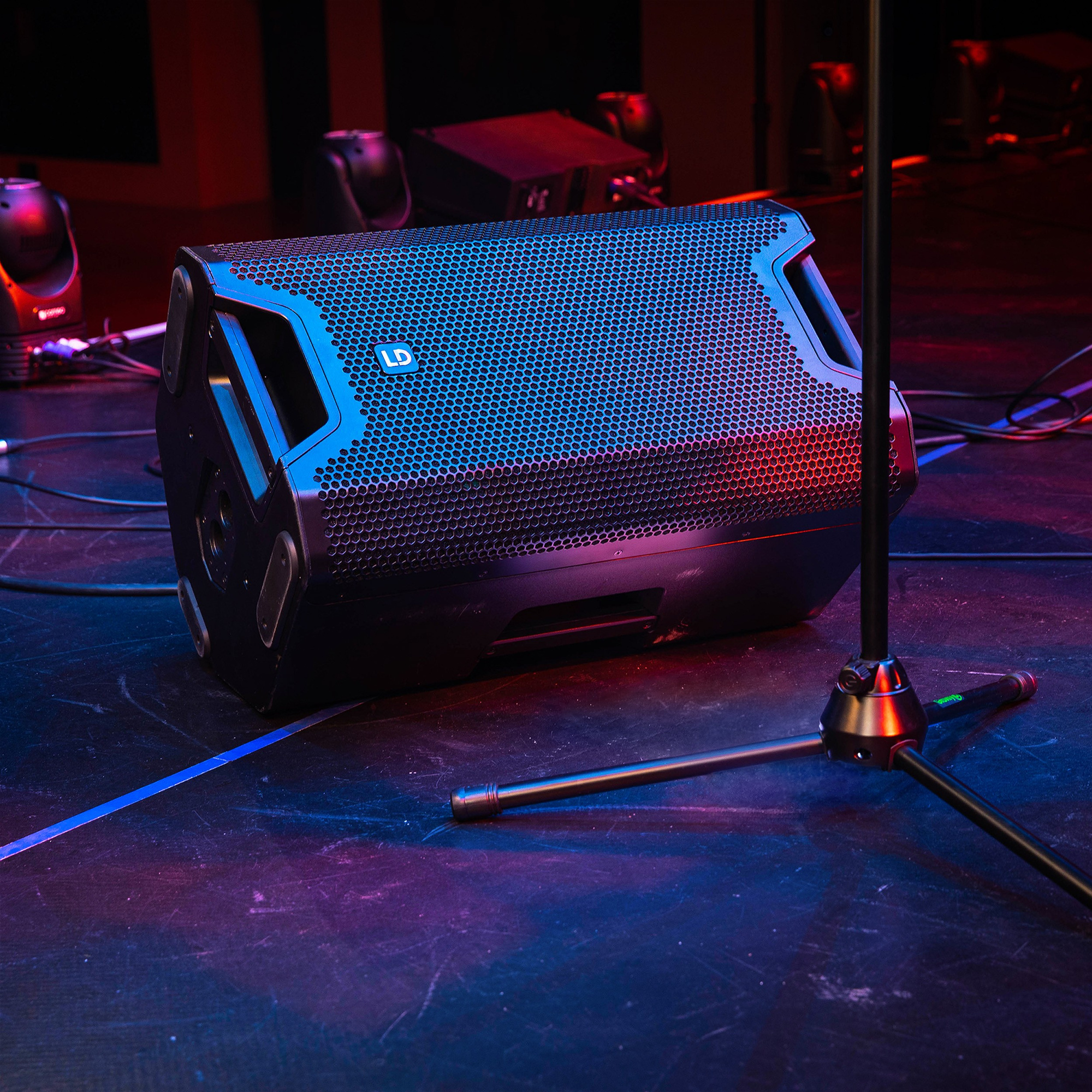

  • Monitoring angle: 55°
  • Dimensions: 375 x 635 x 396 mm
  • Weight: 19.95 kg

Product code: LDICOA12ABT

Unit of sale: piece

Specifications:
Amplification - continuous power: 300 W
Mid-bass speaker: 12"
High speaker: 1"
Lower frequency limit (Hz): 50 Hz
Upper limit high frequencies (kHz): 20 kHz
Maximum SPL (dB): 126 dB
technology: Bluetooth
Enclosure: Plastic
